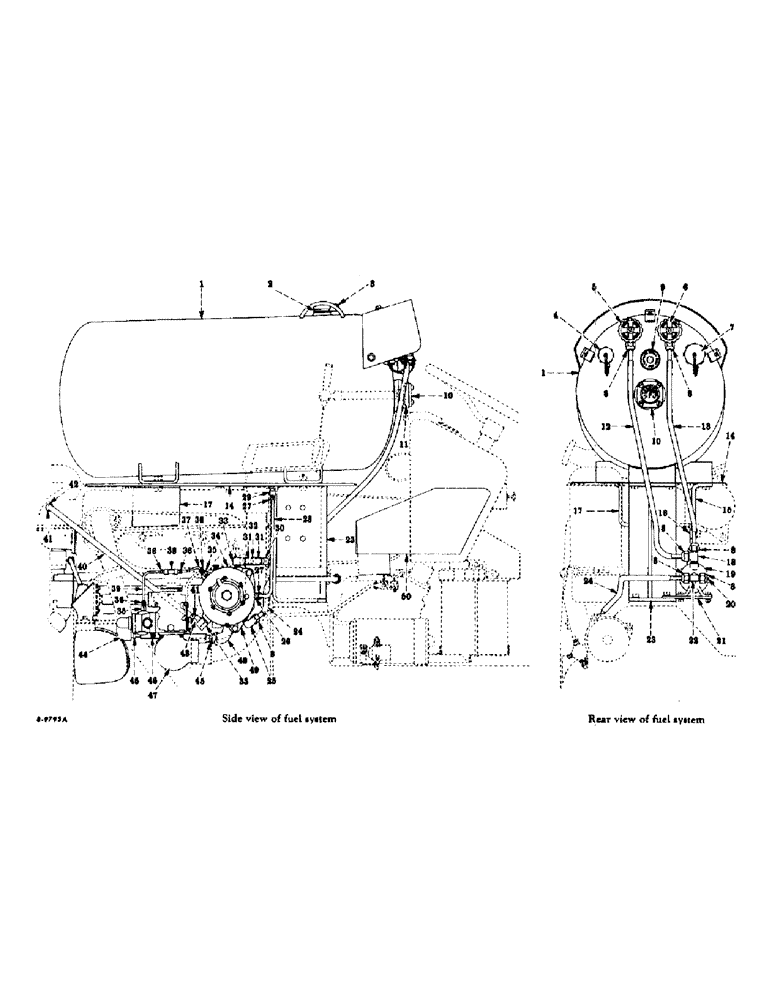

Запчасти Case IH 300 (192) - CHASSIS, FUEL SYSTEM, FOR TRACTORS EQUIPPED WITH L.P. GAS BURNING ENGINE (12) - CHASSIS

1

365788R91

TANK, fuel w/valves, assembly, Composed Of

1шт.

363692R1

CAP

1шт.

357068R91

CAGE

1шт.

365790R91

CAGE

1шт.

NSS

NOT SOLD SEPARAT

TANK

1шт.

357064R92

VALVE

1шт.

109850R91

VALVE

2шт.

363687R91

VALVE

1шт.

363689R91

VALVE

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

4шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

496-21047

WASHER

plain, 15/32" ID x 59/64" OD x No. 16 ga.

4шт.

2

363689R91

VALVE, relief (Selwyn-Pacific Co.) (Not illustrated) (Optional with 363690R91)

1шт.

2

363690R91

VALVE, relief (Bastian-Blessing Co.) (Optional with 363689R91)

1шт.

3

363692R1

CAP, relief valve rain w/chain and wire (Not illustrated) (Used with valve, 363689R91)

1шт.

3

368363R1

CAP, relief valve rain (Rubber) (Used with valve, 363689R91)

1шт.

4

357064R92

VALVE, vapor and excess flow, assembly (Selwyn-Pacific Co.) (Optional with 109567R91) (For components see list of parts under details of "Vapor And Excess Flow Valve")

1шт.

4

109567R91

VALVE, vapor and excess flow (Bastian-Blessing Co.) (Optional with 357064R92)

1шт.

5

109850R91

VALVE, vapor service w/hand wheel and excess flow check (Bastian-Blessing Co.) (For components see list of parts under details of "Service Valve") (Will work for 357069R91)

1шт.

6

109850R91

VALVE, liquid service, w/hand wheel and excess flow check (Bastian-Blessing Co.) (For components see list of parts under details of "Service Valve") (Will work for 357069R91)

1шт.

7

363687R91

VALVE, filler w/double back check and chain, 369014R91 and washer, 359825R1) (Selwyn-Pacific Co.) (Optional with 363688R91)

1шт.

7

363688R91

VALVE, filler w/double back check and chain, 369045R91, disc and retainer, 369047R91 and washer, 359825R1 (Bastian-Blessing Co.) (Optional with 363687R91)

1шт.

8

357078R1

NUT, fuel line (Optional with 361533R1)

7шт.

8

361533R1

NUT, fuel line (Optional with 357078R1)

7шт.

9

363693R91

CAGE, fixed, liquid level w/clip and dial (Bastian-Blessing Co.) (Optional with 357068R91)

1шт.

9

357068R91

CAGE, fixed, liquid level w/clip, dial and valve, 359830R91 (Not illustrated) (Selwyn-Pacific Co.) (Optional with 363693R91)

1шт.

9

359830R91

VALVE AND DISC, outage (Not illustrated) (Used with valve, 357068R91)

1шт.

10

367621R91

CAGE, liquid level magnetic, assembly (Rochester Mfg. Co.) (Optional with 365790R91), Composed Of

1шт.

369381R91

DIAL CHAMBER

1шт.

364263R1

GASKET

1шт.

164314

SCREW

2шт.

225593

SCREW

2шт.

10

365790R91

GAGE, liquid level magnetic w/gasket, 364263R1 and four screws, 225594 (J.Y. Taylor Co.) (Optional with 367621R91)

1шт.

225594

SCREW

machine, slotted-fil-hd., cd-pltd., 5/16-24NF x 1"

4шт.

11

364263R1

GASKET, liquid level magnetic gage

1шт.

12

365816R11

PIPE, fuel vapor valve to filter w/loom and two nuts, 357078R1

1шт.

13

365815R11

PIPE, fuel liquid valve to filter w/loom and two nuts, 357078R1

1шт.

14

365792R11

BAFFLE, heat w/nut

1шт.

15

365794R1

BRACKET, fuel tank front RH mounting

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-3/8"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

16

43753D

WASHER,11.51mm ID x 22.23mm OD x 6.35mm Thk

SPACER, fuel tank, RH front bracket

2шт.

17

365793R1

BRACKET, fuel tank front LH mounting (On cylinder head attaching stud)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

18

364598R1

TEE, flared tube, fuel pipe

1шт.

19

64147D

FILTER, fuel, assembly (For components see list of parts under details of "Fuel Filter")

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

357495R1

CAP, fuel pipe tee

1шт.

21

365799R1

BRACKET, fuel filter mounting

1шт.

179862

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/2"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

22

364602R1

TEE, flared tube, fuel pipe

1шт.

23

365795R11

BRACKET, fuel tank rear

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

24

365800R11

PIPE, fuel filter to regulator w/loom and two nuts, 357078R1

1шт.

25

109563R1

ELBOW

fuel filter to regulator pipe

1шт.

26

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

male pipe, hi-duty tube fitting, brs., 90 degrees 5/16" O.D. tubing

1шт.

26

24847HX

ELBOW, 24847H w/nut, 29899D

1шт.

27

222-503

TUBE NUT,1/2"-20

NUT, hi-duty tube fitting, brs., 5/16" O.D. tubing

2шт.

28

365784R11

PIPE, balance, regulator to air cleaner w/two nuts, 29899D

1шт.

29

366117R11

CONNECTOR, 366117R1 w/nut, 29899D

1шт.

29

366117R1

CONNECTOR, balance pipe

1шт.

30

120063

BOLT,Hex, M8 x 80, 8.8

street, 90 degrees, M.I. 3/8"

1шт.

31

364670R1

PIPE, cylinder head to regulator water hose

2шт.

32

364669R1

HOSE, cylinder head to regulator water

1шт.

39093H

HOSE CLAMP

CLAMP, cylinder head to regulator water hose

2шт.

33

364264R1

ELBOW, regulator water pipe

2шт.

34

357051R91

REGULATOR, fuel, assembly (For components see list of parts under details of "Fuel Regulator")

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

35

36521D

CONNECTOR, male, hi-duty tube fitting brs., 3/16" O.D. tubing

2шт.

35

36521DX

CONNECTOR, 36521D w/nut, 25038HA

2шт.

36

25038HA

TUBE NUT,3/8"-24

NUT, hi-duty tube fitting, brs., 3/16" O.D. tubing

4шт.

37

363790R11

PIPE, idle w/two nuts, 25038HA

1шт.

38

80020HA

TEE, hi-duty tube fitting, brs., 3/16" O.D. tubing

1шт.

39

363789R11

PIPE, economizer, w/two nuts, 25038HA

1шт.

40

363791R11

PIPE, water, w/two nuts, 37288H

1шт.

41

222-506

TUBE NUT,11/16"-16

NUT, hi-duty tube fitting, brs., 1/2" O.D. tubing

2шт.

42

35653H

CONNECTOR, 37287H w/nut, 37288H

1шт.

42

37287H

CONNECTOR, male, hi-duty tube fitting, brs., 1/2" O.D. tubing

1шт.

43

40876D

ELBOW, male pipe, hi-duty tube fitting, brs., 90 degrees, 1/2" O.D. tubing 90º x 3/8" NPT x 11/16"-16

1шт.

43

40876DX

ELBOW

40876D w/nut, 37288H

1шт.

44

363796R1

BEND, fuel line return

1шт.

45

357484R1

FITTING, regulator to carburetor fuel line hose

2шт.

46

364668R1

HOSE, fuel line, Serial Range: regulator-carburetor

1шт.

375061R91

CLAMP

fuel line hose

2шт.

47

368694R91

CARBURETOR, assembly (For components see list of parts under details of "Carburetor") (Will work for 275035R91)

1шт.

103026

NUT,3/8"-24, G5

2шт.

12215D

STUD

carburetor

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

48

108686

ELBOW,90 Degree, 1/2" NPT Street

street, 90 degrees, M.I. 1/2"

1шт.

49

363794R11

BRACKET, fuel regulator w/four nuts

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

50

362050R93

SUPPORT, instrument panel and fuel tank rear w/six nut, 363885R91

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, instrument panel housing fastener

6шт.

179858

SUPPORT

SCREW, cap, hex-hd., 7/16-14NC x 1"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.
