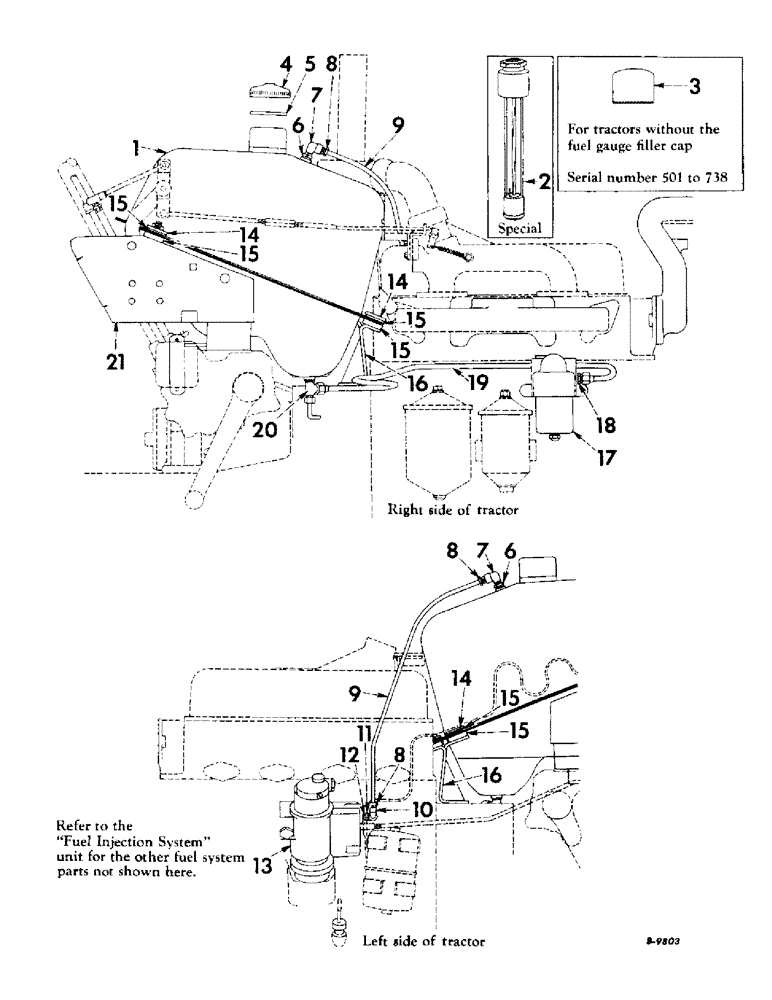

Запчасти Case IH 300 (190) - CHASSIS, FUEL SYSTEM, FOR TRACTORS EQUIPPED WITH DIESEL ENGINE (12) - CHASSIS

1

366760R92

TANK, fuel w/cap, and plug

1шт.

17055R1

NUT, lock, hex., zn-pltd., 3/8-24NF (Optional with 54738R1)

4шт.

54738R1

LOCK NUT,3/8"-24, GC

NUT, lock, hex., cd-pltd., 3/8-24NF (Optional with 17055R1)

4шт.

181371

BOLT

SCREW, cap, hex-hd., 3/8-24NF x 1-3/8" (LH side)

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/2" (RH side)

1шт.

2

365495R92

CAP, fuel gauge filler w/gasket, 23977DB (Special)

1шт.

3

361910R91

PLUG

CAP, fuel tank filler w/gasket, 23977DB (For tractors without the fuel gauge filler cap (S/N, Serial Range: 501-738)

1шт.

4

23955DC

CAP, fuel tank filler w/gasket, 23977DB (For tractors without the fuel gauge filler cap) (S/N 739 up)

1шт.

5

23977DB

GASKET

fuel tank filler cap

1шт.

6

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

BUSHING, pipe, reducing, brs., 3/8 x 1/4"

1шт.

7

252374R11

ELBOW, fuel return pipe w/nut, 29898D

1шт.

8

222-502

TUBE NUT,7/16"-24

NUT, Hi-Duty tube fitting, brs., 1/4" OD tubing

2шт.

9

366768R11

PIPE, fuel return w/two nuts, 29898D

1шт.

10

30402D

ELBOW,90 Degree x 1/8" NPT x 7/16"-24

male pipe, hi-duty tube fitting, brs., 90 degrees, 1/4" OD tubing

1шт.

10

30402DX

ELBOW

30402D w/nut, 29898D

1шт.

11

121761

TEE,1/8" NPT, Fem

pipe, brs., 1/8"

1шт.

12

14868

CLAMP

NIPPLE, pipe, brs., 1/8"

1шт.

13

PUMP, fuel injection, assembly (Refer to the "Fuel Injection System" Unit)

1шт.

14

362321R1

RETAINER, fuel tank insulating pad

4шт.

15

60671D

INSULATOR BLOCK

PAD, fuel tank insulating

8шт.

16

362048R21

SUPPORT, fuel tank front

1шт.

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 7/8"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

17

FILTER, fuel, primary, assembly (Refer to the "Fuel Injection System")

1шт.

18

22507D

CONNECTOR, fuel tank to water trap pipe

1шт.

19

366766R11

PIPE, fuel tank to water trap w/two nipples and two nuts

1шт.

20

65524D

VALVE, needle, fuel tank

1шт.

21

362050R93

SUPPORT, instrument panel housing and fuel tank, rear w/six nuts, 363885R91

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, instrument panel

6шт.

179858

SUPPORT

SCREW, cap, hex-hd., 7/16-14NC x 1"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.
