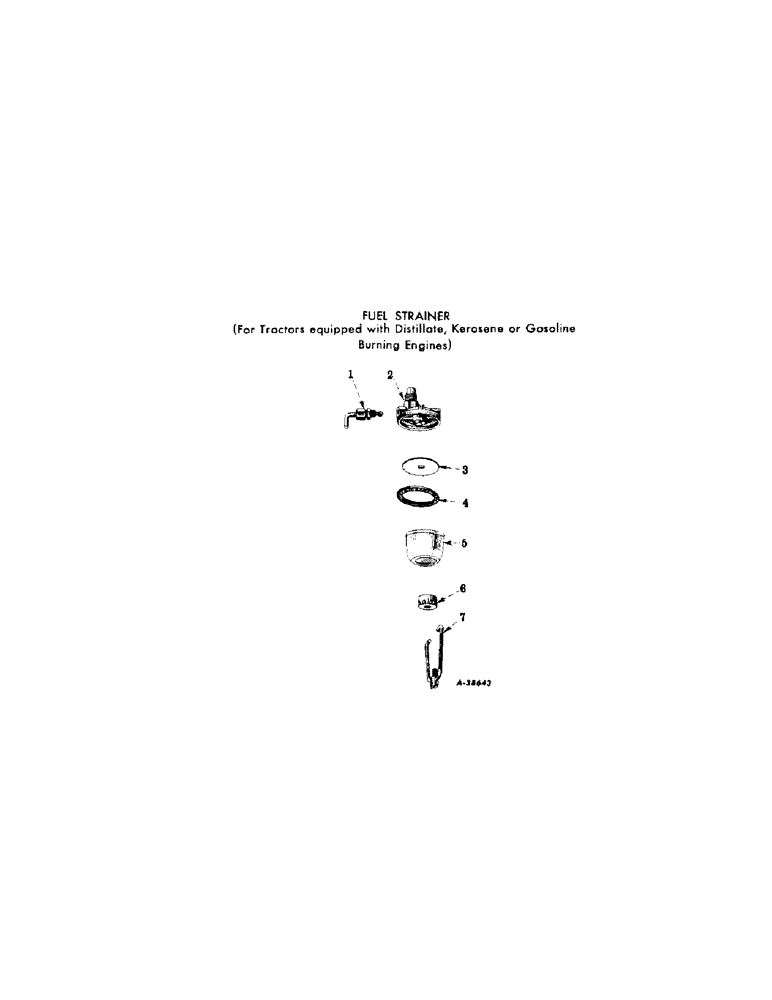

Запчасти Case IH 300 (189) - CHASSIS, FUEL STRAINER, FOR TRACTORS EQUIPPED W/DISTILLATE, KEROSENE OR GASOLINE BURNING ENGINES (12) - CHASSIS

362040R91

STRAINER ASSY.

STRAINER, fuel assembly (For gasoline burning engine tractors without auxiliary fuel tank) (Column A)

1шт.

366134R91

STRAINER, fuel assembly (For distillate or kerosene burning engine tractors also gasoline burning engine tractors equipped with auxiliary fuel tank) (Column B)

1шт.

1

259403R91

COCK

STEM, w/two nuts and packing

1шт.

2

362205R91

BODY

strainer, w/baffle [A]

1шт.

2

366287R91

BODY, strainer, w/baffle (Not illustrated) [B]

1шт.

3

49923D

FILTER SCREEN

SCREEN, strainer

1шт.

4

360679R1

GASKET

strainer

1шт.

5

357958R1

BOWL

strainer

1шт.

6

50061D

NUT

strainer

1шт.

7

49947D

COLLAR CLAMP

BAIL, strainer, w/stud

1шт.
