(189[A]) - CHASSIS, FUEL FILTER, FOR TRACTORS EQUIPPED WITH LIQUEFIED PETROLEUM GAS BURNING ENGINES

Запчасти Case IH 300 (189[A]) - CHASSIS, FUEL FILTER, FOR TRACTORS EQUIPPED WITH LIQUEFIED PETROLEUM GAS BURNING ENGINES (12) - CHASSIS

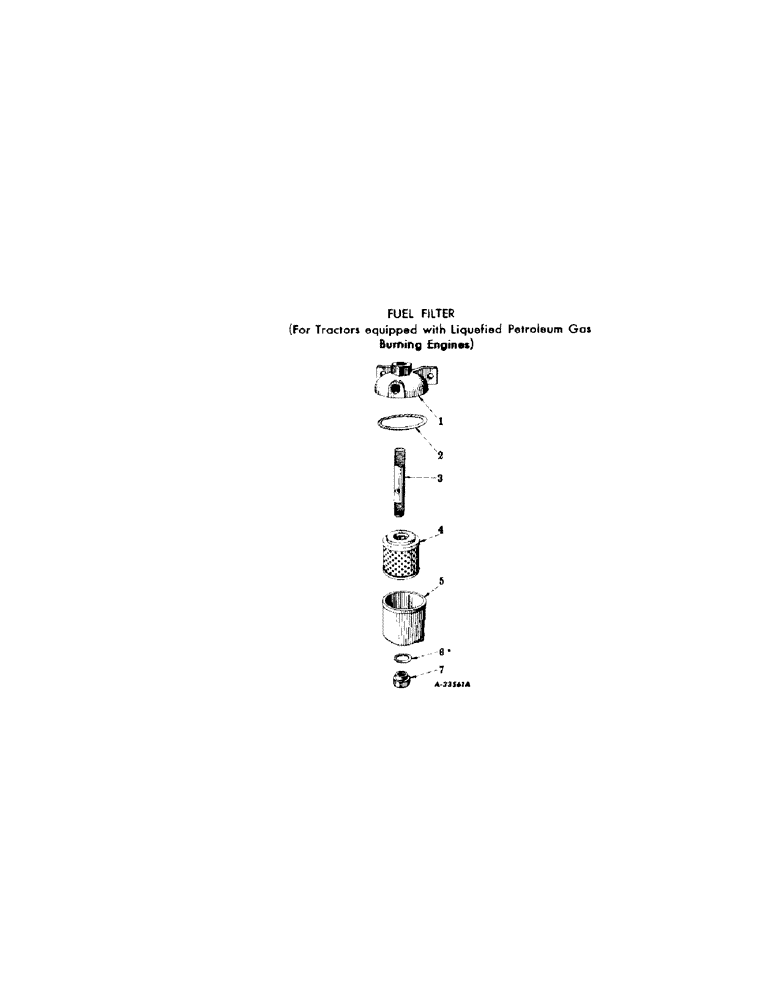

Схема запчастей Case IH 300 - (189[A]) - CHASSIS, FUEL FILTER, FOR TRACTORS EQUIPPED WITH LIQUEFIED PETROLEUM GAS BURNING ENGINES (12) - CHASSIS
2
7
4
3
1
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

64147D

FILTER, fuel, assembly

1шт.

1

64397D

TOP, filter

1шт.

2

64399D

ELEMENT

GASKET, filter top to filter bottom

1шт.

3

64402D

STUD, filter

1шт.

4

64400DB

ELEMENT

filter w/gasket, 64399D and gasket, 64401D

1шт.

5

64398D

BOTTOM, filter

1шт.

6

64401D

ELEMENT

GASKET, filter bowl

1шт.

7

64403D

NUT, filter stud

1шт.
