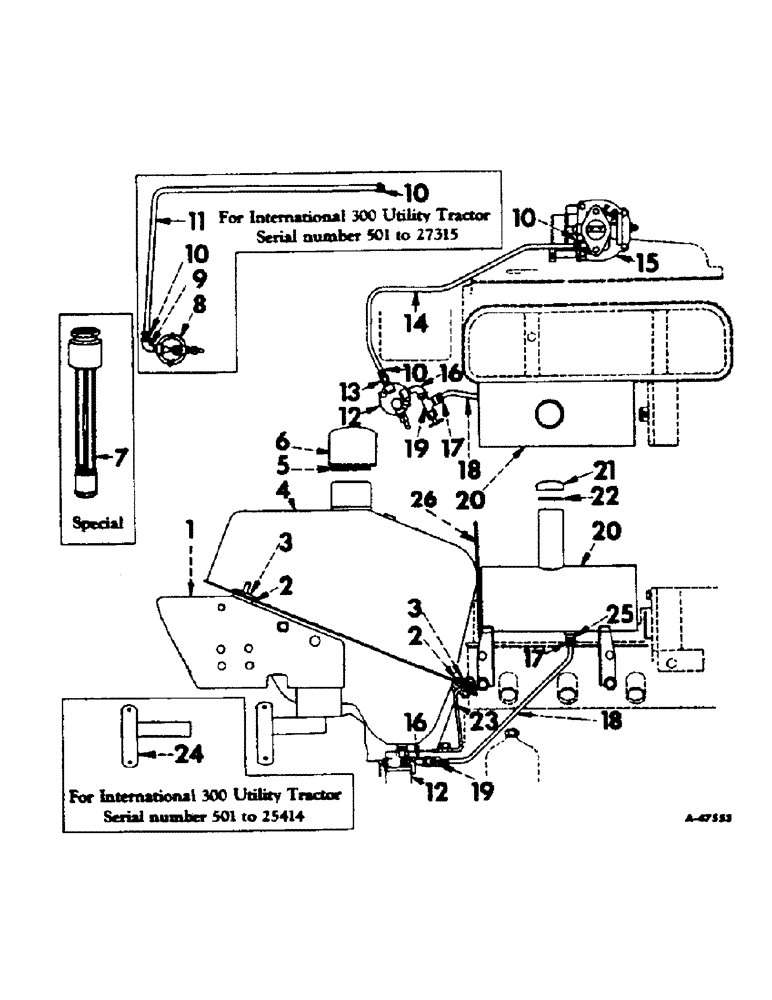

Запчасти Case IH 300 (186) - CHASSIS, FUEL SYSTEM, FOR TRACTORS EQUIPPED WITH DISTILLATE, KEROSENE OR GASOLINE BURNING ENGINES (12) - CHASSIS

1

362050R93

SUPPORT, instrument panel housing and fuel tank, rear, w/six nuts, 363885R91 (For tractors without radiator shutter)

1шт.

1

366193R91

SUPPORT, instrument panel housing and fuel tank, rear, w/six nuts, 363885R91 (Not illustrated) (For tractors equipped with radiator shutter)

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, instrument panel housing fastener

6шт.

179858

SUPPORT

SCREW, cap, hex-hd., 7/16-14NC x 1"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

2

60671D

INSULATOR BLOCK

PAD, fuel tank insulating

8шт.

3

362321R1

RETAINER, fuel tank insulating pad

4шт.

4

366760R92

TANK, fuel, main, w/cap, and plug, 103867 (Will work for 362042R93)

1шт.

17055R1

NUT, lock, hex., zn-pltd., 3/8-24NF (Optional with 54738R1)

4шт.

54738R1

LOCK NUT,3/8"-24, GC

NUT, lock, hex., cd-pltd., 3/8-24NF (Optional with 17055R1)

4шт.

103867

PLUG

pipe, sq-hd., CI, 3/8" (Use to plug fuel return pipe hole)

1шт.

181371

BOLT

SCREW, cap, hex-hd., 3/8-24NF x 1-3/8" (LH side)

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/2" (RH side)

1шт.

5

23977DB

GASKET

fuel tank filler cap

1шт.

6

361910R91

PLUG

CAP, fuel tank filler cap, w/gasket, 23977DB (For tractors without fuel gauge filler cap) (For International 300 Utility Tractor) (S/N for all modesl)

1шт.

7

365495R92

CAP, fuel gauge filler, w/gasket, 23977DB (Special)

1шт.

8

362040R91

STRAINER ASSY.

STRAINER, fuel, assembly (For components see list of parts under details of "Fuel Strainer") (For gasoline burning engine tractors without auxiliary fuel tank) (For International 300 Utility Tractor) (S/N, Serial Range: 501-27315)

1шт.

9

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

male pipe, Hi-Duty tube fitting, 90 degrees, brs., 5/16" OD tubing (For tractors without auxiliary fuel tank) (For International 300 Utility Tractor) (S/N 501 to 27315)

1шт.

9

24847HX

ELBOW, 24847H, w/nut, 29899D (For tractors without auxiliary fuel tank) (For International 300 Utility Tractor) (S/N, Serial Range: 501-27315)

1шт.

10

222-503

TUBE NUT,1/2"-20

NUT, Hi-Duty tube fitting, brs., 5/16" OD tubing

2шт.

11

362056R11

PIPE, fuel strainer to carburetor, w/two nuts, 29899D (For tractors without auxiliary fuel tank) (For International 300 Utility Tractor) (S/N, Serial Range: 501-27315)

1шт.

12

362040R91

STRAINER ASSY.

STRAINER, fuel, assembly (Not illustrated) (For components see list of parts under details of "Fuel Strainer") (For gasoline burning engine tractors without auxiliary fuel tank)

1шт.

12

366134R91

STRAINER, fuel, assembly (For components see list of parts under details of "Fuel Strainer") (See Note A) (Also for gasoline burning engine tractors equipped with auxiliary fuel tank)

1шт.

13

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

CONNECTOR, male pipe, brs., 5/16" OD tubing (For International 300 Utility Tractor) (S/N 27316 up)

1шт.

13

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

CONNECTOR, male pipe, brs., 5/16" OD tubing (For International 350 Utility Tractor) (S/N 501 up)

1шт.

13

35252DX

CONNECTOR, ELEC

CONNECTOR, 35252D, w/nut, 29899D (For International 300 Utility Tractor) (S/N 27316 up)

1шт.

13

35252DX

CONNECTOR, ELEC

CONNECTOR, 35252D, w/nut, 29899D (For International 350 Utility Tractor) (S/N 501 up)

1шт.

14

365567R11

PIPE, fuel strainer to carburetor, w/two nuts, 29899D (For International 300 Utility Tractor) (S/N 27316 up)

1шт.

14

365567R11

PIPE, fuel strainer to carburetor, w/two nuts, 29899D (For International 350 Utility Tractor) (S/N 501 up)

1шт.

15

361525R92

CARBURETOR

assembly (For components see list of parts under details of "Carburetor") (For tractors equipped with gasoline burning engines)

1шт.

15

363741R93

CARBURETOR, assembly (For components see list of parts under details "Carburetor") (See Note A)

1шт.

103026

NUT,3/8"-24, G5

2шт.

12215D

STUD

carburetor

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

37402D

ELBOW, male pipe, Hi-Duty tube fitting, 45 degrees, brs., 5/16" OD tubing (See Note A) (For International 350 Utility Tractor) (S/N, Serial Range: 501-1586)

1шт.

16

37402DX

ELBOW, 37402D, w/nut, 29899D (See Note A) (For International 350 Utility Tractor) (S/N, Serial Range: 501-1586)

1шт.

16

127960

ELBOW

fuel strainer street (See Note A) (For International 350 Utility Tractor) (S/N 1507 up)

1шт.

17

222-503

TUBE NUT,1/2"-20

NUT, Hi-Duty fitting, brs., 5/16" OD tubing (See Note A)

2шт.

18

366116R11

PIPE, gasoline tank to fuel strainer, w/two nuts, 29899D (See Note A) (For International 350 Utility Tractor) (S/N 1587 up)

1шт.

19

55474D

VALVE, gasoline starting tank shut-off, w/nut, 29899D (See Note A) (For International 350 Utility Tractor) (S/N 1587 up)

1шт.

20

366126R91

TANK, gasoline starting, w/cap, 40756D (See Note A)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(See Note A) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See Note A) 3/8"

4шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x No. 16 ga) (On lower screws) (See Note A) 3/8"

2шт.

21

40756D

FILLER CAP

CAP, filler, gasoline starting tank w/gasket, 40752D (See Note A)

1шт.

22

40752D

GASKET

gasoline starting tank filler cap (See Note A)

1шт.

23

362048R21

SUPPORT, fuel tank front

1шт.

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 7/8"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

24

364902R11

BRACKET, voltage regulator mounting (For tractors equipped with power steering) (For International 300 Utility Tractor) (S/N, Serial Range: 501-25414)

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

119932

BUSHING, reducing pipe, plain, MI, 3/8" x 1/8" (See Note A) (For International 350 Utility Tractor) (S/N 1587 up)

1шт.

26

368081R1

DEFLECTOR, heat

1шт.
