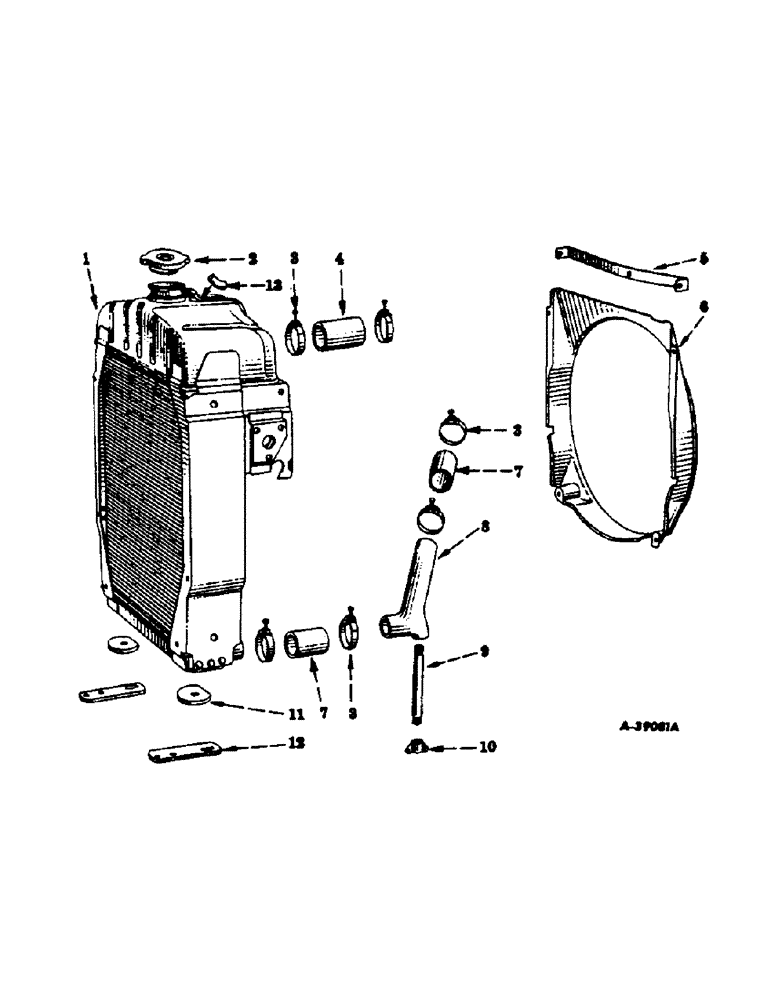

Запчасти Case IH 300 (184) - CHASSIS, RADIATOR AND CONNECTIONS (12) - CHASSIS

1

361937R91

RADIATOR W/HOSE, 274141R1

1шт.

15040R1

BOLT,Sht Sq Nk, 7/16" - 14 x 1 1/2"

carriage, sq-nk., 7/16-14NC x 1-1/2"

2шт.

17160R1

NUT, hex., lock, 7/16-14NC

2шт.

143162

PLUG

pipe, sq-socket, stl., 3/8" (Used to plug radiator drain hole) (For International 300 Utility Tractor) (S/N 501 to 8908)

1шт.

Q1515

WASHER

plain, 1/2" I.D. x 7/8" O.D. x No. 14 ga.

4шт.

2

361705R91

COVER

CAP, radiator filler (Optional with 362323R91)

1шт.

2

362323R91

CAP

radiator filler (Optional with 361705R91)

1шт.

3

357870R91

CLAMP

radiator hose, w/clip and screw (Range 3/4 to 4" O.D. hose)

6шт.

4

351703R1

HOSE

radiator inlet (1-3/4" I.D. x 3-1/4" long x 3 ply)

1шт.

5

362139R1

BRACE, radiator

1шт.

451062

NUT, hex., lock, 3/8-24NF

2шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

2шт.

51538D

STUD, radiator brace

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

365902R1

HOUSING, fan (Will work for 361938R1)

1шт.

13539R1

BOLT,Sq Hd, 1/4" - 20 x 4 3/4"

machine, sq-hd., 1/4-20NC x 4-3/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 1/2"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

7

48827D

HOSE, radiator outlet (1-1/2" I.D. x 2-1/2" long x 3 ply) (1 used on diesel burning engine tractors) (S/N, Serial Range: 501-580)

2шт.

7

367834R1

HOSE, radiator outlet (1-1/2" ID x 3-1/2" long x 3 ply) (Not illustrated) (For diesel burning engine tractors) (S/N 581 up)

1шт.

8

361981R1

PIPE, radiator outlet (For carbureted engine tractors)

1шт.

8

366689R1

PIPE, radiator outlet (Not illustrated) (For diesel engine tractors)

1шт.

9

219326

LUBE NIPPLE,Nipple, 3/8" NPT x 5"

NIPPLE, pipe, 3/8 x 5" (Radiator drain pipe)

1шт.

10

13047DA

PLUG

CAP, radiator drain pipe

1шт.

11

18464DA

GASKET

PAD, radiator

2шт.

12

362382R1

BRACKET, radiator mounting

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

274141R1

HOSE, radiator over flow pipe connecting (Used on radiator with two-piece over flow pipes)

1шт.
