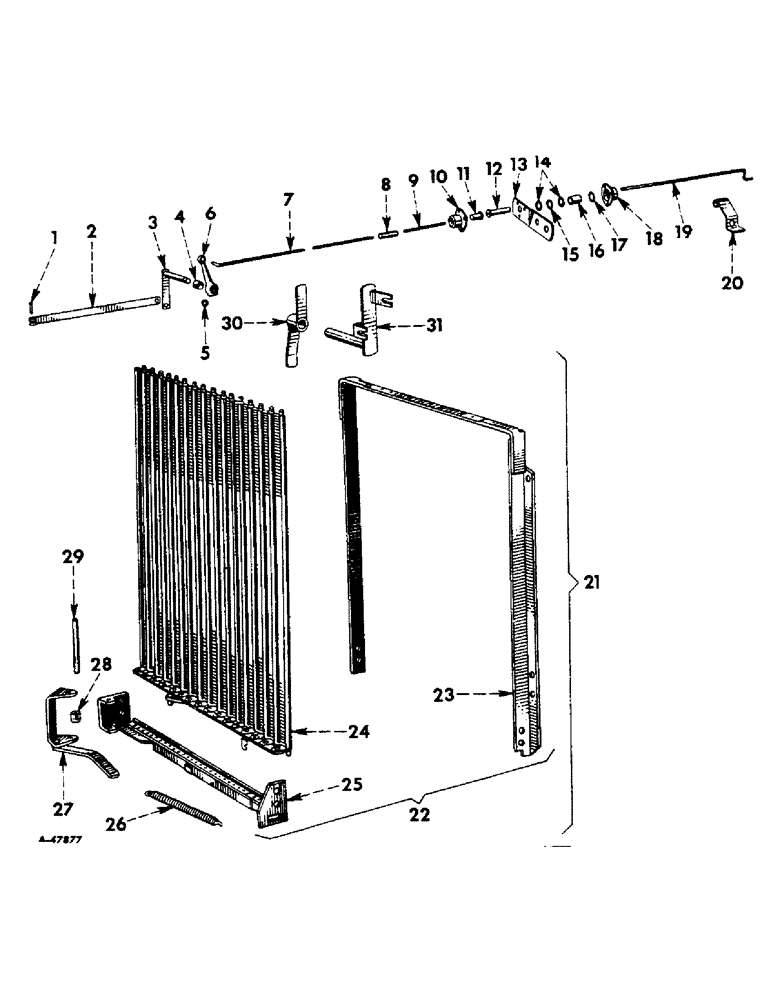

Запчасти Case IH 300 (182) - CHASSIS, RADIATOR SHUTTER AND CONTROLS, FOR TRACTORS EQUIPPED W/RADIATOR SHUTTERS (12) - CHASSIS

1

53055D

CLEVIS PIN,1/4" x 1"

PIN, radiator shutter control link, front

1шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16 x 1/2"

1шт.

95-11028

WASHER,1/4"

plain, 9/32" ID x 5/8" OD x No. 16 ga.

1шт.

2

366189R11

LINK, radiator shutter control, front w/pin (For carbureted engine tractors)

1шт.

2

368206R11

LINK, radiator shutter control, front w/pin (For diesel engine tractors)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

3

363616R91

ARM, radiator shutter control bellcrank, w/shaft (For carbureted engine tractors)

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

W6185

PIN, std-hd., dld. 5/16 x 9/16"

1шт.

4

366351R1

SPACER, radiator shutter bellcrank arm

1шт.

5

48869D

KEY, radiator shutter control bellcrank arm (For carbureted engine tractors)

1шт.

6

8934D

ARM, radiator shutter control bellcrank

1шт.

109084

NUT,1/4"-20, G5

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

366192R1

ROD, radiator shutter control rod, front (For carbureted engine tractors)

1шт.

7

368205R1

ROD, radiator shutter control rod, front (For diesel engine tractors)

1шт.

17265R1

JAM NUT

jam, hex., 5/16-18NC (LH thd.)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

8

69579DA

COUPLING, radiator shutter control rod

1шт.

9

363618R1

ROD, radiator shutter control, center (For carbureted engine tractors)

1шт.

9

357961R1

ROD

radiator shutter control, center (For diesel engine tractors)

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

10

363391R2

RETAINER, radiator shutter control rod front sleeve

1шт.

11

363390R1

SLEEVE, front, radiator shutter control rod

1шт.

17064R1

LOCK PIN,1/8" x 5/8", Slotted

Pin, 1/8" x 5/8", Slotted

1шт.

12

363385R1

SLEEVE, rear, radiator shutter control rod

1шт.

13

366188R1

BRACKET, radiator shutter control

1шт.

102635

NUT,3/8"-16, G5

1шт.

102637

NUT,1/2"-13, G5

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 7/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

14

363402R1

WASHER, thrust, radiator shutter control

2шт.

15

363386R91

RETAINER, w/balls (Optional with 364378R91)

1шт.

15

364378R91

RETAINER, w/balls (Optional with 363386R91)

1шт.

16

363387R1

SLEEVE, outer radiator shutter control

1шт.

17078R1

LOCK PIN,1/8" x 13/16", Slotted

PIN, 1/8" x 13/16", Slotted

1шт.

17

363388R1

WASHER, felt, radiator shutter control

1шт.

18

363389R2

RETAINER, radiator shutter control felt washer

1шт.

103088

NUT,#10-32

hex., No. 10-32NF

23шт.

100764

SCREW,Sl Rd Hd, #10 - 24 x 1/2"

machine, rd-hd., No. 10-32NF x 1/2"

3шт.

118873

WASHER, lock, light, No. 10

3шт.

19

366186R1

ROD, radiator shutter control rear

1шт.

17064R1

LOCK PIN,1/8" x 5/8", Slotted

Pin, 1/8" x 5/8", Slotted

1шт.

20

366187R1

SUPPORT, radiator shutter control rod, rear

1шт.

102635

NUT,3/8"-16, G5

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

48820DA

SHUTTER, radiator, assembly

1шт.

22

51622D

UNIT, shutter, assembly, Composed Of

1шт.

51623DA

FRAME

1шт.

13000R1

NUT

4шт.

114337

SCREW

4шт.

51621D

SHUTTER

1шт.

51618D

TIE BAR

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

23

51623DA

FRAME AND BEARING BAR

1шт.

109084

NUT,1/4"-20, G5

2шт.

13539R1

BOLT,Sq Hd, 1/4" - 20 x 4 3/4"

machine, sq-hd., 1/4-20NC x 4-3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

51621D

SHUTTERS, w/operating bar

1шт.

25

51618D

TIE BAR, bottom, and bearing bar

1шт.

26

37730D

SPRING, bellcrank and operating link

1шт.

27

51620D

BELLCRANK, w/link

1шт.

28

55328D

SPACER, bellcrank pin

1шт.

29

51619D

PIN, bellcrank

1шт.

112526

PIN, cotter, 1/16 x 3/8"

2шт.

30

368204R91

BELLCRANK, radiator shutter control (For diesel engine tractors)

1шт.

106630

FITTING

PIN, cotter, 1/8 x 7/8"

2шт.

350515R1

WASHER

plain, 21/32" ID x 1" OD x No. 16 ga.

2шт.

31

368199R91

SUPPORT, bellcrank (For diesel engine tractors)

1шт.
