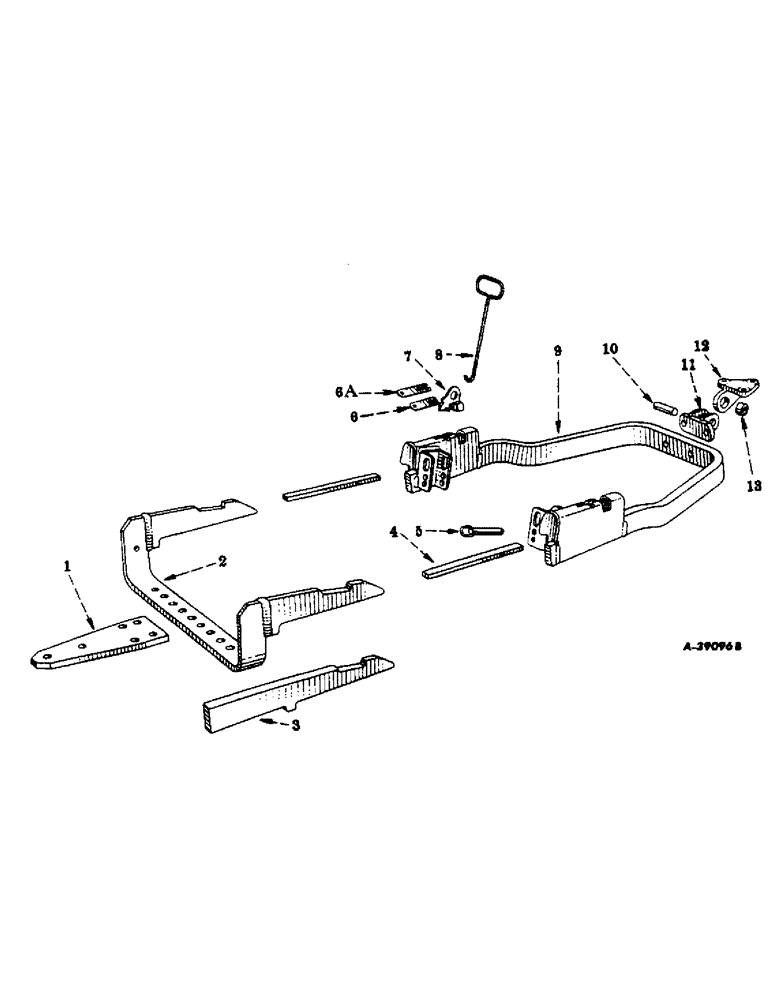

Запчасти Case IH 300 (323) - ATTACHMENTS, FAST-HITCH WITHOUT TRACTION CONTROL (SPECIAL) Attachments

FAST-HITCH ATTACHMENT (For tractors equipped with rockshaft and fast-hitch hydraulic equipment) (Order attachment, 522859R91)

1шт.

520292R92

COUPLING BEAM SOCKET FILLER PLATE UNIT ATTACHMENT, (Permits use of Super C, Farmall 200 and Farmall 230 fast-hitch implements on International 300 Utility Tractors equipped with fast-hitch w/o traction control), Composed Of

1шт.

521090R11

PLATE

2шт.

521074R1

RETAINER

2шт.

1

364013R2

PLATE, drawbar extension provides a standardized power take-off hitch for tractors equipped with independent or transmission driven power take-off), drawbar and yoke

1шт.

200081

NUT, hex., 3/4-10NC, drawbar and yoke

2шт.

271614

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2-3/4", drawbar and yoke

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Drawbar and yoke 3/4"

2шт.

2

520969R91

DRAWBAR, and yoke

1шт.

3

521021R11

BEAM, coupling (Use to adapt allied implements for use with fast-hitch by welding this to, or by drilling holes and bolting this to the implement), drawbar and yoke

1шт.

4

521090R11

PLATE, filler (For tractors equipped with coupling beam socket filler plate unit), drawbar and yoke

2шт.

521074R1

RETAINER, filler plate, drawbar and yoke

2шт.

5

517853R12

PIN

quick attachable, w/ball, handle and spring, drawbar and yoke

2шт.

6

517833R1

SPRING

latch, drawbar and yoke

2шт.

6a

521786R1

SPRING

latch auxiliary (Used to increase spring pressure), drawbar and yoke

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

Drawbar and yoke Hex, 3/8"-16 x 1/2", G5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (Not used on hitches equipped with the auxiliary spring), drawbar and yoke 3/8"

2шт.

7

517786R11

LATCH

coupling beam, w/pin, 576485R1, drawbar and yoke

2шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

Drawbar and yoke 1/4" x 1 1/4", Slotted

2шт.

8

520959R1

HOOK, latch, drawbar and yoke

1шт.

9

520967R11

YOKE, hitch, w/two beam sockets, drawbar

1шт.

10

520958R1

PIN, hitch point pivot, drawbar and yoke

1шт.

13120R1

Pin, Split (Cotter), 3/16" x 1 1/2", self-opening (Will work for 517843R1), drawbar and yoke 3/16" x 1 1/2"

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, , drawbar and yoke 5/16" x 1 1/2", Slotted

1шт.

11

520952R1

BRACKET, yoke pivot, drawbar

1шт.

17630R1

BOLT

machine, hex-hd., 3/4-10NC x 3", drawbar and yoke

2шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10NC, drawbar and yoke

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Drawbar and yoke 3/4"

2шт.

12

520963R1

BRACKET, hitch point pivot bracket, drawbar and yoke

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2", drawbar and yoke

3шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Drawbar and yoke 3/4"

3шт.

13

520964R1

BUSHING, hitch pivot, drawbar and yoke

1шт.
