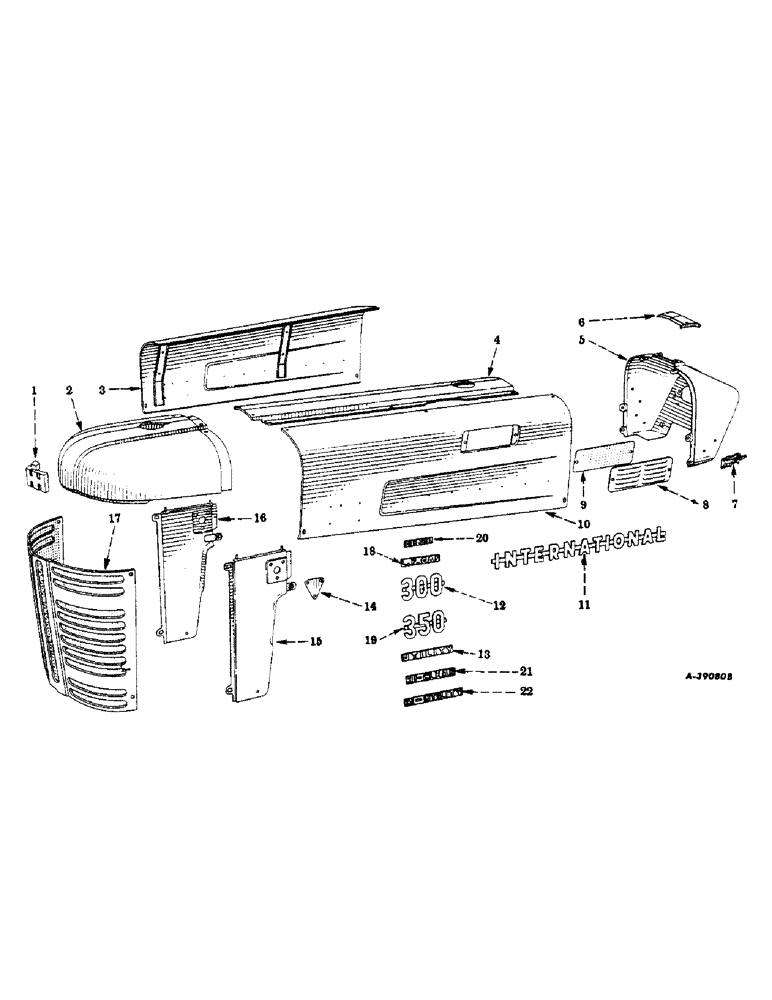

Запчасти Case IH 300 (178) - CHASSIS, HOOD AND RADIATOR GRILLE (12) - CHASSIS

1

362397R2

PRODUCT GRAPHIC

EMBLEM, hood, "IH" (Optional with 365371R1)

1шт.

1

365371R1

EMBLEM, hood, "IH" (Optional with 362397R2)

1шт.

363284R2

CLIP

FASTENER, tubular clip

2шт.

2

361499R31

HOOD, front, w/four nut, 363885R91

1шт.

362594R91

NUT

speed grip, side hood fastener screw (5/16-24NF thread) (See Note A) (For International 300 Utility Tractors) (S/N 501 to 16054)

4шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, side hood fastener screw (5/16-18NC thread) (See Note B) (For International 300 Utility Tractor) (S/N 16055 up)

4шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, side hood fastener screw (5/16-18NC thread) (See Note B) (For International 350 Series Utility Tractor) (S/N 501 up)

4шт.

3

362275R21

HOOD, RH side, w/brackets (For tractors equipped with gasoline burning engines) (Not for Hi-Clear or Hi-Utility Tractors)

1шт.

3

366709R11

HOOD, RH side, w/brackets and shields (For diesel engine tractors) (Not for Hi-Clear or Hi-Utility Tractors)

1шт.

3

366121R11

HOOD, RH side, w/brackets (For distillate and kerosene burning engines) (Not for Hi-Clear or Hi-Utility Tractors)

1шт.

3

365804R11

HOOD, RH side w/bracket (For tractors equipped with Liquefied Petroleum Gas burning engines) (Not for Hi-Clear or Hi-Utility Tractors)

1шт.

3

368416R91

HOOD, RH side, w/brackets (For all Hi-Clear or Hi-Utility Tractors equipped with gasoline burning engines)

1шт.

3

368418R91

HOOD, RH side, w/brackets and shield (For all Hi-Clear or Hi-Utility Tractors equipped with diesel engines)

1шт.

3

368420R91

HOOD, RH side, w/bracket (For all Hi-Clear or Hi-Utility Tractors equipped with Liquefied Petroleum Gas burning engines)

1шт.

3

368422R91

HOOD, RH side, w/brackets (For all Hi-Clear or Hi-Utility Tractors equipped with distillate or kerosene burning engines)

1шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

side hood fastener, w/washer (4 used on tractors equipped with Liquefied Petroleum Gas burning engines)

5шт.

4

362281R11

CHANNEL, hook center w/two nut, 363885R91 (Not used on tractors equipped with Liquefied Petroleum Gas burning engines)

1шт.

4

365805R1

CHANNEL, hood center (For tractors equipped with Liquefied Petroleum Gas burning engines)

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, side hood and instrument housing fastener (Not used on tractors equipped with Liquefied Petroleum Gas burning engines)

2шт.

362593R91

CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"

SCREW, hood center channel fastener, w/washer (5/16-24NF thread) (See Note A) (For International 300 Utility Tractor) (S/N, Serial Range: 501-16054)

2шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

hood center channel fastener, w/washer (5/16-18NC thread) (See Note B) (For International 300 Utility Tractor) (S/N 16055 up)

2шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

hood center channel fastener, w/washer (5/16-18NC thread) (See Note B) (For International 350 Series Utility Tractor) (S/N 501 up)

2шт.

5

362352R31

HOUSING, instrument panel, w/four nut, 363885R91 (For carbureted engine tractors equipped with 6-volt electrical system)

1шт.

5

365809R31

HOUSING, instrument panel w/four nut, 363885R91 (For carbureted engine tractors equipped with 12-volt electrical system)

1шт.

5

367121R11

HOUSING, instrument panel, w/four nut, 363885R91 (For diesel engine tractors)

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, side hood fastener screw

4шт.

142063

PLUG

button, plain, 9/32" dld. (Used to plug position indicator holes on tractors without fast-hitch)

2шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

instrument panel fastener, w/washer

6шт.

6

362353R1

CHANNEL, instrument panel housing

1шт.

132900

BOLT,Sl Rnd Hd, #10 - 32 x 3/8"

SCREW, machine, slotted-rd-hd., cd-pltd., No. 10-32NF x 3/8" (See Note A)

2шт.

121801

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

132830

SPECIAL BOLT,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW, machine, slotted-rd-hd., cd-pltd., No. 10-24NC x 3/8" (See Note B)

2шт.

7

362394R1

PLATE, name "Torque Amplifier" (For tractors equipped with torque amplifier)

2шт.

364000R1

FASTENER, tubular clip

4шт.

8

362279R1

COVER, air cleaner intake (For carbureted engine tractors)

1шт.

120571

SCREW

machine, slotted-truss-hd., 1/4-20NF x 1/2"

2шт.

115547

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

9

362280R1

SCREEN, air cleaner intake (For carbureted engine tractors)

1шт.

10

362272R21

HOOD, L.H. side, w/bracket, two nuts, and shield (For tractors equipped with gasoline, distillate or kerosene engines and underslung exhaust muffler) (Not for Hi-Clear or Hi-Utility Tractors)

1шт.

10

365393R11

HOOD, LH side w/bracket, two nuts, and shield (For tractors equipped with gasoline, distillate or kerosene burning engines and vertically mounted exhaust muffler) (Not for Hi-Clear or Hi-Utility Tractors)

1шт.

10

365802R11

HOOD, LH. side w/bracket, two nuts, and shield (For tractors equipped with Liquefied Petroleum Gas burning engines) (Not for Hi-Clear or Hi-Utility Tractors)

1шт.

10

366706R11

HOOD, LH side w/brackets (For diesel engine tractors except Hi-Clear or Hi-Utility models)

1шт.

10

368415R91

1шт.

HOOD, LH side, w/brackets, two nuts and shield (For all Hi-Clear or Hi-Utility Tractors equipped with gasoline, distillate or kerosene burning engines and underslung exhaust muffler) (Also gasoline or kerosene burning engines and vertically mounted exhaust muffler)

1шт.

10

368417R91

HOOD, LH side, w/brackets (For all Hi-Clear or Hi-Utility Tractors equipped with diesel engine)

1шт.

10

368419R91

HOOD, LH side, w/brackets, two nuts and shield (For all Hi-Clear or Hi-Utility Tractors equipped with Liquefied Petroleum Gas burning engines)

1шт.

10

368421R91

HOOD, LH side, w/brackets, two nuts and shield (For all Hi-Clear or Hi-Utility Tractors equipped with distillate burning engine and vertically mounted exhaust muffler)

1шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

side fastener, w/washer (4 used on tractors equipped with Liquefied Petroleum Gas burning engines)

5шт.

11

363926R1

PLATE, name, International

2шт.

363784R1

FASTENER

tubular clip

14шт.

12

363928R1

PLATE, name 300 (For International 300 Utility Tractors)

2шт.

363784R1

FASTENER

tubular clip

4шт.

13

363927R1

PLATE, name, utility

2шт.

363784R1

FASTENER

tubular clip

4шт.

14

363216R1

PLATE, headlight mounting bracket hole cover (For tractors without lighting system)

2шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

15

362285R11

SHEET, radiator grille side, w/three nuts, 363885R91

1шт.

109084

NUT,1/4"-20, G5

2шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, grille and side hood fastener screw

3шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

radiator grille side hood fastener, w/washer

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

362286R11

SHEET, radiator grille side, w/three nuts, 363885R91

1шт.

109084

NUT,1/4"-20, G5

2шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, grille and side hood fastener screw

3шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

radiator grille side hood fastener, w/washer (Not used on tractors equipped with front power take-off hydraulic pump)

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

575806R1

WASHER

plain, 13/32" ID x 1-1/4" OD x No. 10 ga. (On inside of sheet on lower attaching screw) (For tractors equipped w/radiator shutter)

1шт.

17

362282R11

GRILLE, radiator

1шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

radiator grille fastener, w/washer

4шт.

18

363708R1

PLATE, name, "L.P. Gas" (For tractors equipped with Liquefied Petroleum Gas burning engines)

2шт.

363784R1

FASTENER

tubular clip

4шт.

19

366678R1

PLATE, name, number "350" (For International 350 Series Utility Tractors)

2шт.

363784R1

FASTENER

tubular clip

4шт.

20

362319R1

PLATE, name "Diesel" (For diesel engine tractors)

2шт.

363784R1

FASTENER

tubular clip

4шт.

21

362357R1

PLATE, name, "Hi-Clear"

2шт.

363784R1

FASTENER

tubular clip

4шт.

22

369626R1

PLATE, name, "Hi-Utility"

2шт.

22

363784R1

FASTENER

tubular clip

4шт.
