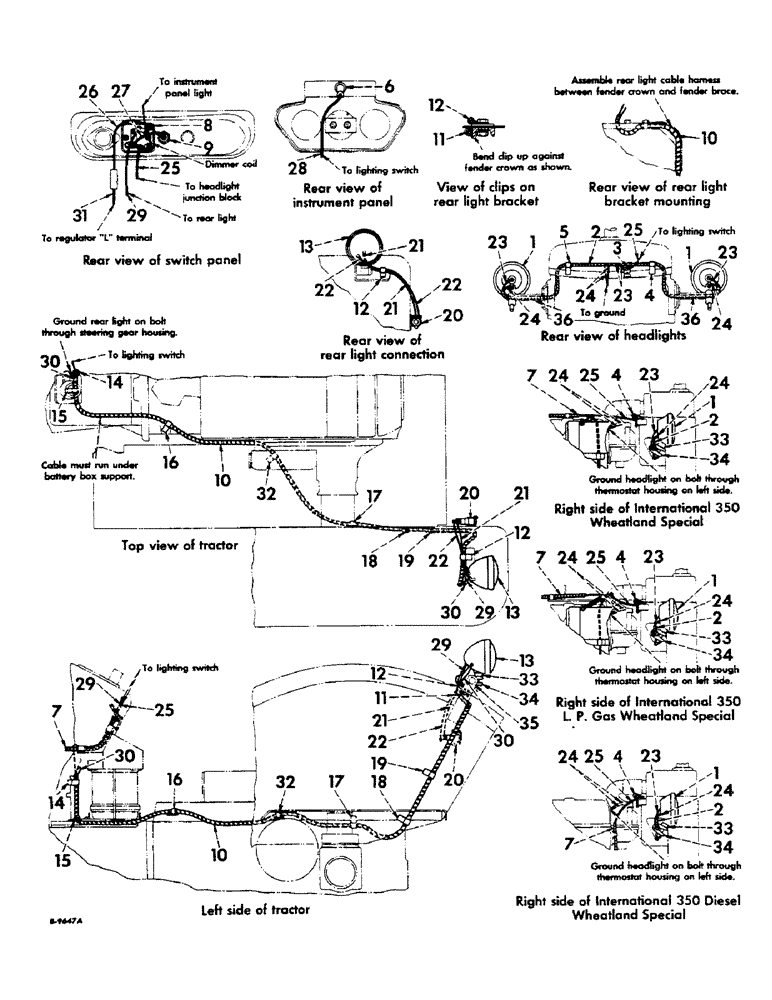

Запчасти Case IH 300 (173) - ELECTRICAL SYSTEM, DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

SERVICE PARTS (For tractors equipped with electric lighting attachment (6 volt) (Column A)

1шт.

SERVICE PARTS (For tractors equipped with electric lighting attachment (12 volt) (Column B)

1шт.

1

357884R94

LAMP

LIGHT, sealed beam (6 volt) assembly (For components see list of parts under details of "Headlight") [A]

2шт.

1

357885R94

LAMP

LIGHT, sealed beam (12 volt) assembly (For components see list of parts under details of "Headlight") [B]

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

363823R91

HARNESS, headlight cable, w/four cables

1шт.

3

42915D

BLOCK

headlight harness junction, w/screw

1шт.

NLS

NO LONGER SERVICED

machine, slotted-rd-hd., No. 10-32NF x 5/8"

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

4

362121R1

CLIP

headlight cable harness

1шт.

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, cap., hex-hd., 1/4-28NF x 1/2"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

362121R1

CLIP

headlight cable harness

1шт.

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, cap., hex-hd., 1/4-28NF x 1/2"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

363838R91

CABLE

SOCKET, instrument panel light w/cable

1шт.

7

HARNESS, cable (This harness is not included in the lighting attachment-order harness listed in "Ignition And Starting System")

1шт.

8

363130R91

SWITCH

lighting (6 volt) assembly (For components see list of parts under details of "Lighting Switch") [A]

1шт.

8

363131R91

SWITCH

lighting (12 volt) assembly (For components see list of parts under details of "Lighting Switch") [B]

1шт.

9

365515R91

FUSE CARTRIDGE

HOUSING, fuse w/two cables knob, 356445R91, nut and washer (Illustrated with "Engine Controls")

1шт.

10

368127R91

HARNESS, lighting switch to rear light w/two cables

1шт.

11

365603R1

CLIP, on rear lamp bracket mounting bolt inner

1шт.

12

366460R1

CABLE CLIP

CLIP, cable harness (On rear light post lower attaching screw)

1шт.

13

361985R93

LAMP

LIGHT, combination rear light and tail (6 volt), assembly (For components see list of parts under details of "Combination Rear Light And Tail Light") [A]

1шт.

13

361986R93

LAMP

LIGHT, combination rear light and tail (12 volt), assembly (For components see list of parts under details of "Combination Rear Light And Tail Light") [B]

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

14

355097R1

CLIP, cable harness (On steering gear housing cover upper rear attaching screw) (Not included with the lighting field attachment)

1шт.

15

355097R1

CLIP, cable harness (On steering gear housing attaching screw)

1шт.

102635

NUT,3/8"-16, G5

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

355098R1

CLIP, cable harness (On rear frame cover attaching screw)

1шт.

17

350742R1

CLIP, cable harness (On platform mounting bolt) (Third bolt from rear)

1шт.

18

350742R1

CLIP, cable harness (On platform mounting bolt) (Second bolt from rear)

1шт.

19

355097R1

CLIP, cable harness (On fender side sheet)

1шт.

20

362002R92

SOCKET

electrical breakaway connector w/cap two screws and spring

1шт.

114378

NUT, hex., 1/4-20NC

2шт.

120572

SCREW, machine, slotted-truss-hd., 1/4-20NC x 3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

368125R91

CABLE, rear light to breakaway connector socket (Black)

1шт.

22

368126R91

CABLE, rear light to breakaway connector socket ground (Pink)

1шт.

23

CABLE, head light to junction block (Black) (Order harness - ref. no. 2)

1шт.

24

CABLE, head light to ground (Pink) (Use the thermostat housing attaching screw to attach to ground) (Order harness - ref. no. 2)

1шт.

25

CABLE, lighting switch to junction block (Violet) (Order harness listed in "Ignition And Starting System")

1шт.

26

CABLE, fuse housing to regulator "L" terminal cable terminal (Black) (Order housing - ref. no. 9)

1шт.

27

CABLE, fuse housing to lighting switch (Black) (Order housing - ref. no. 9)

1шт.

28

CABLE, instrument panel light to lighting switch (Black) (Order socket - ref. no. 6)

1шт.

29

CABLE, rear light to lighting switch (Black) (Order harness - ref. no. 10)

1шт.

30

CABLE, rear light to ground (Pink) (Use the steering gear upper cover to attach to ground (Order harness - ref. no. 10)

1шт.

31

CABLE, regulator "L" terminal to fuse housing cable (Light green) (Order harness listed in "Ignition And Starting System)

1шт.

32

355097R1

CLIP, on top boss of left brake housing

1шт.

33

49069D

SPACER

headlight or rear light

3шт.

34

350920R1

CLAMP

headlight or rear light

3шт.

35

365747R11

SUPPORT, combination rear light and tail light

1шт.

102635

NUT,3/8"-16, G5

2шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

36

361987R11

POST, headlight, w/bracket

2шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap., hex-hd., 3/8-24NF x 3/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

106653

FUSE

type AGC, 20 amp [A]

1шт.

455844

FUSE,25 Amp, Type 3AG

type AGN, 25 amp [A]

1шт.

10815V

FUSE

cartridge type, 10 amp [B]

1шт.

9426333

FUSE,15 Amp, Type 3AG

type AGC, 15 amp [B]

1шт.

125588

BULB,#55, Type C-2R, 6V

LAMP, No. 55 (6 volt) [A]

1шт.

A14553

BULB

LAMP, No. 57 (12 volt) [B]

1шт.
