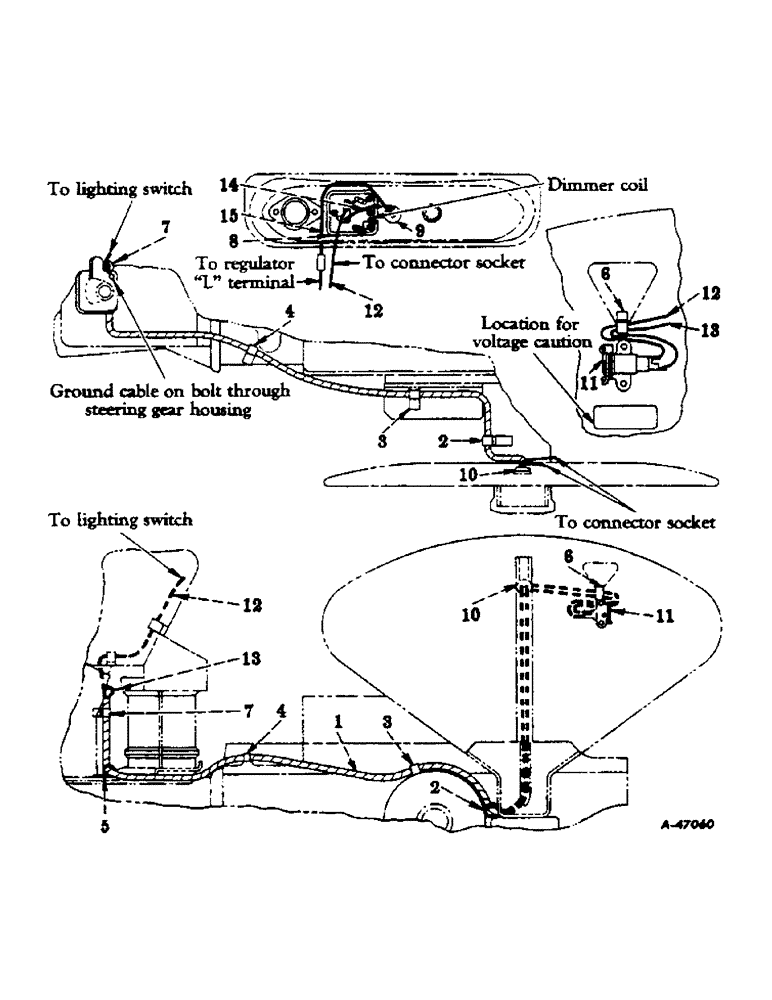

Запчасти Case IH 300 (170) - ELECTRICAL SYSTEM, DIESEL ENGINE, ELECTRICAL BREAK-AWAY CONNECTOR SOCKET, SPECIAL (06) - ELECTRICAL SYSTEMS

363923R91

PACKAGE, electrical break-away connector socket (For tractors without lighting system) (Composed of parts listed in this unit except as noted)

1шт.

1

366458R91

HARNESS, lighting switch to rear light, w/two cables (See Note A)

1шт.

2

253313R1

CLIP, cable harness (See Note A)

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

(See Note A) Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (See Note A) 1/2"

1шт.

3

355097R1

CLIP, cable harness (See Note A)

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

(See note A) Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See Note A) 3/8"

1шт.

4

355098R1

CLIP, cable harness (On rear frame cover attaching screw) (See Note A)

1шт.

5

355097R1

CLIP, cable harness (On steering gear housing attaching screw) (See Note A)

1шт.

6

366460R1

CABLE CLIP

CLIP, cable harness (See Note A)

1шт.

103026

NUT,3/8"-24, G5

1шт.

181359

SCREW, cap, hex-hd., 3/8-24NF x 11/16" (See Note A)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

355097R1

CLIP, cable harness (On steering gear housing cover upper rear attaching screw) (See Note A)

1шт.

8

363131R91

SWITCH

lighting (12 volt) assembly (For components see list of parts under details of "Lighting Switch") (See Note A)

1шт.

9

365515R91

FUSE CARTRIDGE

HOUSING, fuse, w/two cables, knob, 356445R91, nut and washer (See Note A)

1шт.

10

363846R1

GROMMET

lighting switch to rear light cable harness (See Note A)

1шт.

11

362002R92

SOCKET

electrical break-away connector, w/cap, two screws and spring

1шт.

114378

NUT, hex., 1/4-20NC

2шт.

120572

SCREW, machine, slotted-truss-hd., 1/4-20NC x 3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

CABLE, lighting switch to break-away connector socket (Black) (Order harness - ref. no. 1) (See Note A)

1шт.

13

CABLE, break-away connector socket to ground (Pink) (Order harness - ref. no. 1) (See Note A)

1шт.

14

CABLE, fuse housing to lighting switch (Black) (Order housing - ref. no. 9) (See Note A)

1шт.

15

CABLE, fuse housing to regulator "L" terminal cable terminal (Black) (Order housing - ref. no. 9) (See Note A)

1шт.

364004R1

BRACKET, break-away connector socket mounting (See Note B)

1шт.

9635082

NUT,5/16" - 18, Gr 5

(See Note B) 5/16"-18, G5

1шт.

120575

SCREW, machine, slotted-truss-hd., 1/4-20NC x 1-1/2" (See Note B)

2шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

(See Note B) Hex, 5/16"-18 x 1 5/8", G5

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(See Note B) Hex, 3/8"-16 x 1", G5

1шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

(See Note B) Hex, 7/16"-14 x 3 3/4", G5

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/2" (See Note B)

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (See Note B) 5/16"

1шт.

358572R92

CABLE, w/two sleeves and terminals (See Note B)

1шт.

1001722R1

DECAL, caution, 6 volt electrical system

1шт.

1001725R1

DECAL

caution, 12 volt electrical system

1шт.

364003R1

SLEEVE, terminal insulating

2шт.

364002R1

SPACER,3/8" Pipe x 1"

connector socket mounting bracket (1" long) (See Note B)

1шт.

364171R1

BRACKET

SPACER, connector socket mounting bracket (9/16" long) (See Note B)

1шт.

61401V

SPACER, connector socket mounting bracket (3/4" long) (See Note B)

2шт.

TERMINAL, electrical, brs., 7/16" (Type B) (See Note B)

1шт.

TERMINAL, electrical, brs., No. 10 (Type B) (See Note B)

1шт.

10815V

FUSE

cartridge type (10 amp) (See Note A)

1шт.

455844

FUSE,25 Amp, Type 3AG

type AGC (25 amp) (See Note A)

1шт.
