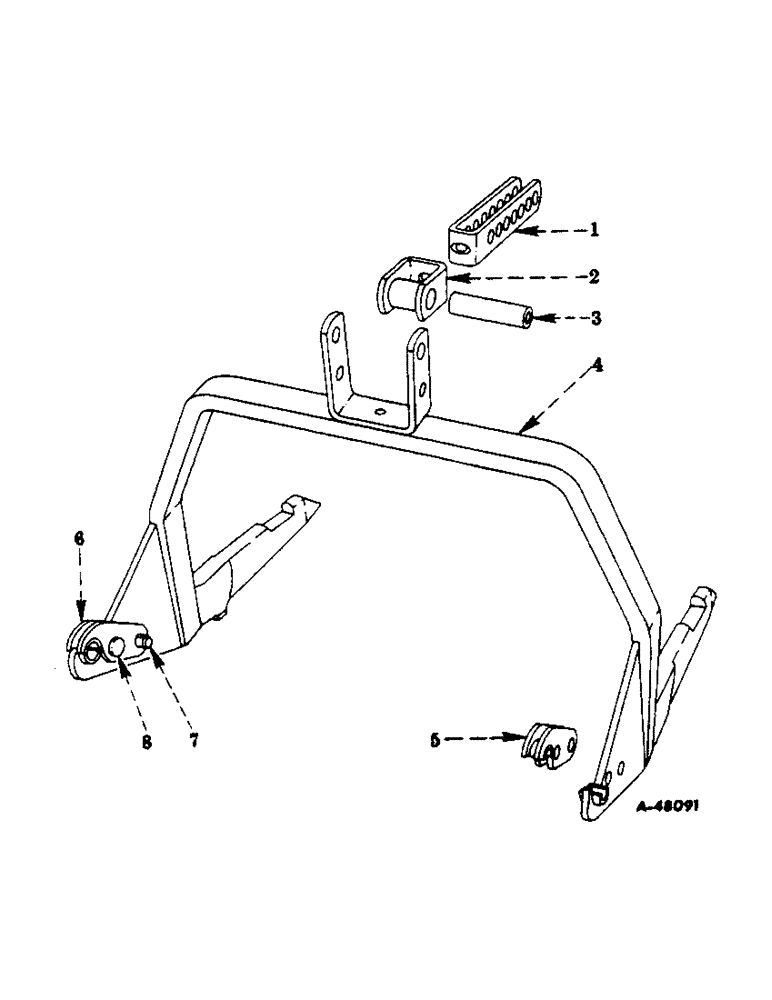

Запчасти Case IH 300 (320) - ATTACHMENTS, THREE-POINT IMPLEMENT ADAPTER UNIT Attachments

523515R91

UNIT, adapter, three point

1шт.

1

517860R1

STRAP, spacing

1шт.

517853R12

PIN

spacing strap, w/ball, handle and spring

1шт.

2

517854R11

STRAP, pivot (Welded assembly)

1шт.

18171R1

BOLT, machine, hex-hd., dld., 5/8-11UNC x 1-3/8"

1шт.

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, hex-slt., 5/8-11UNC

1шт.

13092R1

PIN, cotter, 1/8 x 1-1/4"

1шт.

3

517867R1

SPACER, yoke bracket

1шт.

4

523649R91

ADAPTER, allied (Welded assembly)

1шт.

17867R11

BOLT

machine, hex-hd., 3/4-10UNC x 5-3/4", w/nut

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

5

523651R91

PLATE, latch, right (Welded assembly)

1шт.

6

523645R91

PLATE, latch, left (Welded assembly)

1шт.

7

523642R11

PIN ASSY.

PIN, quick-attachable, latch plate

2шт.

8

523650R1

PIN, pivot, latch plate

2шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

2шт.

Q3501

WASHER

plain, 25/32" ID x 1-1/4" OD x No. 16 ga.

2шт.
