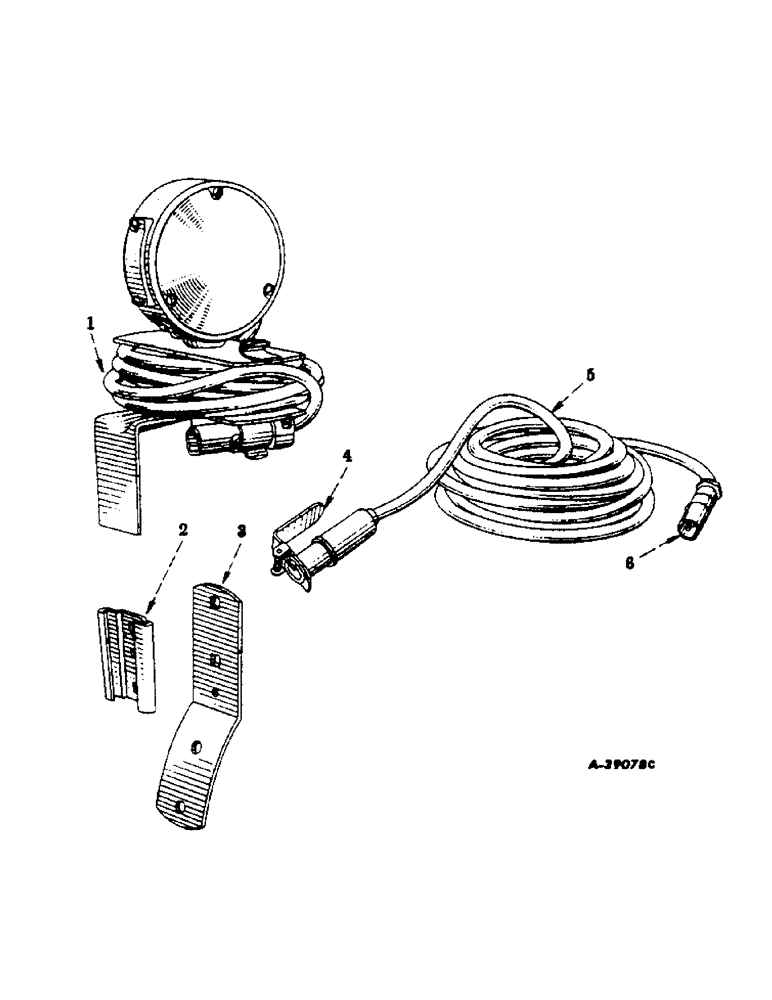

Запчасти Case IH 300 (168) - ELECTRICAL SYSTEM, DIESEL ENGINE, SAFETY LIGHT AND EXTENSION CABLE, SPECIAL (06) - ELECTRICAL SYSTEMS

363915R91

PACKAGE, safety light (12 volt) (For tractors equipped with electrical break-away connector socket) (Consists of parts listed in this unit except as noted)

1шт.

1

367814R91

LIGHT, safety assembly (12 volt) (For components see list of parts under details of "Safety Light")

1шт.

2

363919R1

SOCKET

safety light bracket

1шт.

14990R1

BOLT

carriage, sq-nk., 5/16-18NC x 5/8"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

363920R1

BRACKET, safety light

1шт.

120376

NUT,5/16"-18, G5

2шт.

142849

SCREW, machine, slotted-truss-hd., cd-pltd., 5/16-18NC x 1-1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

365446R91

SOCKET/RECEPTACLE

SOCKET, break-away connector, w/cap, cover and spring (Used with the extension cable) (See Note)

1шт.

5

365444R91

CABLE, twenty-four ft. extension, w/plug, 364559R91 and socket, 365446R91) (Special) (For tractors equipped with electrical break-away connector socket) (See Note)

1шт.

6

364559R91

PLUG

break-away connector socket (For use with 21/64" OD cable) (Used with the extension cable) (See Note)

1шт.
