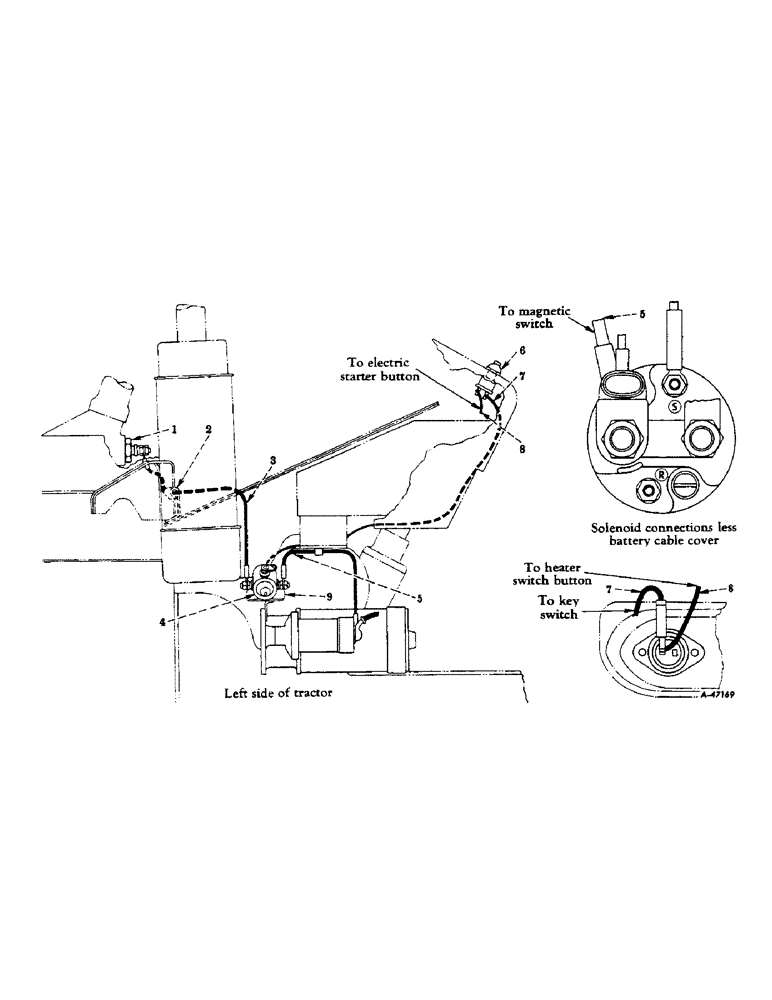

Запчасти Case IH 300 (167) - ELECTRICAL SYSTEM, DIESEL ENGINE, INTAKE MANIFOLD AIR HEATER, SPECIAL (06) - ELECTRICAL SYSTEMS

367171R91

PARTS ACCESSORY, intake manifold air heater

1шт.

1

367174R91

HEATER, intake manifold air, w/coil, two nuts and four washers

1шт.

2

362122R1

CLIP

cable (On fuel tank front LH attaching screw)

1шт.

3

367172R91

CABLE, magnetic switch to manifold heater (Red)

1шт.

4

105327H

SWITCH

magnetic, assembly, Composed Of

1шт.

120622

NUT,#8-32

1шт.

280136

NUT,3/8"-16, G8

2шт.

NSS

NOT SOLD SEPARAT

SWITCH

1шт.

812622

WASHER

2шт.

120381

WASHER

2шт.

1904615

RING

WASHER

1шт.

120622

NUT,#8-32

Terminal stud #8-32

1шт.

280136

NUT,3/8"-16, G8

(1/4" thick-terminal stud) 3/8"-16, G8

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120381

WASHER

lock, cd-pltd., 3/8" (Terminal stud)

2шт.

812622

WASHER

plain, 3/8" ID x 11/16" OD x 1/32" (Terminal stud)

2шт.

1904615

RING

WASHER, lock (No. 8) (Terminal stud)

1шт.

5

367173R91

CABLE, magnetic switch to solenoid switch (Red)

1шт.

6

271179R91

SWITCH

heater control (Optional with 367678R91)

1шт.

6

367678R91

SWITCH

heater control (Optional with 271179R91)

1шт.

7

358117R92

CABLE, heater control switch to magnetic switch (Black)

1шт.

8

359377R91

CABLE, heater control switch to push button starting switch (Black)

1шт.

9

367175R11

BRACKET, magnetic switch mounting, w/two nuts

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

1шт.
