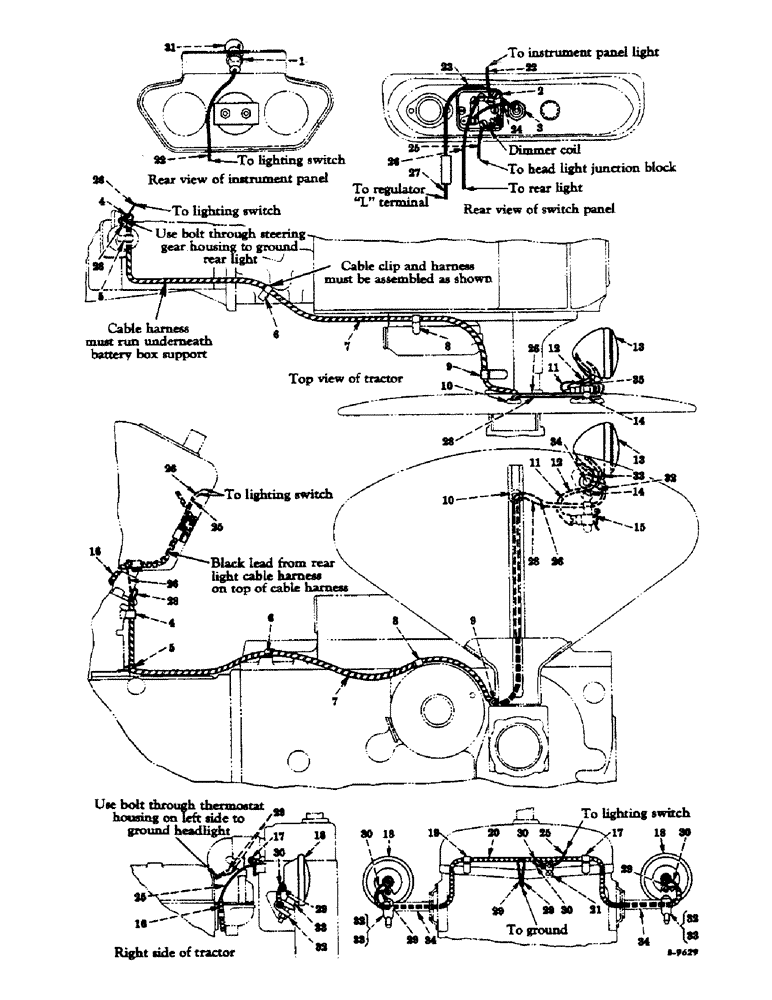

Запчасти Case IH 300 (164) - ELECTRICAL SYSTEM, DIESEL ENGINE, LIGHTING SYSTEM, SPECIAL, FOR INTERNATIONAL 350 UTILITY TRACTOR (06) - ELECTRICAL SYSTEMS

366594R91

LIGHT ASSY.

ATTACHMENT, lighting (12 volt)

1шт.

1

363838R91

CABLE

SOCKET, instrument panel light, w/cable

1шт.

2

363131R91

SWITCH

lighting (12 volt) assembly (For components see list of parts under details of "Lighting Switch"

1шт.

3

365515R91

FUSE CARTRIDGE

HOUSING, fuse, w/two cables, knob, 356445R91, nut and washer (Illustrated with "Engine Controls")

1шт.

4

355097R1

CLIP, cable harness (On steering gear housing cover upper rear attaching screw) (Not included with the lighting system field attachment)

1шт.

5

355097R1

CLIP, cable harness (On steering gear housing attaching screw)

1шт.

6

355098R1

CLIP, cable harness (On rear frame cover attaching screw)

1шт.

7

366458R91

HARNESS, lighting switch to rear light, w/two cables

1шт.

8

355097R1

CLIP, cable harness

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

253313R1

CLIP, cable harness

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

10

363846R1

GROMMET

lighting switch to rear light cable harness

1шт.

11

367048R91

CABLE, rear light to break-away connector socket ground (Pink)

1шт.

12

367047R91

CABLE, rear light to break-away connector socket (Black)

1шт.

13

361986R93

LAMP

LIGHT, combination rear light and tail (12 volt) assembly (For components see list of parts under details of "Combination Rear Light And Tail Light")

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

14

366460R1

CABLE CLIP

CLIP, cable harness (On rear light post lower attaching screw)

1шт.

15

362002R92

SOCKET

electrical break-away connector, w/cap, two screws and spring

1шт.

114378

NUT, hex., 1/4-20NC

2шт.

120572

SCREW, machine, slotted-truss-hd., 1/4-20NC x 3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

HARNESS, cable (This harness is not included in the lighting attachment - order harness listed in "Starting System")

1шт.

17

362121R1

CLIP

headlight cable harness

1шт.

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 1/2"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18

357885R94

LAMP

LIGHT, sealed beam (12 volt) assembly (For components see list of parts under details of "Headlight")

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

19

362121R1

CLIP

headlight cable harness

1шт.

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 1/2"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

363823R91

HARNESS, headlight cable, w/four cables

1шт.

21

42915D

BLOCK

headlight harness junction, w/scrwe

1шт.

100765

PIN

machine, slotted-rd-hd., No. 10-32NF x 5/8"

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

22

CABLE, instrument panel lighting switch (Black) (Order socket - ref. no. 6)

1шт.

23

CABLE, fuse housing to regulator "L" terminal cable terminal (Black) (Order housing - ref. no. 9)

1шт.

24

CABLE, fuse housing to lighting switch (Black) (Order housing - ref. no. 9)

1шт.

25

CABLE, lighting switch to junction block (Violet) (Order harness listed in "Starting System")

1шт.

26

CABLE, rear light to lighting switch (Black) (Order harness - ref. no. 10)

1шт.

27

CABLE, regulator "L" terminal to fuse housing cable (Light green) (Order harness listed in "Starting System")

1шт.

28

CABLE, rear light to ground (Pink) (Use the steering gear upper cover attaching screw to attach to ground) (Order harness - ref. no. 10)

1шт.

29

CABLE, headlight to ground (Pink) (Use the thermostat housing attaching screw to attach to ground) (Order harness - ref. no. 2)

1шт.

30

CABLE, headlight to junction block (Black) (Ordre harness - ref. no. 2)

1шт.

31

127934

BELT, TRANSMISSION

LAMP, no. 57 (12 volt)

1шт.

32

350920R1

CLAMP

headlight or rear light

3шт.

33

49069D

SPACER

headlight or rear light

3шт.

34

361987R11

POST, headlight, w/bracket

2шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

35

66724DB

POST, combination rear light and tail light, w/bracket

1шт.

103026

NUT,3/8"-24, G5

3шт.

181359

SCREW, cap, hex-hd., 3/8-24NF x 11/16"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10815V

FUSE

cartridge type

1шт.

455844

FUSE,25 Amp, Type 3AG

type AGC (25 amp)

1шт.
