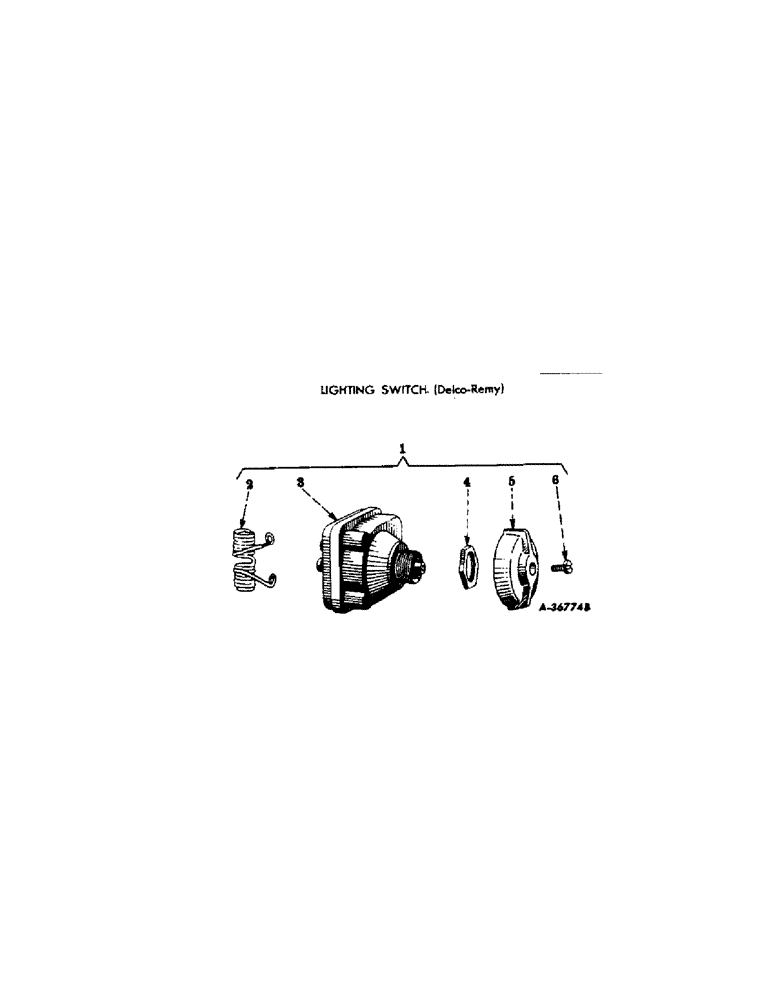

Запчасти Case IH 300 (158) - ELECTRICAL SYSTEM, DIESEL ENGINE, LIGHTING SWITCH, DELCO-REMY (06) - ELECTRICAL SYSTEMS

1

363131R91

SWITCH

lighting, (12 volt) assembly (Mfr's. No. 1994043)

1шт.

2

COIL, resistance, lighting switch dimmer (12 volt) (Mfr's. No. 1877830)

1шт.

SCREW, dimmer coil attaching (Mfr's. No. 1882994)

2шт.

WASHER, lock, external-tooth, cd-pltd., No. 8 (Mfr's. No. 138530)

2шт.

3

NSS

NOT SOLD SEPARAT

SWITCH, lighting (Not serviced separately - order switch assembly)

1шт.

SCREW, terminal (3/8" long) (Mfr's. No. 1882994)

4шт.

WASHER, lock, internal-tooth, 11/16" (Mfr's. No. 141706)

1шт.

WASHER, lock, terminal screw (Mfr's. No. 1873844)

4шт.

4

NUT, mounting, lighting switch (Mfr's. No. 1882012)

1шт.

5

KNOB, lighting switch (Mfr's. No. 1930685)

1шт.

6

SCREW, mounting, lighting switch knob (Mfr's. No. 1864099)

1шт.

WASHER, lock, cd-pltd., No. 8 (Mfr's. No. 121841)

1шт.
