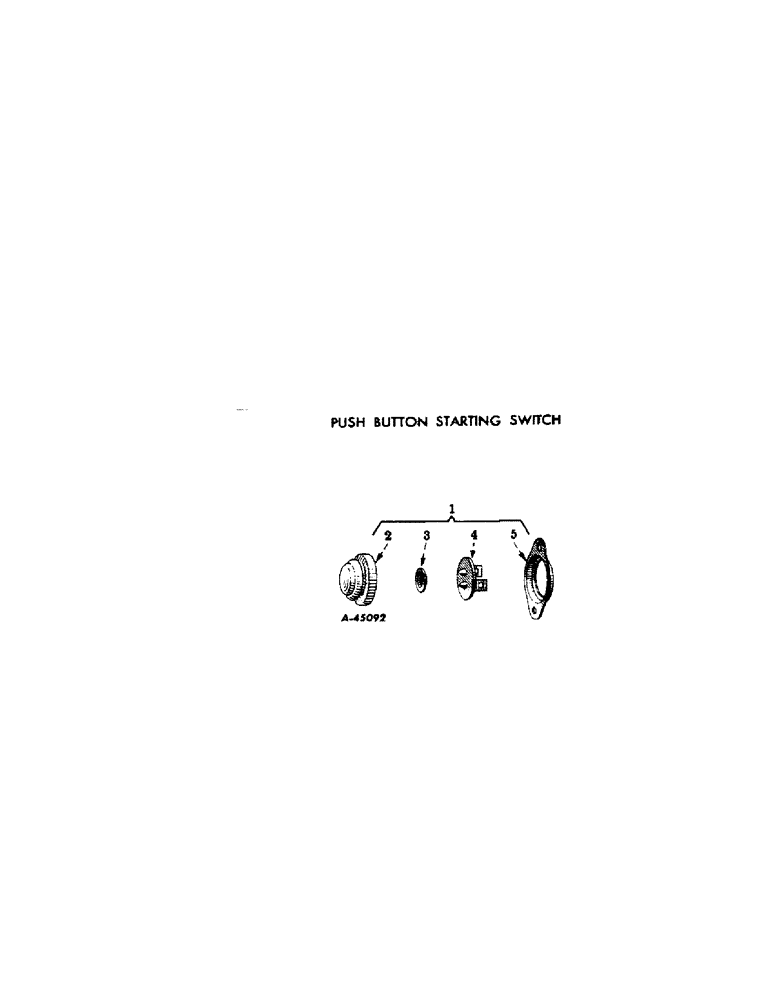

Запчасти Case IH 300 (158[A]) - ELECTRICAL SYSTEM, PUSH BUTTON STARTING SWITCH (06) - ELECTRICAL SYSTEMS

1

366316R91

SWITCH

push button starting, assembly (Optional with 366317R91)

1шт.

2

366616R1

BODY

starting switch

1шт.

3

366617R1

BUTTON

PLATE, contact, starting switch

1шт.

4

366618R91

BASE

terminal, starting switch, w/two screws, 64022H and two washers, 121841

1шт.

64022H

SCREW, starting switch terminal base

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

5

352133R1

PLATE

BRACKET, starting switch

1шт.

120611

NUT,#10 - 32

square, cd-pltd., No. 10-32NF

2шт.

132903

ADAPTER

SCREW, machine, slotted-rd-hd., cd-pltd., No. 10-32NF x 7/16" (One used on tractors equipped with magneto ignition)

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.
