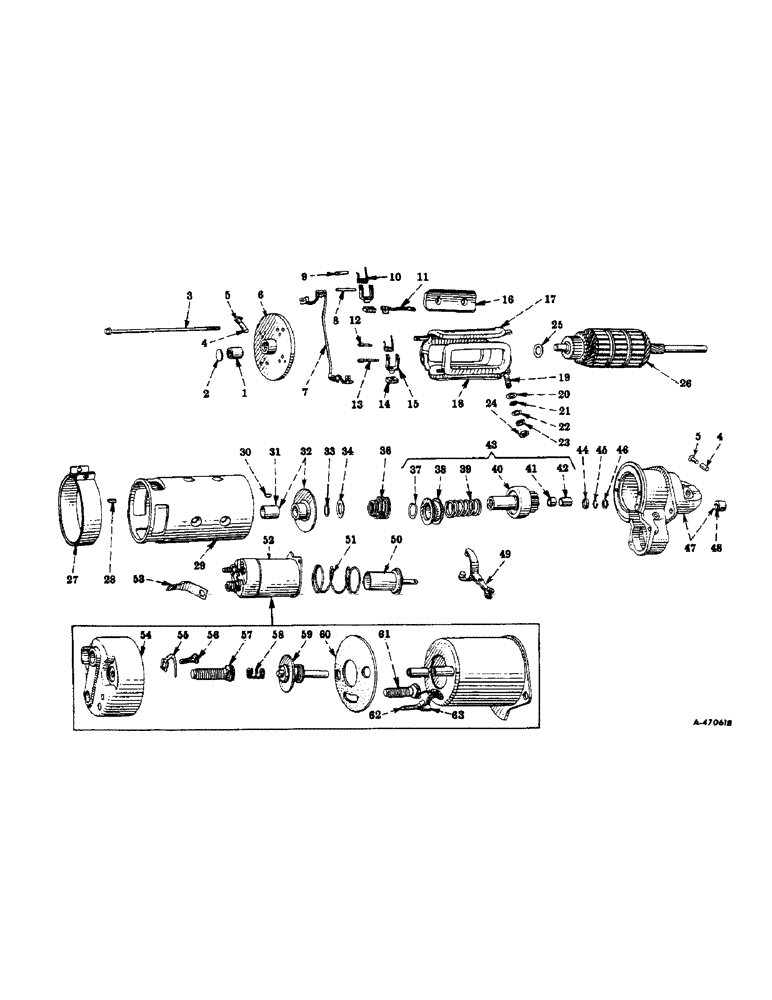

Запчасти Case IH 300 (151) - ELECTRICAL SYSTEM, DIESEL ENGINE, CRANKING MOTOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

366770R91

MOTOR, cranking (12 volt) assembly (Mfr's. No. 1108642)

1шт.

104204A1R

REMAN-STARTER

25MT Heavy Duty ---- Delco 1108657

1шт.

104204A1C

CORE-STARTER

Return number

1шт.

1

BUSHING, commutator end (Order ref. no. 6) (Mfr's. No. 1867610)

1шт.

2

PLUG, end (Mfr's. No. 810819)

1шт.

3

BOLT, thru (Mfr's. No. 1887034)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

WICK, commutator or drive end frame (Mfr's. No. 802694)

2шт.

5

OILER, commutator or drive end, w/cap and spring (Mfr's. No. 114998)

2шт.

6

FRAME, commutator end, assembly, Composed Of (Mfr's. No. 1864530)

1шт.

*

BUSHING (Mfr's. No. 1867610)

1шт.

*

NSS

NOT SOLD SEPARAT

FRAME

1шт.

*

OILER (Mfr's. No. 114998)

1шт.

*

PLUG (Mfr's. No. 810819)

1шт.

*

PIN (Mfr's. No. 809062)

1шт.

*

PIN (Mfr's. No. 812015)

2шт.

*

PIN (Mfr's. No. 812016)

2шт.

*

PIN (Mfr's. No. 817313)

2шт.

*

PIN (Mfr's. No. 817314)

2шт.

*

WICK (Mfr's. No. 802694)

1шт.

7

CABLE, brush and field connector (Mfr's. No. 819362)

1шт.

132892

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

slotted-rd-hd., cd-pltd., No. 10-32NF x 1/4"

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

8

PIN, brush holder stop (Mfr's. No. 817314)

2шт.

9

PIN, brush holder hinge (Mfr's. No. 817313)

2шт.

10

SPRING, brush (Mfr's. No. 813521)

4шт.

11

CABLE, brush ground (Mfr's. No. 813554)

2шт.

1929443

SCREW, brush ground cable (Mfr's. No. 1929443)

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

12

PIN, brush holder stop, w/insulation (Mfr's. No. 812015)

2шт.

13

PIN, brush holder hinge, w/insulation (Mfr's. No. 812016)

2шт.

14

BRUSH (Mfr's. No. 1886643)

4шт.

115903

SCREW

machine, slotted-rd-hd., No. 6-32NC x 1/2"

4шт.

492-11006

LOCK WASHER,#6

Lock, #6

4шт.

15

HOLDER, brush (Mfr's. No. 810226)

4шт.

16

SHOE, pole (Mfr's. No. 1887021)

4шт.

*

SCREW, pole shoe (Mfr's. No. 1881869)

8шт.

17

COILS, lower, field (Mfr's No. 1935237)

1шт.

18

COILS, upper, field, w/stud, 1848837 (Mfr's. No. 1935235)

1шт.

19

STUD, terminal (Mfr's. No. 1848837)

1шт.

20

WASHER, terminal stud insulating (25/64" OD) (Mfr's. No. 1861076)

2шт.

21

WASHER, terminal stud insulating (9/16" OD) (Mfr's. No. 1904669)

2шт.

22

WASHER, plain, terminal stud (Mfr's. No. 812622)

1шт.

23

120381

WASHER

lock, medium, cd-pltd., 3/8"

2шт.

24

NUT, terminal stud (Mfr's. No. 805258)

2шт.

25

WASHER, space, commutator end (Mfr's. No. 818265)

1шт.

26

ARMATURE (Mfr's. No. 1939106)

1шт.

27

BAND, cover w/insulation, nut 120614 and screw, 132926 (Mfr's. No. 1886923)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

slotted-rd-hd., cd-pltd., No. 10-32NF x 1-1/4"

1шт.

28

PIN, dowel, commutator end frame (Mfr's. No. 809062)

1шт.

29

NSS

NOT SOLD SEPARAT

FRAME

1шт.

30

PIN, dowel, drive end (Mfr's. No. 809593)

1шт.

31

BUSHING, center bearing (Order ref. no. 32)

1шт.

32

PLATE, center bearing, w/bushing, 1938596 (Mfr's. No. 1938594)

1шт.

132900

BOLT,Sl Rnd Hd, #10 - 32 x 3/8"

SCREW, machine, slotted-rd-hd., cd-pltd., No. 10

2шт.

*

WASHER, lock, center bearing screw (Mfr's. No. 1880781)

2шт.

33

RING, retainer, motor drive assist spring (Mfr's. No. 1939111)

1шт.

34

WASHER, retainer motor drive assist spring (Mfr's. No. 1881771)

1шт.

35

NSS

NOT SOLD SEPARAT

BUSHING, split, motor drive assist spring

1шт.

36

SPRING, motor drive assist (Mfr's. No. 1932209)

1шт.

37

WIRE, lock, motor drive (Mfr's. No. 37521)

1шт.

38

COLLAR, motor drive (Mfr's. No. 1838436)

1шт.

39

SPRING, motor drive (Mfr's. No. 1931477)

1шт.

40

NSS

NOT SOLD SEPARAT

GEAR (9 teeth) w/overrunning clutch and shaft (Order motor drive - ref. no. 43)

1шт.

41

NSS

NOT SOLD SEPARAT

BUSHING, split motor drive (Order ref. no. 43)

1шт.

42

NSS

NOT SOLD SEPARAT

BUSHING, oil-less, motor drive (Order ref. no. 43)

2шт.

43

DRIVE, motor, assembly, Composed Of (Mfr's. No. 1939109)

1шт.

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

NSS

NOT SOLD SEPARAT

BUSHING

2шт.

*

COLLAR (Mfr's. No. 1838436)

1шт.

NSS

NOT SOLD SEPARAT

GEAR

1шт.

*

SPRING (Mfr's. No. 1931477)

1шт.

*

WIRE (Mfr's. No. 37521)

1шт.

44

COLLAR, pinion stop (Mfr's. No. 1928021)

1шт.

45

RING, retainer, pinion stop (Mfr's. No. 1928022)

1шт.

46

WASHER, space, drive end (Mfr's. No. 1928023)

1шт.

47

HOUSING, drive, w/bushing, 1862383, oiler, 114998 and wick, 802694 (Mfr's. No. 1939104)

1шт.

48

BUSHING, drive housing (Mfr's. No. 1862383)

1шт.

49

LEVER, shift (Mfr's. No. 1932205)

1шт.

*

NUT, shift lever screw (Mfr's. No. 1926640)

1шт.

*

SCREW, shift lever (Mfr's. No. 1932197)

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

50

PLUNGER, solenoid switch (Mfr's. No. 1939113)

1шт.

*

PIN, shift lever to switch plunger (Mfr's. No. 1932204)

1шт.

51

SPRING, plunger return (Mfr's. No. 1932208)

1шт.

52

SWITCH, solenoid, assembly (Mfr's. No. 1119946)

1шт.

132255

SCREW, machine, slotted-fil-hd., cd-pltd., 1/4-20NC x 1/2" Slotted Fil Hd, 1/4"-20 x 1/2"

2шт.

53

CONNECTOR, solenoid switch (Mfr's. No. 1853307)

1шт.

54

COVER, solenoid switch (Mfr's. No. 1935643)

1шт.

132903

ADAPTER

SCREW, machine, slotted-rd-hd., cd-pltd., No. 10-32NF x 7/16"

2шт.

*

WASHER, cover attaching screw (Mfr's. No. 1923935)

2шт.

55

CONTACT, switch terminal (No. 8) (Mfr's. No. 1935645)

1шт.

56

STUD, short, terminal (No. 8) (Mfr's. No. 1935644)

1шт.

120622

NUT,#8-32

2шт.

*

WASHER, lock, terminal stud (No. 8) (Mfr's. No. 1904615)

1шт.

*

WASHER, insulating, terminal stud (No. 8) (Mfr's. No. 1926969)

1шт.

57

STUD, long, terminal (3/8" dia.) (Mfr's. No. 1927344)

1шт.

*

NUT, terminal stud (3/8-16NC) (Mfr's. No. 805258)

1шт.

*

WASHER, insulating, terminal stud (3/8 ID) (Mfr's. No. 1927345)

1шт.

58

SPRING, contact return (Mfr's. No. 1853342)

1шт.

59

CONTACT, solenoid, w/two retainers and spring (Mfr's. No. 1932243)

1шт.

60

GASKET, cover (Mfr's. No. 1932224)

1шт.

61

STUD, short, terminal (3/8" dia.) (Mfr's. No. 1931814)

1шт.

280136

NUT,3/8"-16, G8

(1/4" thick) 3/8"-16, G8

1шт.

*

NUT, terminal stud (5/32" thick) (Mfr's. No. 805258)

1шт.

120381

WASHER

lock, light, cd-pltd., 3/8"

1шт.

*

WASHER, insulating, terminal stud (3/8" ID) (Mfr's. No. 1927345)

1шт.

62

STUD, long, terminal (No. 8) (Mfr's. No. 1837533)

1шт.

120622

NUT,#8-32

2шт.

*

WASHER, lock, terminal stud (No. 8) (Mfr's. No. 1904615)

1шт.

*

WASHER, insulating, terminal stud (No. 8) (Mfr's. No. 1926969)

1шт.

63

CLIP, terminal (No. 8) (Mfr's. No. 1937381)

1шт.

*

GASKET, solenoid switch (Mfr's. No. 1948573)

1шт.
