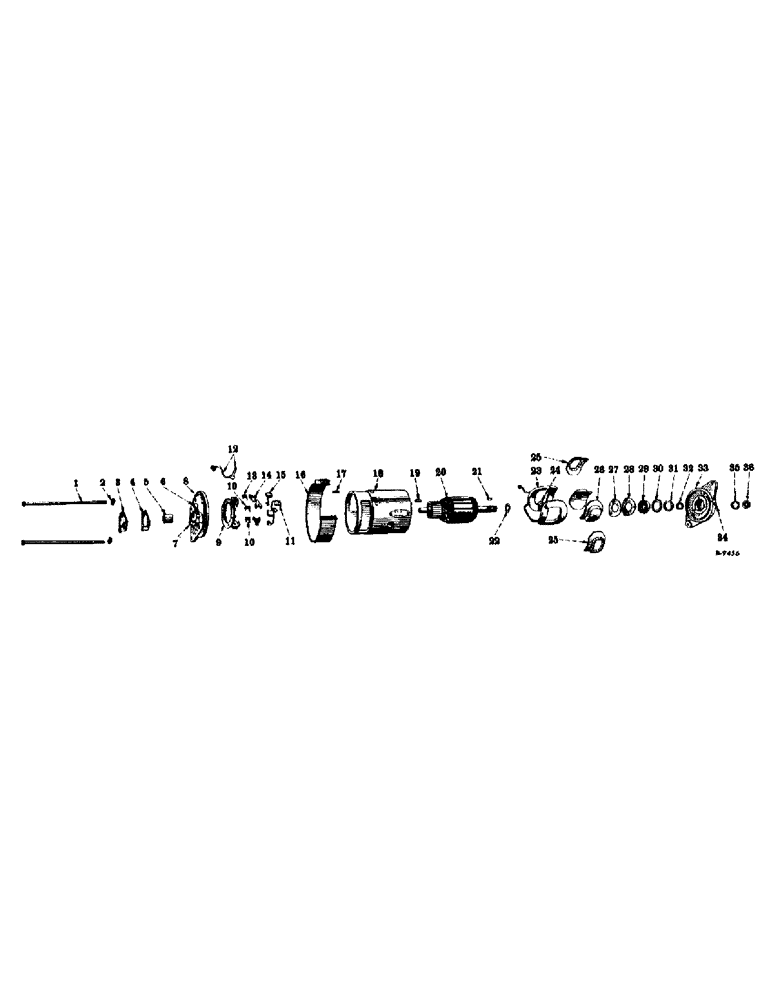

Запчасти Case IH 300 (148) - ELECTRICAL SYSTEM, DIESEL ENGINE, GENERATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

366769R91

GENERATOR, (12 volt) assembly (Mfr's. No. 1101001)

1шт.

1

BOLT, thru (Mfr's. No. 815018)

2шт.

2

WASHER, lock, heavy, cd-pltd., 5/16" (Mfr's. No. 120638)

2шт.

3

PLATE, cover, commutator end frame (Not used on tractors equipped with tachometer) (Mfr's. No. 820524)

1шт.

SCREW, commutator end frame cover plate (Mfr's. No. 1886496)

3шт.

WASHER, lock, medium, cd-pltd., No. 8 (Mfr's. No. 121841)

3шт.

4

GASKET, commutator end frame cover plate (Mfr's. No. 817220)

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING, commutator end (Order ref. no. 8)

1шт.

6

OILER, commutator end w/cap and spring (Mfr's. No. 1880635)

1шт.

WICK, commutator end oiler (Mfr's. No. 804076)

1шт.

7

PLUG, commutator end oiler wick (Mfr's. No. 1911097)

1шт.

8

FRAME, commutator end, assembly, Composed Of (Mfr's. No. 1913564)

1шт.

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

NSS

NOT SOLD SEPARAT

FRAME

1шт.

OILER (Mfr's. No. 1880635)

1шт.

PIN (Mfr's. No. 809062)

1шт.

PLUG (Mfr's. No. 1911097)

1шт.

WICK (Mfr's. No. 804076)

1шт.

9

PLATE, brush, w/three brush holders (Mfr's. No. 1913565)

1шт.

SCREW, brush plate attaching (Mfr's. No. 1886496)

3шт.

WASHER, lock, medium, cd-pltd., No. 8 (Mfr's. No. 121841)

3шт.

10

SPRING, brush main (Insulated) (Mfr's. No. 1850767)

1шт.

11

BRUSH, main (Mfr's. No. 1860344)

2шт.

SCREW, slotted-rd-hd., cd-pltd., No. 6-32NC x 1/4" (Mfr's. No. 132688)

2шт.

WASHER, lock, brush lead attaching screw (Mfr's. No. 1904377)

2шт.

12

POLE, armature terminal (Includes lead, stud, 1858751 and terminal) (Mfr's. No. 1858754)

1шт.

BUSHING, insulating, terminal stud (Mfr's. No. 1885090)

1шт.

NUT, hex., cd-pltd., No. 12-24NC (Mfr's. No. 121743)

2шт.

STUD, armature terminal (Mfr's. No. 1858751)

1шт.

WASHER, lock, terminal stud (Mfr's. No. 1904661)

2шт.

WASHER, terminal stud (Mfr's. No. 1881409)

1шт.

WASHER, insulating, terminal stud (Mfr's. No. 1858753)

1шт.

13

SPRING, brush, third and ground (Mfr's. No. 1850760)

2шт.

14

HOLDER, brush (Mfr's. No. 1850759)

3шт.

WASHER, plain, brush holder spacer (Mfr's. No. 1857412)

3шт.

15

BRUSH, third (Mfr's. No. 1906940)

1шт.

SCREW, slotted-rd-hd., cd-pltd., No. 6-32NC x 1-1/4" (Mfr's. No. 132688)

1шт.

WASHER, lock, brush lead attaching screw (Mfr's. No. 1904377)

1шт.

16

BAND, cover w/nut, 120614 and screw, 132926 (Mfr's. No. 1872638)

1шт.

SCREW, machine, slotted-rd-hd., cd-pltd., No. 10-32NF x 1-1/4" (Mfr's. No. 132926)

1шт.

NUT, hex., cd-pltd., No. 10-32NF (Mfr's. No. 120614)

1шт.

17

PIN, dowel, commutator end frame (Mfr's. No. 809062)

1шт.

18

NSS

NOT SOLD SEPARAT

FRAME

1шт.

19

PIN, dowel, drive end frame (Mfr's. No. 809593)

1шт.

20

ARMATURE (Mfr's. No. 1932746)

1шт.

21

KEY, woodruff, alloy-stl., No. 5 (Drive end) (Mfr's. No. 124545)

1шт.

22

WASHER, space, drive end (Mfr's. No. 809945)

1шт.

23

COIL SET, field w/insulator, 1914491, stud, 1858751 and terminal (Mfr's. No. 1922700)

1шт.

24

STUD, field terminal (Mfr's. No. 1858751)

1шт.

BUSHING, insulating, terminal stud (Mfr's. No. 1885090)

1шт.

NUT, hex., cd-pltd., No. 12-24NC (Mfr's. No. 121743)

2шт.

WASHER, lock, terminal stud (Mfr's. No. 1904661)

2шт.

WASHER, terminal stud (Mfr's. No. 1881409)

1шт.

WASHER, insulating, terminal stud (Mfr's. No. 1858753)

1шт.

25

INSULATOR, field coil (Mfr's. No. 1914491)

2шт.

26

SHOE, pole (Mfr's. No. 1914618)

2шт.

SCREW, pole shoe (Mfr's. No. 1843646)

2шт.

27

PLATE, ball bearing retainer (Mfr's. No. 1911263)

1шт.

SCREW, bearing, retainer plate (Mfr's. No. 1904370)

3шт.

WASHER, lock, bearing, retainer plate screw (Mfr's. No. 1880781)

3шт.

28

GASKET, ball bearing retainer plate (Mfr's. No. 1912008)

1шт.

29

BEARING, ball (Drive end) (Mfr's. No. 954378)

1шт.

30

RETAINER, drive end felt washer (Mfr's. No. 819104)

1шт.

31

WASHER, felt, drive end (Mfr's. No. 809961)

1шт.

32

SPACER, pulley (Mfr's. No. 817224)

1шт.

33

FRAME, drive end, w/oiler, 1880641 (Mfr's. No. 1873830)

1шт.

34

OILER, drive end bearing, w/cap and spring (Mfr's. No. 1880641)

1шт.

35

WASHER, lock, drive end shaft nut (Mfr's. No. 804000)

1шт.

36

NUT, drive end shaft (Mfr's. No. 806915)

1шт.
