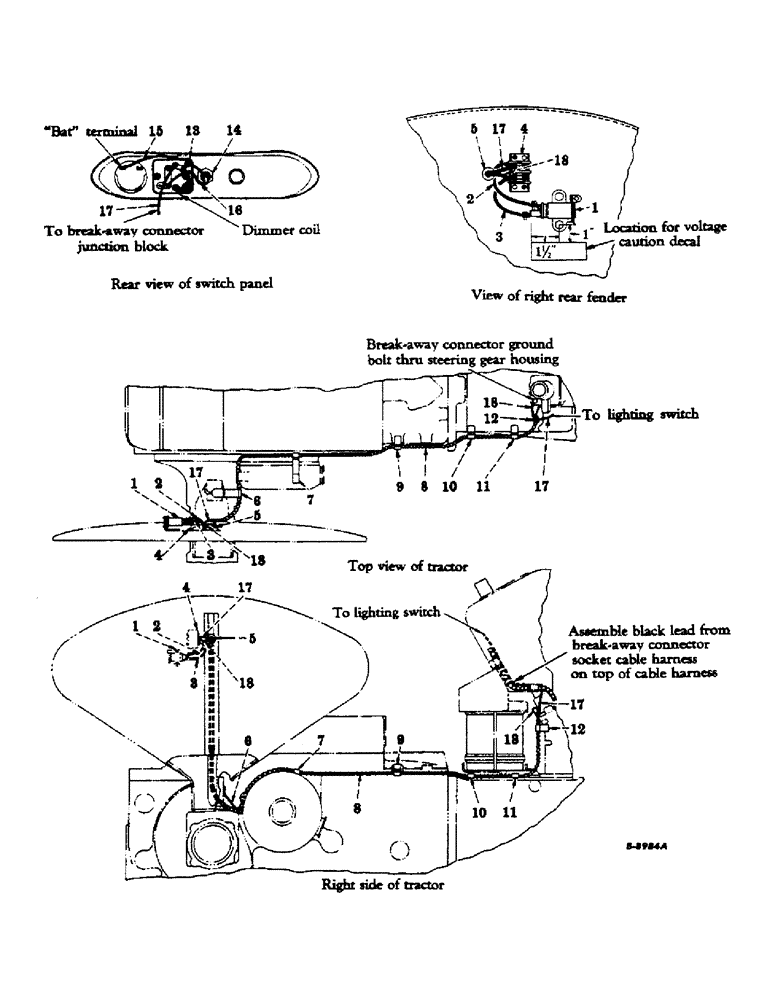

Запчасти Case IH 300 (142) - ELECTRICAL SYSTEM, CARBURETED ENGINE, ELECTRICAL BREAK-AWAY CONNECTOR SOCKET, SPECIAL (06) - ELECTRICAL SYSTEMS

363923R91

PACKAGE, electrical break-away connector socket

1шт.

1

362002R92

SOCKET

electrical break-away connector, w/cap, two screws and spring

1шт.

114378

NUT, hex., 1/4-20NC

2шт.

120572

SCREW, machine, slotted-truss-hd., 1/4-20NC x 3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

CABLE, break-away connector socket to junction block (5" long) (Order cable, 358572R92, terminal (No. 10) and sleeve, 364003R1)

1шт.

364003R1

SLEEVE, terminal insulating

1шт.

TERMINAL, electrical, brs., No. 10 (Type B)

1шт.

3

CABLE, break-away connector socket to junction block ground terminal (4-1/2" long) (Order cable, 358572R92, terminal (No. 10) and sleeve, 364003R1)

1шт.

364003R1

SLEEVE, terminal insulating

1шт.

TERMINAL, electrical, brs., No. 10 (Type B)

1шт.

4

363845R91

BLOCK, rear light and break-away connector socket junction, w/four screws

1шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

110633

NUT,#10-24

2шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

110502

SCREW,Slotted Rd Hd, #10-24 x 3/4"

machine, slotted-rd-hd., No. 10-24NC x 3/4"

2шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

5

363846R1

GROMMET

rear light and break-away connector socket harness

1шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

6

363843R1

CLIP, rear light and break-away connector socket harness (On independent power take-off operating handle quadrant screw for tractor equipped with independent power take-off)

1шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

7

363844R1

CLIP, rear light and break-away connector socket harness

1шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

8

363839R91

HARNESS, rear light and break-away connector socket, w/two cables

1шт.

These parts are not required for use on International 300 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

9

363842R1

CLIP, rear light and break-away connector socket harness (On brake lock operating rod bracket screw)

1шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

10

355097R1

CLIP, rear light and break-away connector socket harness (On clutch housing top cover mounting screw, R.H. side rear)

1шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

11

355097R1

CLIP, rear light and break-away connector socket harness (On clutch housing top cover mounting screw, R.H. side, third from rear)

1шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

12

56275D

CLIP, rear light and break-away connector socket harness (On steering gear housing upper rear screw)

1шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

13

363130R91

SWITCH

lighting, assembly (6 volt) (For components see list of parts under details of "Lighting Switch")

1шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

13

363131R91

SWITCH

lighting assembly (12 volt) (For components see list of parts under details of "Lighting Switch")

1шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

14

362669R91

HOUSING

fuse, w/two cables, knob, 356445R91, nut and washer (Illustrated with "Engine Controls and Instruments")

1шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

15

CABLE, fuse housing to starting and ignition lock switch (For tractors equipped with battery ignition) (Order 362669R91)

1шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

15

CABLE, fuse housing to push button starting switch (For tractors equipped with magneto ignition) (Order 362669R91)

1шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

16

CABLE, fuse housing to lighting switch (Order 362669R91)

1шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

17

CABLE, combination rear light and break-away connector socket junction block to lighting switch (Black) (Order 363839R91)

1шт.

18

CABLE, combination rear light and break-away connector socket junction block ground terminal to ground (Pink) (Order 363839R91)

1шт.

364004R1

BRACKET, break-away connector socket mounting

1шт.

These parts are not required for use on International 300 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

103026

NUT,3/8"-24, G5

1шт.

These parts are not required for use on International 300 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

These parts are not required for use on International 300 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

120575

SCREW, machine, truss-hd., 1/4-20NC x 1-1/2"

2шт.

These parts are not required for use on International 300 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

1шт.

These parts are not required for use on International 300 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

These parts are not required for use on International 300 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

1шт.

These parts are not required for use on International 300 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/2"

1шт.

These parts are not required for use on International 300 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

These parts are not required for use on International 300 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

These parts are not required for use on International 300 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

358572R92

1шт.

CABLE, w/two sleeves and terminals (To make two break-away connector socket cables from this cable, measure and cut length needed for each cable from each end terminal, then assemble one sleeve, 364003R1 and one terminal, (No. 10) to complete each cable) NOTE - sleeves, 364003R1 and terminals, (No. 10) must be ordered separately.

1шт.

106653

FUSE

type AGC 20 amp.

1шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

10815V

FUSE

cartridge type

1шт.

These additional parts are not included in the break-away connector socket package but are necessary to adapt tractors not equipped with lighting system so they may use the connector socket.

1шт.

364002R1

SPACER,3/8" Pipe x 1"

connector socket mounting bracket (1" long)

1шт.

These parts are not required for use on International 300 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

364171R1

BRACKET

SPACER, connector socket mounting bracket (9/16" long)

1шт.

These parts are not required for use on International 300 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

61401V

SPACER, connector socket mounting bracket (1-3/4" long)

2шт.

These parts are not required for use on International 300 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

TERMINAL, electrical, brs., 7/16" (Type B)

1шт.

These parts are not required for use on International 300 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.
