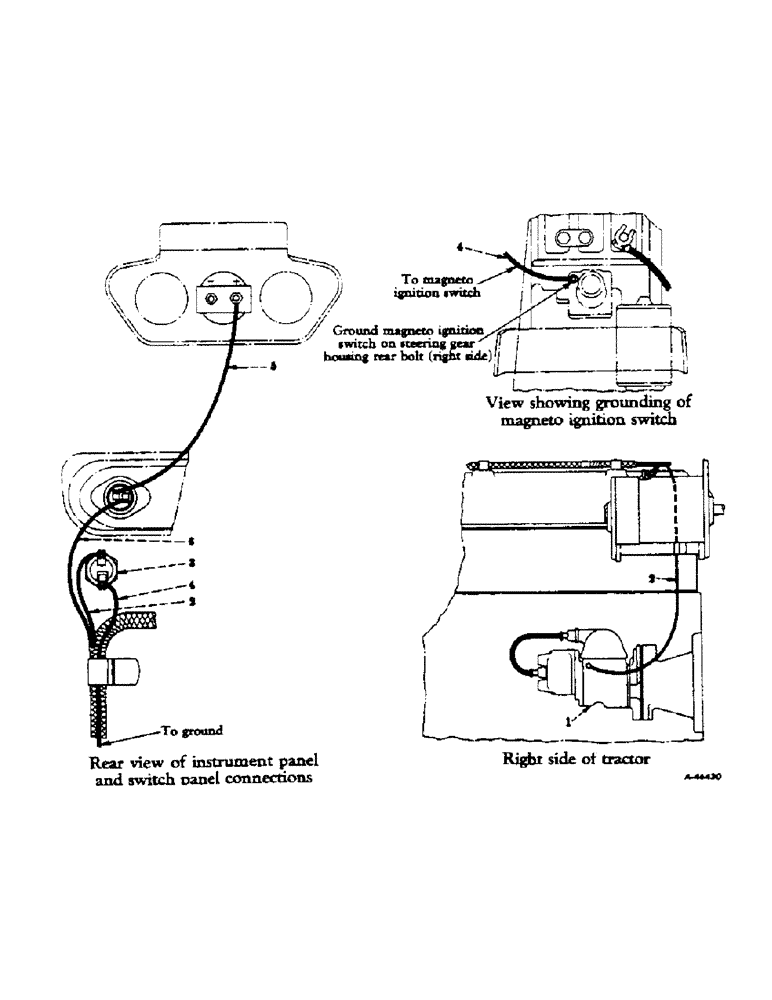

Запчасти Case IH 300 (141) - ELECTRICAL SYSTEM, CARBURETED ENGINE, IGNITION AND LIGHTING SYSTEM, 6 & 12 VOLT (06) - ELECTRICAL SYSTEMS

1

363850R91

MAGNETO, assembly (For components see list of parts under details of "Magneto") (See Note B)

1шт.

114494

NUT,Jam, 3/8"-24, G5

(See Notes A and B) Jam, 3/8"-24, G5

1шт.

NLS

NO LONGER SERVICED

(Lower) (See Note A) Hex, 3/8"-16 x 1 1/2", G5

1шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

(Upper) (Not used - See Note A) (See Note B) Hex, 3/8"-16 x 1 7/8", G5

1шт.

365739R1

STUD, hydraulic pump (See Notes A and B)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

120930

WASHER

lock, external tooth 3/8" (See Notes A and B)

1шт.

24523D

WASHER

magneto mounting screw (See Note B)

2шт.

2

CABLE, magneto to magneto ignition switch (Black)

1шт.

3

367168R91

SWITCH, magneto ignition, w/two keys, mounting nut and two terminal screws (See Note B)

1шт.

4

367165R91

CABLE, magneto ignition switch to ground (On steering gear upper housing cover for valve adapter attaching screw) (Black) (See Note B)

1шт.

5

367167R91

CABLE, charge indicator to push button starting switch (Black) (See Note B)

1шт.

6

CABLE, push button switch to solenoid switch (Orange)

1шт.
