(318) - ATTACHMENTS, PRE-SCREENER, SPECIAL, FOR DIESEL ENGINE TRACTORS, PRE-SCREENER, TWO PIECE

Запчасти Case IH 300 (318) - ATTACHMENTS, PRE-SCREENER, SPECIAL, FOR DIESEL ENGINE TRACTORS, PRE-SCREENER, TWO PIECE Attachments

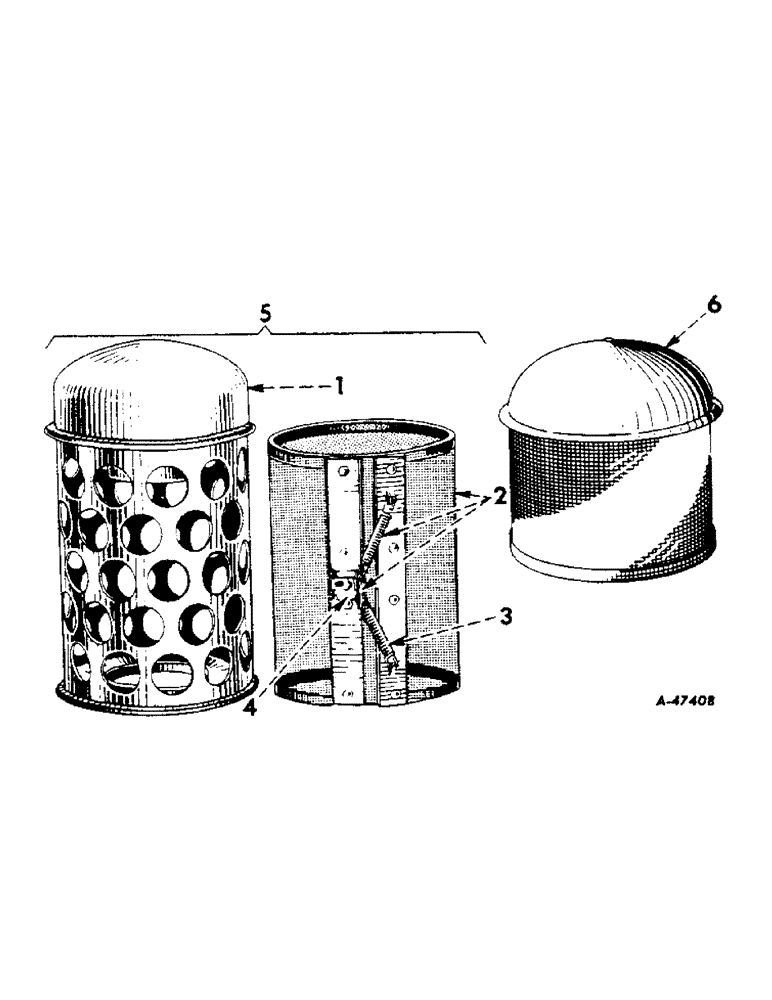

Схема запчастей Case IH 300 - (318) - ATTACHMENTS, PRE-SCREENER, SPECIAL, FOR DIESEL ENGINE TRACTORS, PRE-SCREENER, TWO PIECE Attachments
1
2
5
4
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

353634R92

BODY

pre-screener

1шт.

2

353637R91

SCREEN

pre-screener, w/clip, 353758R1 and two springs, 353639R1

1шт.

3

353639R1

VALVE SPRING

SPRING, tension, screen lock

2шт.

4

353758R1

CLIP

screen lock spring

1шт.

5

353411R92

FILTER ASSY

PRE-SCREENER, air cleaner (Optional with 367721R91)

1шт.

6

367721R91

SCREEN

PRE-SCREENER, air cleaner (Optional with 353411R92), one piece

1шт.
