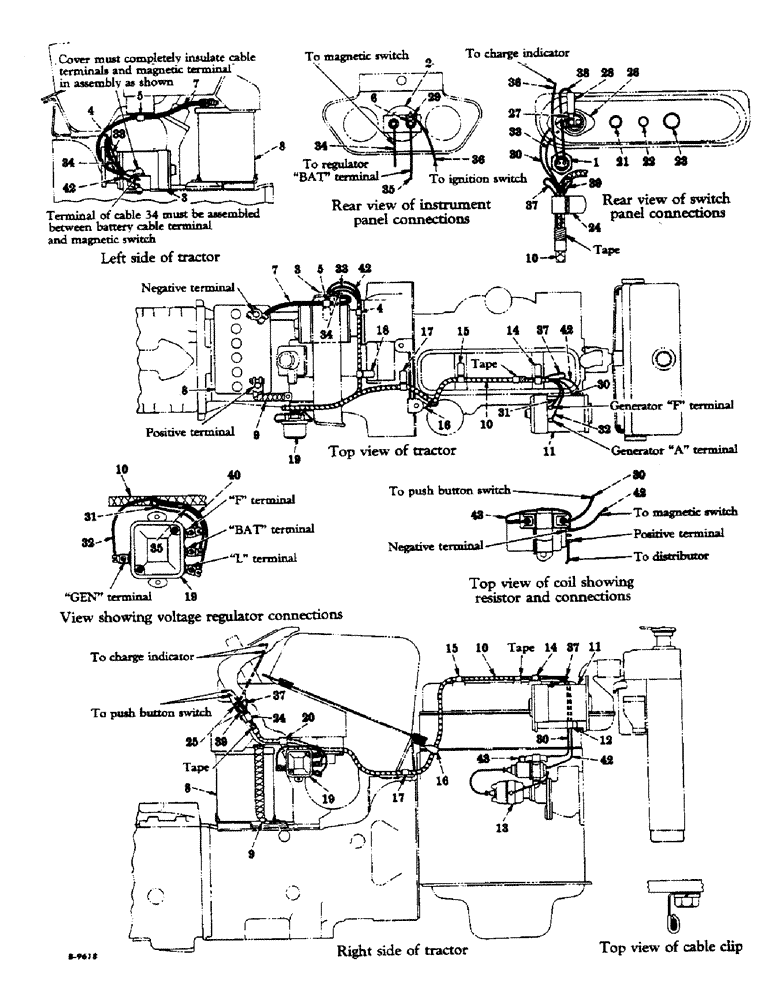

Запчасти Case IH 300 (124) - ELECTRICAL SYSTEM, CARBURETED ENGINE, IGNITION AND STARTING SYSTEM, 12 VOLT (06) - ELECTRICAL SYSTEMS

.

SERVICE PARTS FOR TRACTORS EQUIPPED WITH DISTILLATE, KEROSENE OR GASOLINE BURNING ENGINES (6 Volt) (Column A)

1шт.

.

SERVICE PARTS FOR TRACTORS EQUIPPED WITH DISTILLATE, KEROSENE OR GASOLINE BURNING ENGINES (12 Volt) (Column B)

1шт.

1

366313R91

SWITCH

SPARE PART SWITCH, ignition lock, w/two cables and two keys

1шт.

2

360053R91

INDICATOR

INDICATOR, charge, w/clamp, six nuts, and washers

1шт.

3

362488R91

MOTOR, cranking (6 volt) assembly (For componets see list of parts under details of "Cranking Motor") [A]

1шт.

3

104217A2R

REMAN-STARTER

Remanufactured Starter 6 volt, intertia

1шт.

3

104217A1C

CORE-STARTER

Return Number, Starter 6 volt, inertia

1шт.

3

368871R91

SPARE PART MOTOR, cranking (12 volt) assembly (For componets see list of parts under details of "Cranking Motor") [B]

1шт.

280136

NUT,3/8"-16, G8

NUT, , Machine screw, (On solenoid switch terminal) 3/8"-16, G8

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

110730

LOCK WASHER

WASHER, lock, light, 3/8" (On solenoid switch terminal)

1шт.

142186H

WASHER

WASHER, plain, 3/8" ID x 11/16" OD x No. 22 ga. (On solenoid switch terminal) [A]

1шт.

4

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (On cranking motor upper LH mounting bolt)

1шт.

5

362126R1

CLIP

CLIP, cable harness (On rear fuel tank and cowl support LH side)

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

BOLT, Hex, 3/8"-24 x 5/8", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

365501R1

TERMINAL CONNECTOR

TERMINAL, line connector

1шт.

7

366153R91

CABLE

CABLE, battery to solenoid switch (6 volt), w/bolt 356062R91 and cover, 364910R1 [A]

1шт.

7

366153R91

CABLE

CABLE, battery to magnetic switch (12 volt), w/bolt, 356062R91 and cover, 364910R1 [B]

1шт.

356062R91

BOLT

BOLT, terminal, w/nut, sleeve, and washer

1шт.

8

354210R91

SPARE PART BATTERY, (Globe-Union, 6 volt, wet charged) (Optional with 355196R93) [A]

1шт.

8

366879R91

BATTERY, (Auto-Lite, 12 volt, wet charged) [B]

1шт.

8

355196R91

BATTERY, (Auto-Lite, 6 volt, wet charged) (Optional with 354210R91) [A]

1шт.

9

363659R91

CABLE

STRAP, battery to ground, w/bolt, 356062R91 (On rear frame cover attaching screw) [A]

1шт.

9

358987R92

CABLE

STRAP, battery to ground, w/bolt, 356062R91 (On steering gear housing attaching screw) [B]

1шт.

356062R91

BOLT

BOLT, terminal, w/nut, sleeve, and washer

1шт.

10

366315R91

SPARE PART HARNESS, cable (6 volt) [A]

1шт.

10

368884R91

SPARE PART HARNESS, cable (12 volt) [B]

1шт.

11

362657R91

SPARE PART GENERATOR, (6 volt) assembly (For components see list of parts under details of "Generator") [A]

1шт.

11

282653R91

SPARE PART GENERATOR, (12 volt) assembly (For components see list of parts under details of "Generator") [B]

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

362667R91

CLIP, cable harness (On generator front mounting screw)

1шт.

13

357935R91

OIL DISTRIBUTOR

DISTRIBUTOR, assembly (For components see list of parts under details of "Distributor") (Distillate) [A]

1шт.

13

364653R91

DISTRIBUTOR

DISTRIBUTOR, assembly (For components see list of parts under details of "Distributor") (Gasoline)

1шт.

13

366982R91

SPARE PART DISTRIBUTOR, assembly (Distillate) (For components see list of parts under details of "Distributor") [B]

1шт.

14

362123R1

CLIP

CLIP, cable harness (On valve cover front stud)

1шт.

15

362123R1

CLIP

CLIP, cable harness (On valve cover rear stud)

1шт.

16

363660R1

CLIP

CLIP, cable harness (On fuel tank front RH mounting screw)

1шт.

17

362123R1

CLIP

CLIP, cable harness (On fuel tank front support RH mounting screw)

1шт.

18

363662R1

CLIP

SPARE PART CLIP, cable harness (On clutch housing pad, rear RH bolt)

1шт.

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 7/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

19

360898R91

REGULATOR

REGULATOR, voltage, (6 volt) assembly (For components see list of parts under details of "Voltage Regulator") [A]

1шт.

19

360899R91

REGULATOR

REGULATOR, voltage, (12 volt) assembly (For components see list of parts under details of "Voltage Regulator") [B]

1шт.

181306

BOLT

SCREW, cap, hex-hd., 1/4-28NF x 5/16"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

CLIP, cable harness (Welded to the instrument panel housing)

1шт.

21

432600

PLUG, button, chr-pltd., 17/32" (Used to plug hole for lighting switch on tractors without lighting system)

1шт.

22

432466

BEVEL PINION

PLUG, button, chr-pltd., 17/32" (Used to plug hole for fuse housing on tractors without lighting system)

1шт.

23

432281

HOLE PLUG BUTTON,29/32"

PLUG, button, chr-pltd., (Used to plug hole for cigarette lighter on tractors without lighting system) 29/32"

1шт.

24

CLIP, cable harness (Welded to instrument panel housing)

1шт.

25

CLIP, cable harness (Welded to instrument panel housing)

1шт.

26

366316R91

SWITCH

SWITCH, push button starting, (IH) assembly (For components see list of parts under details of "Push Button Starting Switch") (Optional with 366317R91)

1шт.

26

366317R91

IGNITION SWITCH

SWITCH, push button starting (Indak Mfg. Corp.) assembly, Composed Of

1шт.

120611

NUT,#10 - 32

NUT

2шт.

131958

ELBOW

SCREW

2шт.

132903

ADAPTER

SCREW

2шт.

NSS

NOT SOLD SEPARAT

SWITCH

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

27

36550R1

TERMINAL, line connector

2шт.

28

366456R1

SPARE PART BODY, connector-short

1шт.

29

366456R1

SPARE PART BODY, connector-short

1шт.

30

CABLE, push button starting switch terminal to coil (Black) (6 volt) (Order harness, 366315R91, ref. no. 10) [A]

1шт.

30

CABLE, push button starting switch terminal to resistor (Black) (12 volt) (Order harness, 368884R91, ref. no. 10) [B]

1шт.

31

CABLE, regulator "F" terminal to generator "F" terminal (Yellow) (Order harness, ref. no. 10)

1шт.

32

CABLE, regulator "GEN" terminal to generator "A" terminal (Light blue) (Order harness, ref. no. 10)

1шт.

33

CABLE, push button starting switch terminal to solenoid switch (Orange) (6 volt) (Order harness, 366315R91, ref. no. 10) [A]

1шт.

33

CABLE, push button starting switch terminal to magnetic switch (Orange) (12 volt) (Order harness, 368884R91, ref. no. 10) [B]

1шт.

34

CABLE, charge indicator to solenoid switch (Red) (6 volt) (Order harness, 366315R91, ref. no. 10) [A]

1шт.

34

CABLE, charge indicator to magnetic switch (Red) (12 volt) (Order harness, 368884R91, ref. no. 10) [B]

1шт.

35

CABLE, charge indicator to regulator "Bat" terminal (Gray) (Order harness, ref. no. 10)

1шт.

36

CABLE, ignition switch to charge indicator (Order switch, 366313R91, ref. no. 1)

1шт.

37

CABLE, voilet (Taped at both ends)

1шт.

38

CABLE, ignition switch to push button starting switch (Order switch 366313R91, ref. no. 1)

1шт.

39

CABLE, light green (Taped back at one end)

1шт.

40

CABLE, regulator "L" terminal (Light green) (Order harness, ref. no. 10)

1шт.

41

364910R1

BOOT

COVER, solenoid terminal

1шт.

42

358317R91

SPARE PART CABLE, magnetic switch to coil (Natural) [B]

1шт.

43

357929R92

ELECTRIC CABLE

CABLE, resistor to coil [B]

1шт.

106653

FUSE

FUSE, type AGC, (20 Amp.) [A]

1шт.

9426333

FUSE,15 Amp, Type 3AG

FUSE, (15 Amp.) [B]

1шт.

368870R91

SPARE PART CONVERSION PACKAGE, 12 volt electrical equipment (Used to equip tractors with 12 volt electrical system), Consists Of

1шт.

263303R1

SPARE PART BAFFLE

1шт.

357929R92

ELECTRIC CABLE

CABLE

1шт.

358317R1

CABLE

1шт.

368840R91

RESISTOR

CLAMP

1шт.

43039D

SPARE PART COIL

1шт.

368871R91

SPARE PART CRANKING MOTOR

1шт.

90426H

SPARE PART FAN

1шт.

9426333

FUSE,15 Amp, Type 3AG

FUSE

1шт.

282653R91

SPARE PART GENERATOR

1шт.

368591R1

PULLEY

PULLEY

1шт.

368594R1

SPARE PART RETAINER

1шт.

360899R1

VOLTAGE REGULATOR

1шт.
