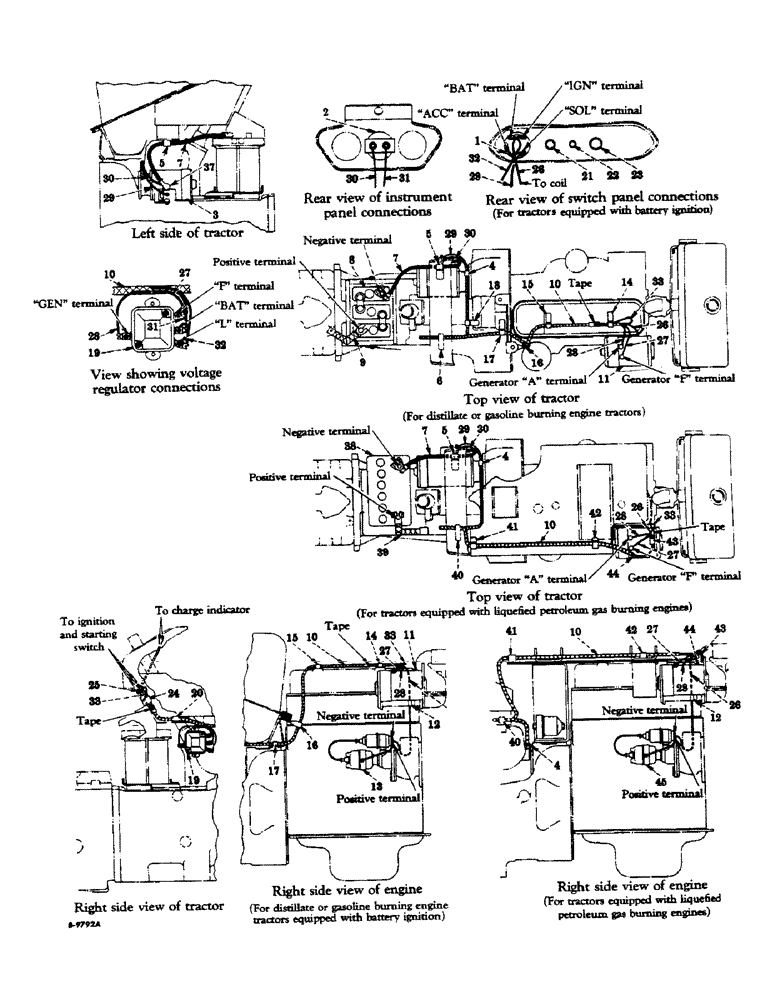

Запчасти Case IH 300 (118) - ELECTRICAL SYSTEM, CARBURETED ENGINE, IGNITION AND STARTING SYSTEM, 6 AND 12 VOLT (06) - ELECTRICAL SYSTEMS

.

SERVICE PARTS FOR TRACTORS EQUIPPED WITH DISTILLATE OR GASOLINE BURNING ENGINES (6 Volts) (Column A)

1шт.

.

SERVICE PARTS FOR TRACTORS EQUIPPED WITH LIQUEFIED PETROLEUM GAS BURNING ENGINES (12 Volt) (Column B)

1шт.

1

361998R93

SWITCH

SWITCH, starting and ignition lock, assembly (For components see list of parts under details of "Starting And Ignition Lock Switch") (Order switch, 300557R91) (See Note A)

1шт.

1

300557R91

SWITCH

SWITCH, starting and ignition lock, assembly (Not illustrated) (Will work for 361998R93)

1шт.

2

360053R91

INDICATOR

INDICATOR, charge, w/clamp, six nuts and six washers

1шт.

3

362488R91

MOTOR, cranking, (6 volt) assembly (For components see list of parts under details of "Cranking Motor") [A]

1шт.

3

104217A2R

REMAN-STARTER

Remanufactured Starter 6 volt, intertia

1шт.

3

104217A1C

CORE-STARTER

Return Number, Starter 6 volt, inertia

1шт.

3

365806R91

SPARE PART MOTOR, cranking (12 volt), assembly (For components see list of parts under details of "Cranking Motor") [B]

1шт.

280136

NUT,3/8"-16, G8

NUT, , Machine screw, (On solenoid switch terminal) 3/8"-16, G8

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

110730

LOCK WASHER

WASHER, lock, light, 3/8" (On solenoid switch terminal)

1шт.

142186H

WASHER

WASHER, plain, 3/8" I.D. x 11/16" O.D. x No. 22 ga. (On solenoid switch terminal) [A]

1шт.

4

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (On cranking motor upper L.H. mounting screw)

1шт.

5

362123R1

CLIP

CLIP, battery to solenoid switch cable

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

BOLT, Hex, 3/8"-24 x 5/8", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

362123R1

CLIP

CLIP, cable harness - International 300 utility tractor (S/N 501 to 25414) [A]

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

BOLT, [A] Hex, 3/8"-24 x 5/8", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, [A] 3/8"

1шт.

7

366153R91

CABLE

CABLE, battery to solenoid switch, w/bolt, 356062R91 and cover, 364910R1 (Will work for 363657R93)

1шт.

356062R91

BOLT

BOLT, terminal, w/nut, sleeve and washer

1шт.

8

354210R91

SPARE PART BATTERY (Globe Union) (6 volt-wet charged) (Optional with 355196R93) [A]

1шт.

8

355196R93

SPARE PART BATTERY (Auto Lite)-6 volt-wet charged) (Optional with 354210R91) [A]

1шт.

9

363659R91

CABLE

STRAP, battery to ground, w/bolt, 356062R91 (On rear frame cover attaching screw) [A]

1шт.

356062R91

BOLT

BOLT, terminal, w/nut, sleeve and washer [A]

1шт.

10

363658R91

HARNESS

HARNESS, cable, w/eight cables

1шт.

11

362657R91

SPARE PART GENERATOR, (6 volt) assembly (For components see list of parts under details of "Generator" [A]

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, [A] 5/16"-18, G5

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, [A] Hex, 5/16"-18 x 1 1/8", G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (A) 5/16"

2шт.

12

362667R1

CLIP

CLIP, cable harness (On generator bracket front mounting screw)

1шт.

13

357935R91

OIL DISTRIBUTOR

DISTRIBUTOR, assembly (For components see list of parts under details of "Distributor" (See Note A) (Distillate) [A]

1шт.

13

364653R91

DISTRIBUTOR

DISTRIBUTOR, assembly (Will work for 362722R91) (For components see list of parts under details of "Distributor") (See Note A) (Gasoline) [A]

1шт.

14

362123R1

CLIP

CLIP, cable harness (On valve cover front stud) [A]

1шт.

15

362123R1

CLIP

CLIP, cable harness (On valve cover rear stud) [A]

1шт.

16

363660R1

CLIP

CLIP, cable harness (On fuel tank front R.H. mounting screw) [A]

1шт.

17

362123R1

CLIP

CLIP, cable harness (On fuel tank front support R.H. mounting screw) [A]

1шт.

18

363662R1

CLIP

SPARE PART CLIP, angle, cable harness [A]

1шт.

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 7/8" [A]

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, [A] 7/16"

1шт.

19

360898R91

REGULATOR

REGULATOR, voltage, (6 volt) assembly (For components see list of parts under details of "Voltage Regulator") [A]

1шт.

19

360899R91

REGULATOR

REGULATOR, voltage, (12 volt) assembly (For components see list of parts under details of "Voltage Regulator") [B]

1шт.

181306

BOLT

SCREW, cap, hex-hd., 1/4-28NF x 5/16"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

CLIP, cable harness (Welded to instrument panel housing)

1шт.

21

432600

PLUG, button, chr-pltd., 23/32" (Used to plug hole for lighting switch on tractors not equipped with lighting system)

1шт.

22

432466

BEVEL PINION

PLUG, button, chr-pltd., 17/32" (Used to plug hole for fuse housing on tractors not equipped with lighting system)

1шт.

23

432281

HOLE PLUG BUTTON,29/32"

PLUG, button, chr-pltd., (Used to plug hole for cigarette lighter on tractors not equipped with cigarette lighter) 29/32"

1шт.

24

CLIP, cable harness (Welded to instrument panel housing)

1шт.

25

CLIP, cable harness (Welded to instrument panel housing)

1шт.

26

CABLE, magneto ignition switch terminal to magneto (Black) (Order 363658R91) (See Note B) [A]

1шт.

132100

SEAL KIT,Slotted Fil Hd, #10-32 x 5/16"

SPARE PART SCREW, machine, slotted-fil-hd., cd-pltd., No. 10-32NF x 5/16" (In magento short circuiting terminal) (See Note B) [A]

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, (In magneto short circuiting terminal) (See Note B) [A] #10

1шт.

26

CABLE, starting and ignition lock switch "IGN" terminal to coil (Black) (Order 363658R91) (See Note A)

1шт.

27

CABLE, regulator "F" terminal to generator "F" terminal (Yellow) (Order 363658R91)

1шт.

28

CABLE, regulator "GEN" terminal to generator "A" terminal (Light blue) (Order 363658R91)

1шт.

29

CABLE, starting and ignition lock switch "SOL" terminal to solenoid switch (Orange) (Order 363658R91) (See Note A)

1шт.

29

CABLE, push button starting switch terminal to solenoid switch (Orange) (Order 363658R91) (See Note B) [A]

1шт.

30

CABLE, charge indicator to solenoid switch (Red) (Order 363658R91)

1шт.

31

CABLE, charge indicator to regulator "Bat" terminal (Gray) (Order 363658R91)

1шт.

32

CABLE, starting and ignition lock switch "Bat" terminal to regulator "L" terminal (Light green) (Order 363658R91) (See Note A)

1шт.

32

CABLE, push button starting switch terminal to regulator "L" terminal (Light green) (Order 363658R91) (See Note B) [A]

1шт.

33

CABLE, lighting switch to junction block (Violet) (Order 363658R91) NOTE - On tractors not equipped with lighting system turn back both ends of the cable and securely tape the cable to the harness.

1шт.

34

54207DB

SWITCH

SWITCH, magneto ignition, assembly (For components see list of parts under details of "Magneto Ignition Switch" (See Note B) [A]

1шт.

35

235357R91

SWITCH, push button starting, assembly (For components see list of parts under details of "Push Button Starting Switch") (See Note B) [A]

1шт.

36

363850R91

SPARE PART MAGNETO, assembly (For componets see list of parts under details of "Magneto") (See Note B) [A]

1шт.

114494

NUT,Jam, 3/8"-24, G5

NUT, (See Note B and C) [A] Jam, 3/8"-24, G5

1шт.

NLS

NO LONGER SERVICED

(Lower) (See Note B) [A] Hex, 3/8"-16 x 1 1/2", G5

1шт.

179846

LEVER

BOLT (SPREADER), (Upper) (See Note B) (Not used - See Note C) [A] Hex, 3/8"-16 x 1 7/8", G5

1шт.

365739R1

SPARE PART STUD, hydraulic pump (Will work for 32445D) (See Notes B and C) [A]

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See Note B) [A] 3/8"

2шт.

120930

WASHER

WASHER, lock, external-tooth, 3/8" (See Notes B and C) [A]

1шт.

24523D

WASHER

WASHER, magneto mounting screw (See Note B) [A]

2шт.

37

364910R1

BOOT

COVER, solenoid terminal

1шт.

38

365861R91

SPARE PART BATTERY (Auto-Lite 12 volt-wet charged) [B]

1шт.

39

358987R92

CABLE

STRAP, battery to ground w/bolt, 356062R91 (On steering gear housing attaching screw) [B]

1шт.

356062R91

BOLT

BOLT, terminal, w/nut, sleeve and washer [B]

1шт.

40

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness [B]

1шт.

103026

NUT,3/8"-24, G5

NUT, [B] 3/8"-24, G5

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1" [B]

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, [B] 3/8"

1шт.

41

362121R1

CLIP

CLIP, cable harness [B]

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, [B] Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, [B] 1/4"

1шт.

42

358986R1

CABLE CLIP

CLIP, cable harness (On fuel tank front RH attaching screw) [B]

1шт.

43

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (On generator brace adjusting screw) [B]

1шт.

44

363727R91

SPARE PART GENERATOR, (12 volt) assembly (For components see list of parts under details of "Generator") [B]

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, [B] 5/16"-18, G5

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, [B] Hex, 5/16"-18 x 1 1/8", G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, [B] 5/16"

2шт.

45

364696R92

DISTRIBUTOR

DISTRIBUTOR, assembly (For componets see list of parts under details of "Distributor")

1шт.
