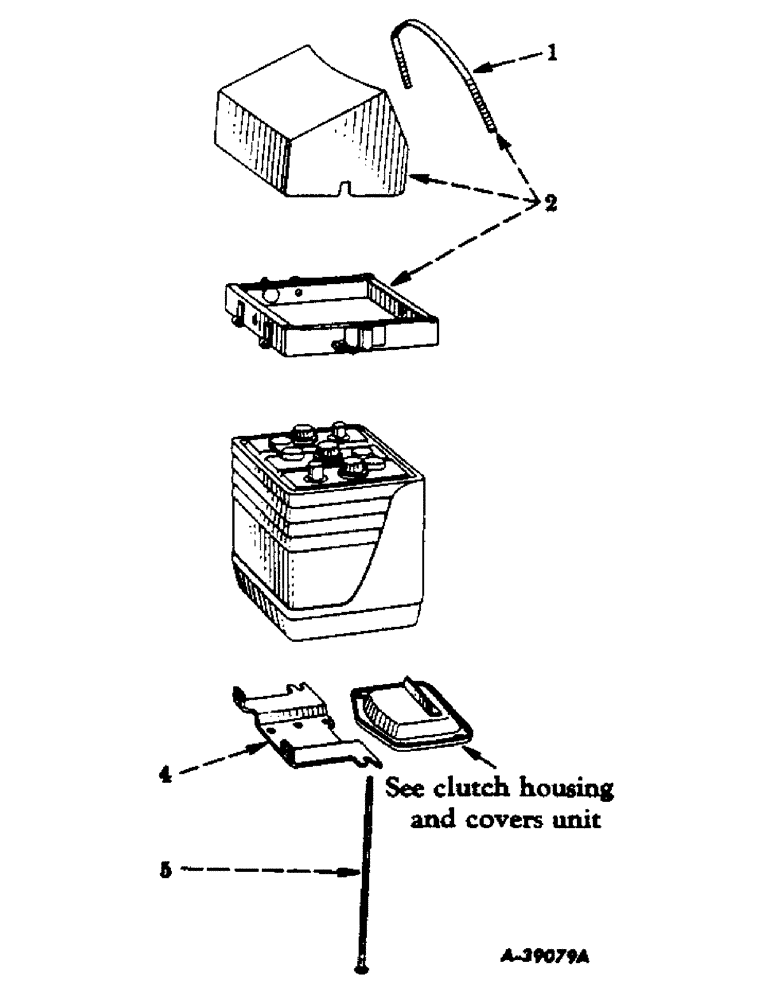

Запчасти Case IH 300 (116) - ELECTRICAL SYSTEM, CARBURETED ENGINE, BATTERY HOLDER (06) - ELECTRICAL SYSTEMS

1

362491R1

STRIP, battery cover trim

1шт.

2

362489R93

COVER, battery, assembly (For tractors equipped with 6 volt electrical system), Composed Of

1шт.

362493R92

CLAMP (NSS)

1шт.

362490R11

COVER (NSS)

1шт.

365765R1

NUT, WING

NUT

2шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

2шт.

362491R1

STRIP

1шт.

129-419

WING NUT,5/16"-18

NUT, wing, 5/16-18NC (Used on 5/16" bolts) International 300 series tractors

4шт.

129-419

WING NUT,5/16"-18

NUT, wing, 5/16-18NC (Used on 5/16" bolts) International 350 series tractors (S/N 501 to 7714)

4шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, (cover hinge pin) 3/16" x 1 1/4", Slotted

2шт.

28950D

WASHER

plain, 21/64" I.D. x 5/8" O.D. x No. 16 ga. (Used with nut, 103128) International 300 series tractors

2шт.

28950D

WASHER

plain, 21/64" I.D. x 5/8" O.D. x No. 16 ga. (Used with nut, 103128) International 350 series tractors (S/N, Serial Range: 501-7714)

2шт.

365765R1

NUT, WING

battery cover (1/4-20NC) (Used with 1/4" bolts) International 350 series tractors (S/N 7715 up)

4шт.

2

365810R91

COVER, battery, assembly (For tractors equipped with 12 volt electrical system), Composed Of

1шт.

365812R91

CLAMP (NSS)

1шт.

365811R91

COVER (NSS)

1шт.

365765R1

NUT, WING

NUT

2шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

2шт.

362491R1

STRIP

1шт.

4

362617R2

SADDLE, battery (For tractors equipped with 6 volt electrical system)

1шт.

4

365817R1

SADDLE, battery (For tractors equipped with 12 volt electrical system)

1шт.

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

358277R2

BOLT,Sq Nk, 5/16" - 18 x 9-1/4"

battery hold-down (5/16-18NC thread) International 300 series tractors

2шт.

5

358277R2

BOLT,Sq Nk, 5/16" - 18 x 9-1/4"

battery hold-down (5/16-18NC thread) International 350 series tractors (S/N, Serial Range: 501-7714)

2шт.

5

365770R1

BOLT, battery hold-down (1/4-20NC thread) International 300 series tractors

2шт.

5

365770R1

BOLT, battery hold-down (1/4-20NC thread) International 350 series tractors (S/N 7715 and above)

2шт.
