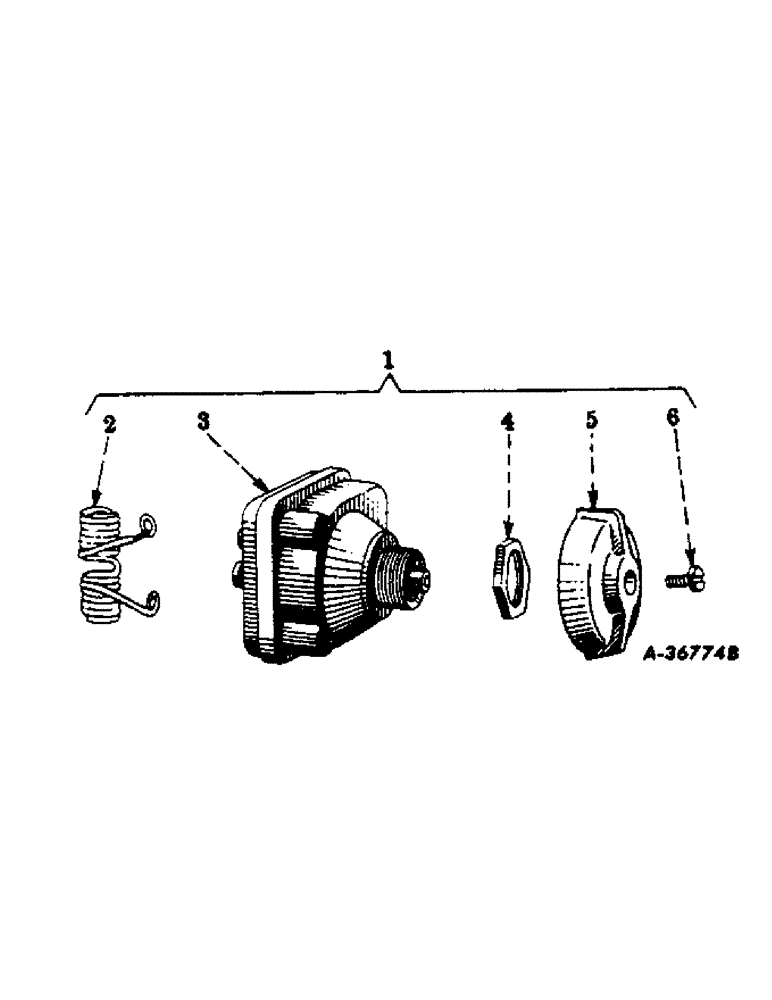

Запчасти Case IH 300 (113) - ELECTRICAL SYSTEM, CARBURETED ENGINE, LIGHTING SWITCH (DELCO-REMY) (06) - ELECTRICAL SYSTEMS

1

363130R91

SWITCH

lighting, assembly (6 volt) (Column A) (Mfr's. No. 1994038)

1шт.

1

363131R91

SWITCH

lighting, assembly (12 volt) (Column B) (Mfr's. No. 1994043)

1шт.

1

COIL, resistance, lighting switch dimmer (6 volt) (Mfr's. No. 814545) [A]

1шт.

SCREW, dimmer coil attaching (Mfr's. No. 1882994)

2шт.

WASHER, lock, internal-tooth, cd-pltd., No. 8 (Mfr's. No. 138530)

2шт.

1

COIL, resistance, lighting switch dimmer (12 volt) (Mfr's. No. 1877830) [B]

1шт.

2

SWITCH, lighting (Not serviced separately - order switch, assembly)

1шт.

SCREW, terminal (Mfr's. No. 1882994)

4шт.

WASHER, lock, internal-tooth, 11/16" (Mfr's. No. 141706)

1шт.

WASHER, lock, terminal screw (Mfr's. No. 1873844)

4шт.

3

NUT, mounting, lighting switch (Mfr's. No. 1882012)

1шт.

4

KNOB, lighting switch (Mfr's. No. 1930685)

1шт.

5

SCREW, mounting, lighting switch knob (Mfr's. No. 1864099)

1шт.

WASHER, lock, medium, cd-pltd., No. 8 (Mfr's. No. 121841)

1шт.
