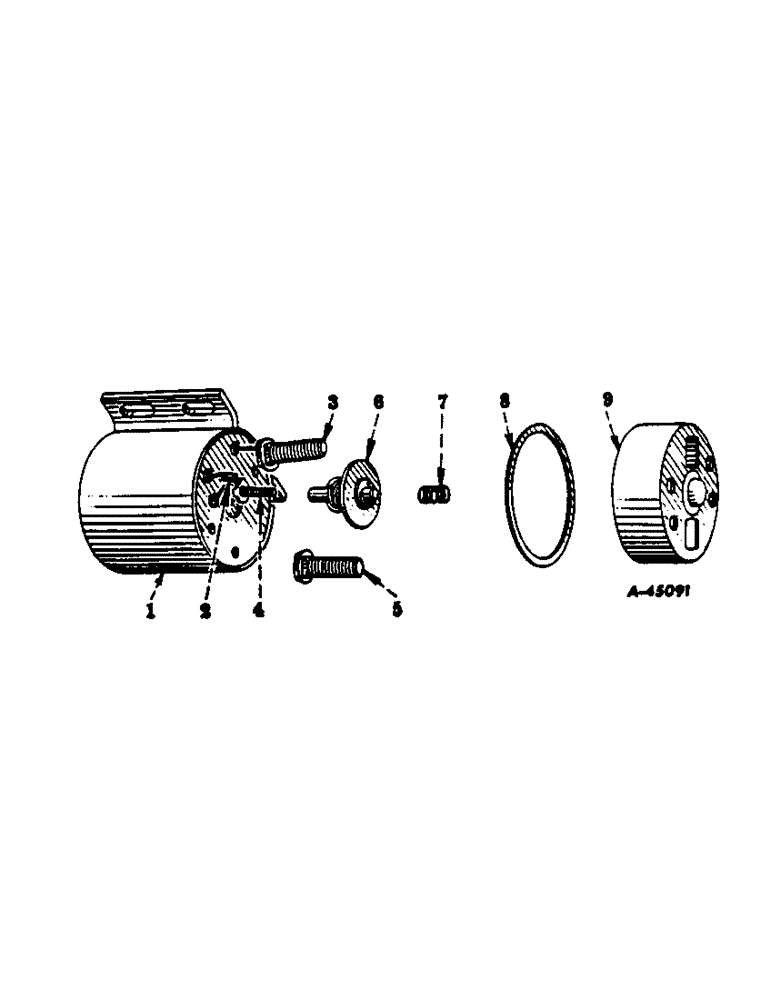

Запчасти Case IH 300 (105) - ELECTRICAL SYSTEM, CARBURETED ENGINE, CRANKING MOTOR SOLENOID SWITCH, DELCO-REMY (06) - ELECTRICAL SYSTEMS

SWITCH, solenoid, assembly (used with cranking motor 1108640) (column A) (Mfr. 1119797) (A only)

1шт.

SWITCH, solenoid, assembly (used with 1108646 cranking motor) (column B) (Mfr. 1119912) (B only)

1шт.

1

CASE, solenoid switch w/coil (Mfr. 1933689)

1шт.

2

CLIP, terminal (Mfr. 1926958)

1шт.

3

STUD, terinal (3/8" dia.) (Mfr. 1927344) (A only)

1шт.

(B only)

2шт.

280136

NUT,3/8"-16, G8

(1/4" thick) (A only) 3/8"-16, G8

1шт.

(B only)

2шт.

NUT, terminal stud (5/32" thick) (Mfr. 805258) (A only)

1шт.

(B only)

2шт.

120381

WASHER

lock, light, cd-pltd., 3/8"

2шт.

WASHER, insulating, terminal stud (Mfr. 1927345) (A only)

1шт.

4

STUD, terminal (no. 8 dia.) (Mfr. 1837533) (A only)

1шт.

(B only)

2шт.

120622

NUT,#8-32

(A only) #8-32

2шт.

(B only)

4шт.

WASHER, lock, terminal stud (Mfr. 1904615)

2шт.

WAHSER, insulating, terminal stud (Mfr. 1926969) (A only)

1шт.

(B only)

2шт.

5

STUD, terminal (5/16" dia.) (Mfr. 1926967) (A only)

1шт.

NUT, terminal stud (Mfr. 1926640) (A only)

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, (A only) 5/16"

2шт.

WASHER, insulating, terminal stud (Mfr. 1926968) (A only)

1шт.

(B only)

2шт.

6

CONTACT, solenoid, w/two terminals and spring (Mfr. 1912059)

1шт.

CONTACT, solenoid (Mfr. 1923932)

1шт.

7

SPRING, contact return (Mfr. 1853342)

1шт.

8

GASKET, solenoid switch cover (Mfr. 1930629)

1шт.

9

COVER, solenoid switch (Mfr. 1930343) (A only)

1шт.

9

COVER, solenoid (Mfr. 1926966) (B only)

1шт.

132903

ADAPTER

SCREW, machine, slotted-rd-hd., cd-pltd., no. 10-32NF x 7/16"

2шт.

WASHER, cover attaching screw, (Mfr. 1923935)

2шт.
