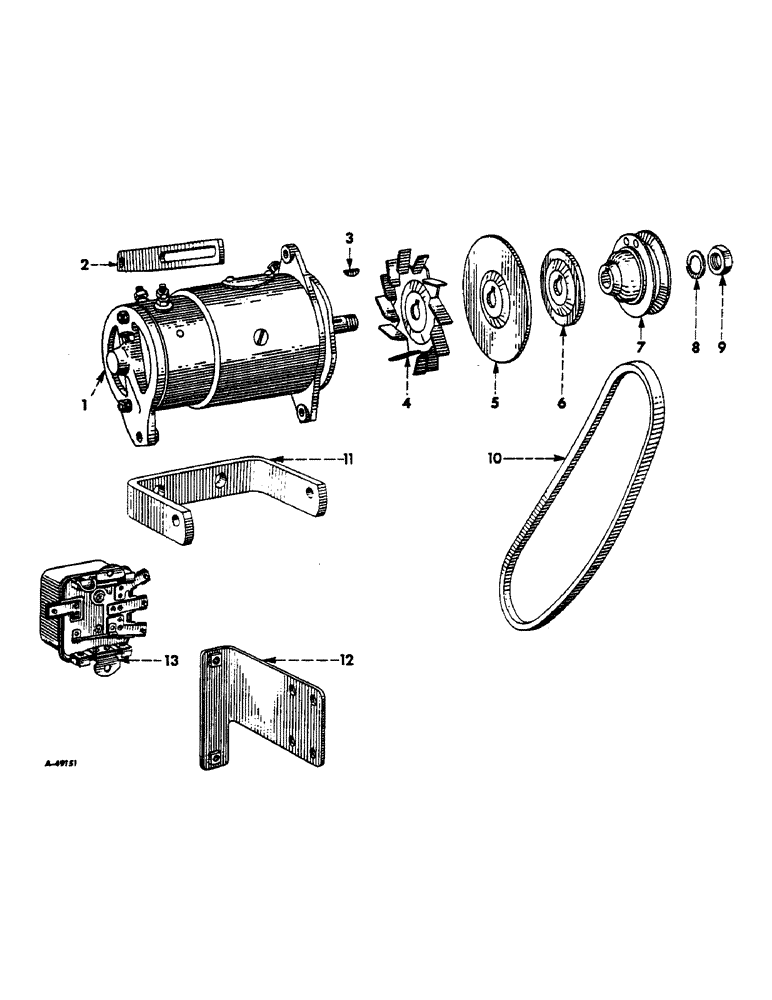

Запчасти Case IH 300 (091A) - ELECTRICAL SYSTEM, CARBURETED ENGINE, GENERATOR AND CONNECTIONS, 12 VOLT (06) - ELECTRICAL SYSTEMS

1

282653R91

SPARE PART GENERATOR, assembly (12 volt) (for components see list of parts under details of "Generator")

1шт.

1

103814A1R

REMAN-GENERATOR

Generator

1шт.

1

103814A1C

CORE-GENERATOR

Return Number

1шт.

1

103820A1R

REMAN-GENERATOR

Generator

1шт.

1

103820A1C

CORE-GENERATOR

Return Number

1шт.

1

108004A1R

REMAN-GENERATOR

Remanufactured Generator, 12 volt, 11 ampere

1шт.

1

108004A1C

CORE-GENERATOR

Return Number, Generator, 12 volt, 11 ampere

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

362658R1

BAR

BRACE, generator

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

95-11034

WASHER,1/4"

WASHER, plain, 11/32" ID x 11/16" OD x no. 16 ga

1шт.

3

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

4

90426H

SPARE PART FAN, generator pulley

1шт.

5

263303R1

SPARE PART BAFFLE, generator pulley fan

1шт.

6

368594R1

SPARE PART RETAINER, generator pulley fan baffle

1шт.

7

368591R1

PULLEY

PULLEY, generator

1шт.

8

WASHER, lock, armature shaft nut (Delco-Remy 804000)

1шт.

9

NUT, armature shaft (Delco-Remy 806915)

1шт.

10

362828R1

V-BELT,0.50" W

Generator

1шт.

11

362659R1

SPARE PART BRACKET, generator

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

12

363036R11

SPARE PART BRACKET, voltage regulator mounting

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, cap, hex-hd., 3/8-16NC x 7/8" (Note B)

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (Note B) 3/8"

4шт.

13

360899R91

REGULATOR

REGULATOR, voltage, assembly (for components see list of parts under details of "Voltage Regulator")

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

SCREW, cap, hex-hd., 1/4-20NC x 5/16"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
