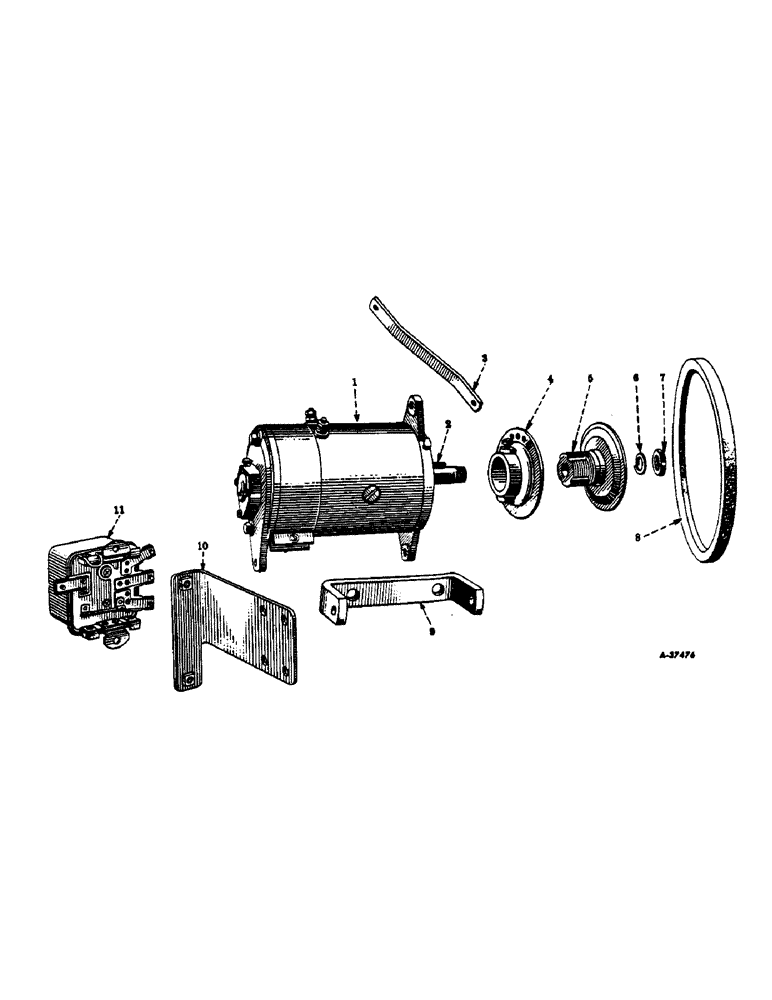

Запчасти Case IH 300 (089) - ELECTRICAL SYSTEM, CARBURETED ENGINE, GENERATOR AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

1

354237R91

SPARE PART GENERATOR, assembly (6 volt), (for components see list of parts under detail of "Generator")

1шт.

1

103814A1R

REMAN-GENERATOR

Generator

1шт.

1

103814A1C

CORE-GENERATOR

Return Part Number

1шт.

1

103820A1R

REMAN-GENERATOR

Generator

1шт.

1

103820A1C

CORE-GENERATOR

Return Part Number

1шт.

1

103821A1R

REMAN-GENERATOR

Generator

1шт.

1

103821A1C

CORE-GENERATOR

Return Part Number

1шт.

1

87497945R

REMAN-ALTERNATOR

Kit to convert reman generator 103821R to an alternator. Kit includes: instruction sheet, hardware kit, 12 v. resistor ballast, wire harness, mounting brkt., tension brkt., reman alternator 12 volt 63 amp w/pulley & regulator. Some rework may be required on the upper & lower brackets

1шт.

1

103821A1C

CORE-GENERATOR

Return Part Number

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

3

48877D

SPARE PART BRACE, generator

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

6746DX

HUB

FLANGE, generator pulley, w/nut, 114501 and screw, 102820

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

NUT, Jam, 1/4"-20, G5

1шт.

NLS

NO LONGER SERVICED

SCREW, set, hdls., dog-pt., 1/4-20NC x 7/8"

1шт.

5

6745DA

HUB

SPARE PART HUB, generator pulley

1шт.

6

WASHER, lock, armature shaft nut (Delco-Remy 804000)

1шт.

7

NUT, armature shaft (Delco-Remy 1914308)

1шт.

8

362828R1

V-BELT,0.50" W

Generator

1шт.

9

50384D

SPARE PART BRACKET, generator

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

10

363036R11

SPARE PART BRACKET, voltage regulator mounting

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, cap, hex-hd., 3/8-16NC x 7/8" (See note)

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See note) 3/8"

4шт.

11

360898R91

REGULATOR

REGULATOR, voltage, assembly (6 volt) (for components see list of parts under details of "Voltage Regulator")

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

SCREW, cap, hex-hd., 1/4-20NC x 5/16"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
