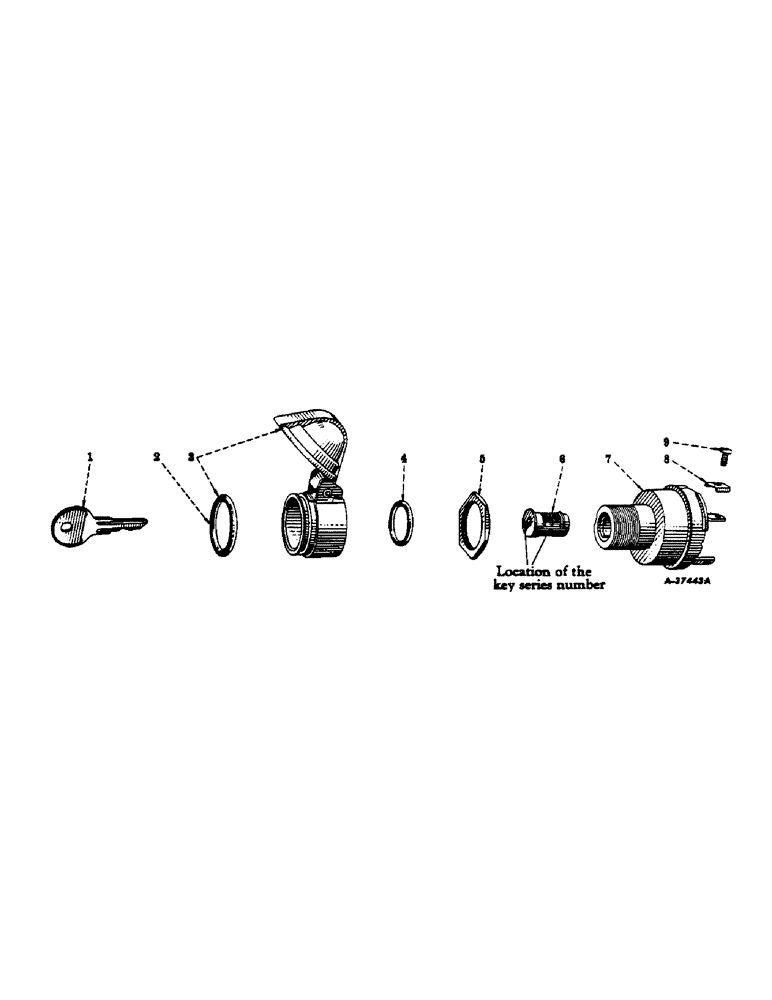

Запчасти Case IH 300 (088) - ELECTRICAL SYSTEM, CARBURETED ENGINE, IGNITION LOCK AND STARTING SWITCH, DELCO-REMY (06) - ELECTRICAL SYSTEMS

361998R93

SWITCH

igniton lock and starting, assembly (order 300557R91) (Mfr. 1116532)

1шт.

1

1939376

KEY, (purchase locally) (see note) (Replaces DASHPART)

1шт.

2

SEAL, cover (15/16" I.D.) (Mfr. 1923404)

1шт.

3

COVER, w/mounting nut, pin, seal, 1923404 and spring (will work for 1930376) (Mfr. 1935010)

1шт.

4

SEAL, mounting nut (3/4" I.D.) (Mfr. 1930636)

1шт.

5

NUT (Mfr. 1923405)

1шт.

6

LOCK, w/two keys (will work for 1849889 and 1932254) (Mfr. 1934382)

1шт.

7

BODY, switch (not serviced separately - order switch assembly)

1шт.

8

CLIP, terminal (Mfr. 1868137)

4шт.

9

SCREW, terminal (Mfr. 1864099)

4шт.
