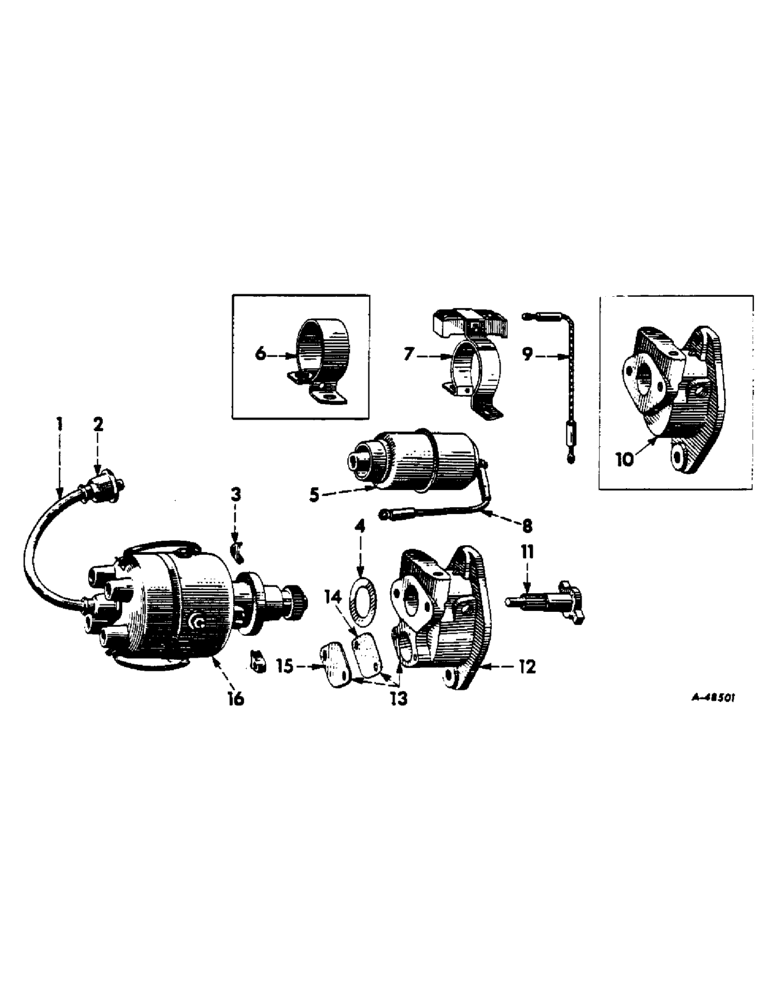

Запчасти Case IH 300 (078) - ELECTRICAL SYSTEM, CARBURETED ENGINE, BATTERY IGNITION UNIT (06) - ELECTRICAL SYSTEMS

1

356686R92

CABLE

secondary, coil to distributor, w/two nipples, 251553R1

1шт.

2

251553R1

BOOT

NIPPLES

2шт.

3

353937R1

CLIP

CLAMP, distributor

2шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, cap, hex-hd, cd-pltd, 5/16-18NC x 7/8"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

353936R2

GASKET

distributor

1шт.

5

353874R91

COIL

ignition (6 volt) (gasoline, distillate and kerosene)

1шт.

5

353875R91

COIL

ignition (12 volt) (liquefied petroleum gas), Farmall 300 series Farmall 350 series, Serial Range: 501-13242

1шт.

5

396547R93GV

COIL

Value, Ignition Coil

1шт.

5

368839R91

COIL

ignition (12 volt), (gasoline, distillate and kerosene) (liquefied petroleum gas) Farmall 350 series, 13243 up

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

6

353889R1

CLAMP

coil (used with 353874R91 and 353875R91, coils)

1шт.

120611

NUT,#10 - 32

sq. cd-pltd., no. 10-32NF

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

slotted-rd-hd., cd-pltd., no. 10-32NF x 1-1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, plain, cd-pltd., 11/32" I.D. x 11/16" O.D. x no. 16 ga

2шт.

7

368840R91

RESISTOR

CLAMP, coil, w/resistor (used with 368839R91, coil)

1шт.

120611

NUT,#10 - 32

square, cd-pltd., no. 10-32NF

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

slt-rd-hd., cd-pltd., no. 10-32NF x 1-1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, plain, cd-pltd., 11/32" ID x 11/16" OD x no. 16 ga

2шт.

8

357929R92

ELECTRIC CABLE

CABLE, primary, coil to distributor, w/two terminals

1шт.

9

357929R92

ELECTRIC CABLE

CABLE, coil to resistor (see note)

1шт.

10

HOUSING, distributor drive, w/bushing (w/o hole for tachometer drive, order 363749R91)

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8" (lower) (note A)

1шт.

179846

LEVER

hex-hd., 3/8-16NC x 1-7/8" (Upper) (Note A)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24523D

WASHER

battery ignition unit mounting screw

1шт.

11

353934R11

SHAFT

distributor drive, w/integral gear (16 teeth)

1шт.

12

363763R11

HOUSING, distributor drive, w/bushing (has hole for tachometer drive)

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8" (lower) (note A)

1шт.

179846

LEVER

hex-hd., 3/8-16NC x 1-7/8" (Upper) (Note A)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24523D

WASHER

battery ignition unit mounting screw

1шт.

13

363749R91

HOUSING

distributor drive, assembly (will work for 353933R11) (not used on tractors equipped with tachometer) (composed of (1) cover 363764R1, (2) screw 435429, (1) gasket 363765R1, (2) washer 120217, (1) housing 363763R11)

1шт.

14

363765R1

GASKET

distributor drive housing hole cover (used with 363763R11 on tractors not equipped with tachometer)

1шт.

15

363764R1

COVER

distributor drive housing hole (used with 363763R11 on tractors not equipped with tachometer)

1шт.

435429

SCREW, machine, slotted-rd-hd., cd-pltd., no. 10-32NF x 9/16" Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

16

357935R91

OIL DISTRIBUTOR

DISTRIBUTOR, assembly (6 volt) (distillate) (for components see list of parts under details of "Battery Ignition Distributor")

1шт.

16

362722R91

DISTRIBUTOR

assembly (6 or 12 volt) (gasoline) (for components see list of parts under details of "Battery Ignition Distributor")

1шт.

16

364696R92

DISTRIBUTOR

assembly (12 volt) (liquefied petroleum gas) (for components see list of parts under details of "Battery Ignition Distributor")

1шт.

16

366928R91

DISTRIBUTOR

assembly (12 volt) (distillate) (for components see list of parts under details of "Battery Ignition Distributor")

1шт.

16

364653R91

DISTRIBUTOR

assembly (12 volt) (kerosene) (for components see list of parts under details of "Battery Ignition Distributor")

1шт.
