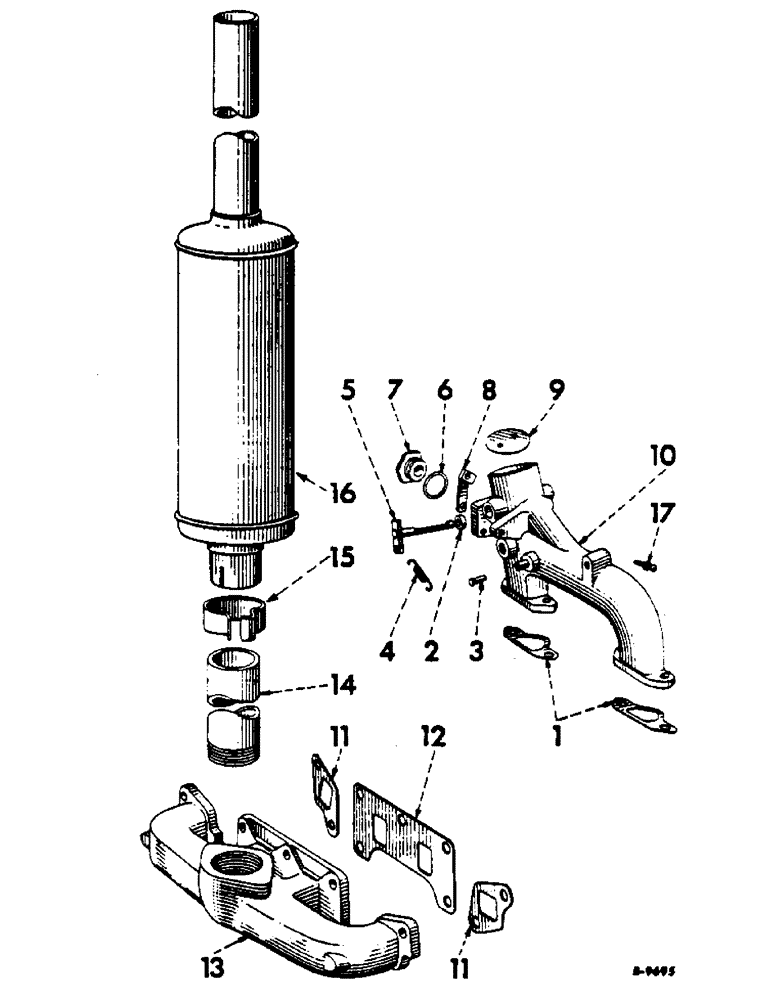

Запчасти Case IH 300 (063) - DIESEL ENGINE, MANIFOLD AND EXHAUST MUFFLER (01) - ENGINE

1

367502R1

GASKET, intake manifold

2шт.

2

367500R1

OIL SEAL, manifold

1шт.

3

367497R1

PIN, air restrictor valve spring

1шт.

4

367496R1

SPRING, air restrictor valve

1шт.

5

367495R91

SHAFT, w/lever, air restrictor valve

1шт.

6

115449

GASKET, annular, cap and asbestos, 1-1/8" Copper, 1 1/8" x 1 3/8"

1шт.

7

367501R1

PLUG, intake manifold (not used on tractors equipped with intake manifold air heater)

1шт.

8

365499R1

BRACKET, front air restrictor valve rod

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, cap, hex-hd, 1/4-20NC x 3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

367498R1

VALVE, air restrictor

1шт.

100737

ROD,Slotted Rd Hd, #6-32 x 3/8"

SCREW, machine, slotted-rd-hd, no 6-32NC x 3/8"

2шт.

106495

Lock, #6

2шт.

10

367494R91

1шт.

MANIFOLD, intake, assembly (composed of (1) bracket 365499R1, (1) screw 368231R1, (1) gasket 115449, (2) screw 179795, (1) nut 109084, (1) shaft 367495R91, (1) oil seal 367500R1, (1) spring 367496R1, (1) pin 367497R1, (1) valve 367498R1, (1) plug 444575, (2) washer 103319, (1) plug 367501R1, (2) washer 106495)

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

4шт.

444575

PLUG

automotive pipe, sq-hd, 1/4"

1шт.

107785R1

STUD, intake manifold (1-1/2" long)

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

367493R1

GASKET, exhaust manifold end

2шт.

12

367492R1

GASKET, exhaust manifold center

1шт.

13

367491R1

MANIFOLD, exhaust

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

9шт.

367442R1

STUD, exhaust manifold (1-3/4" long)

8шт.

43198V

STUD, exhaust manifold and air cleaner brace (1-7/8" long)

1шт.

Q1597

WASHER

plain, 13/32" ID x 3/4" OD x no. 16 ga.

9шт.

14

366780R1

PIPE

manifold exhaust

1шт.

15

350602R1

CLAMP

exhaust muffler

1шт.

102637

NUT,1/2"-13, G5

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, cap, hex-hd, 1/2-13NC x 1-3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

16

350601R95

MUFFLER

exhaust

1шт.

17

368231R1

SCREW, air restrictor valve adjusting

1шт.

109084

NUT,1/4"-20, G5

1шт.
