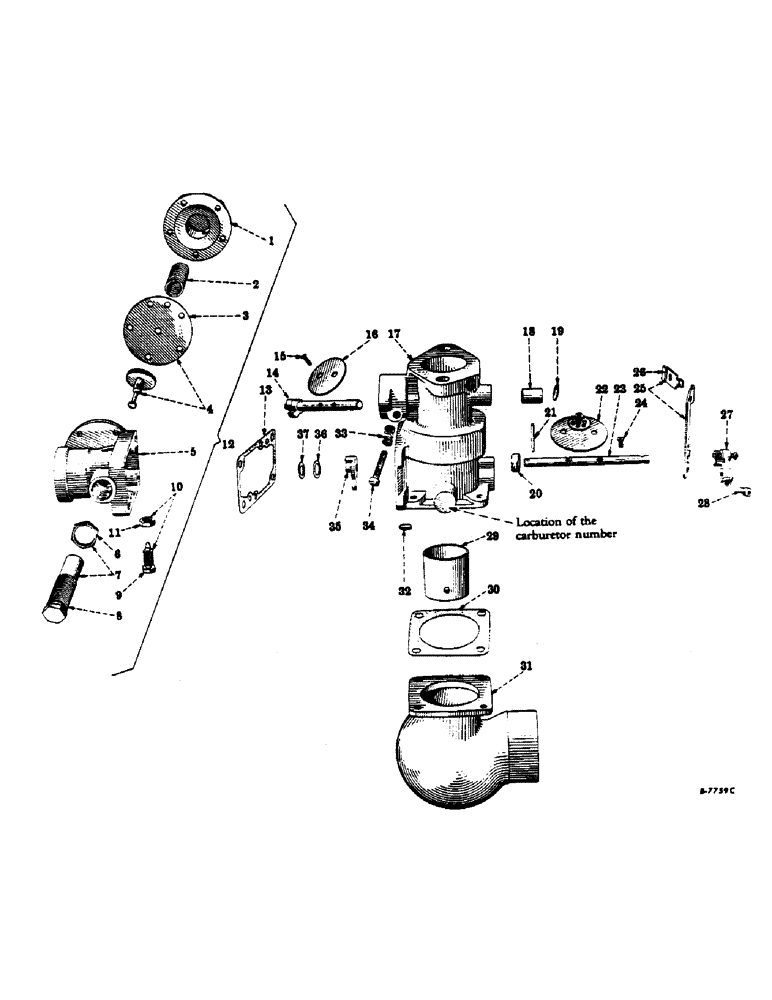

Запчасти Case IH 300 (043) - CARBURETED ENGINE, CARBURETOR, LIQUEFIED PETROLEUM GAS (01) - ENGINE

364682R91

CARBURETOR, assembly (liquefied petroleum gas)

1шт.

1

359623R1

COVER, economizer

1шт.

131974

SCREW,Sl Fil Hd, #8 - 32 x 5/8"

machine, slotted-fil-hd, cd-pltd, no 8-32NC x 5/8"

5шт.

131182

WASHER, LOCK

cd-pltd, no 8

5шт.

2

359622R1

SPRING, economizer

1шт.

3

113504R1

DIAPHRAGM, economizer

1шт.

4

359621R91

DIAPHRAGM, economizer (includes diaphragm, 113504R1)

1шт.

5

BODY, (order 359618R91)

1шт.

275587R1

SCREW, bleed

1шт.

6

56430D

NUT, lock, fuel adjusting screw

1шт.

7

36761D

SCREW, fuel adjusting, 56429D, w/nut, 56430D

1шт.

8

56429D

SCREW, fuel adjusting

1шт.

9

359620R1

SCREW, starting adjusting

1шт.

10

359619R91

SCREW, starting adjusting, 359620R1, w/nut, 113506R1

1шт.

11

113506R1

NUT, lock, fuel adjusting screw

1шт.

12

359618R91

INLET, and economizer, gas, assembly (composed of (1) body (NSS), (1) cover 359623R1, (1) diaphragm 359621R91, (1) screw 359619R91, (1) screw 36761D, (5) screw 131974, (1) spring 359622R1, (5) washer 131182)

1шт.

132203

SCREW, machine, slotted-fil-hd., cd-pltd., no. 12-24NC x 7/8" Slotted Fil Hd, #12-24 x 7/8"

4шт.

131184

CONNECTING LINK

WASHER, lock, cd-pltd., no. 12

4шт.

13

359624R1

GASKET, gas inlet and economizer

1шт.

14

359610R91

SHAFT AND STOP, throttle

1шт.

15

56370D

SCREW, throttle shaft

2шт.

16

359611R1

DISC, throttle

1шт.

17

359608R91

BODY, partial, w/two bushings, 359609R1, plug, 13123D and plug, 47856H

1шт.

18

359609R1

BUSHING, throttle bearing

2шт.

19

47856H

PLUG, expansion, brs., 1/2"

1шт.

20

58899D

WASHER, dust

1шт.

21

359616R1

PIN, valve lever

1шт.

22

275582R91

DISC, spring loaded chore

1шт.

23

359612R1

SHAFT, chore

1шт.

24

56365D

SCREW, chore shaft

2шт.

25

58889D

SUPPORT, chore tube, w/clamp, 56389D, screw, 132105 and nut, 120611

1шт.

443799

SCREW, machine, slotted-binding-hd, cd-pltd, no 8-32NC x 1/4"

2шт.

26

56389D

CLAMP, chore tube

1шт.

120611

NUT,#10 - 32

hex, no 10-32NF

1шт.

132105

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

machine, slotted-fil-hd, cd-pltd, no 10-32NF x 3/8"

1шт.

27

275583R91

LEVER, chore, w/screw, 36756D and screw, 120216

1шт.

120216

BOLT,Short NK, M8 x 60, Cl8.8

machine, slotted-fil-hd, cd-pltd, no 10-32NF x 1/2"

1шт.

28

36756D

SCREW, set, chore lever

1шт.

29

368697R91

VENTURI, (will work for 365602R91)

1шт.

132198

SCREW, machine, slotted-fil-hd, cd-pltd, no. 12-24NC x 3/4"

1шт.

131184

CONNECTING LINK

WASHER, lock, cd-pltd, no 12

1шт.

30

359627R1

GASKET, air intake elbow

1шт.

31

359626R1

ELBOW, air intake

1шт.

NLS

NO LONGER SERVICED

SCREW, machine, slotted-fil-hd, cd-pltd, no 12-24NC x 5/8"

4шт.

131184

CONNECTING LINK

WASHER, lock, cd-pltd, no 12

4шт.

32

13123D

PLUG, expansion, brs., 3/16"

1шт.

33

37185D

RETAINER, throttle stop adjusting screw

1шт.

34

132133

SCREW, machine, slotted-fil-hd., cd-pltd., no. 10-32NF x 1" Slotted Fil Hd, #10-32 x 1"

1шт.

35

359614R1

LEVER, valve

1шт.

36

359615R1

WASHER, spring

1шт.

37

37183D

WASHER, valve lever

1шт.
