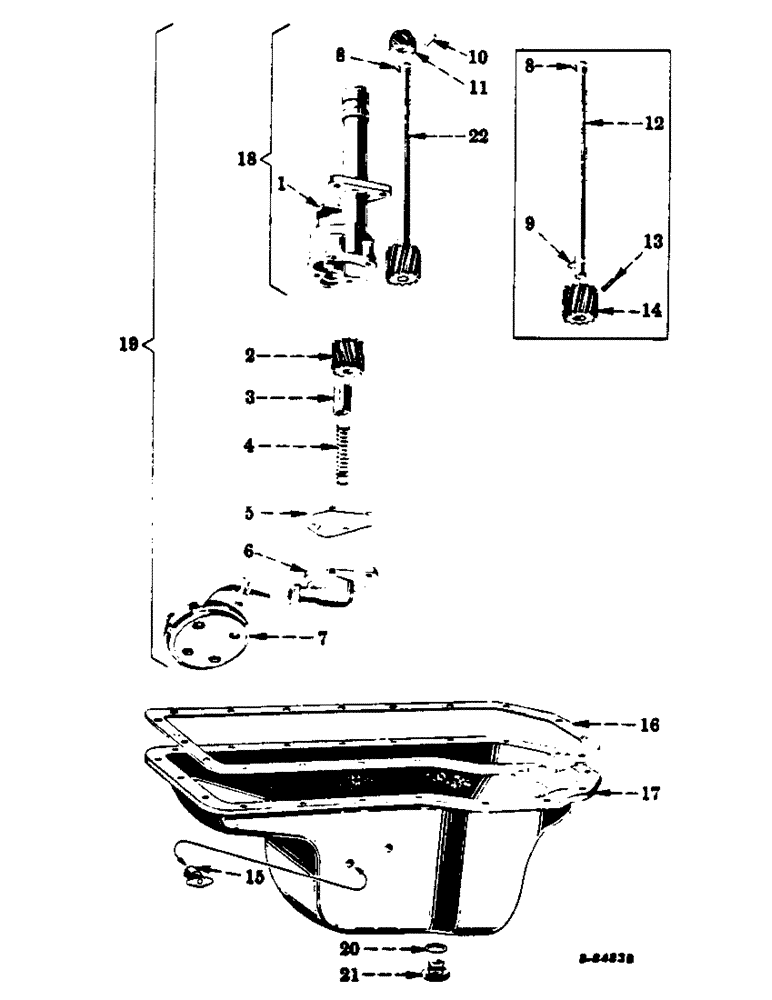

Запчасти Case IH 300 (030) - CARBURETED ENGINE, CRANKCASE OIL PAN AND LUBRICATING OIL PUMP (01) - ENGINE

1

6291DX

BODY, oil pump, w/plug, 103866 and shaft

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

pipe, sq-hd, C.I., 1/4" (optional with 103878)

1шт.

103878

PLUG

pipe, sq-hd, stl, 1/4" (optional with 103866)

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd, 7/16-14NC x 1-1/4"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

2

45053D

GEAR

idler, oil pump (12 teeth)

1шт.

3

45285DA

VALVE

oil regulating

1шт.

4

62672D

SPRING

oil regulating valve

1шт.

5

45704D

GASKET

oil pump cover

1шт.

6

6290DA

COVER, oil pump

1шт.

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

56108D

FILTER SCREEN

SCREEN, oil pump

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

8

106750

KEY

Woodruff, no. 6 (oil pump drive pinion)

1шт.

9

106750

KEY

Woodruff, no. 6 (oil pump body gear) (used with ref. 12)

1шт.

10

141881

PIN,1/8" x 1 3/16"

straight, chamfered, stl, 3/16 x 13/16" (will work for 1858D)

1шт.

11

45052D

GEAR

PINION, drive, oil pump (11 teeth)

1шт.

12

359714R1

SHAFT

oil pump drive (order gear and shaft - ref. 22)

1шт.

13

45051D

PIN, oil pump body gear (used with ref 12)

1шт.

14

45050D

GEAR

oil pump body (12 teeth) (order gear and shaft - ref. 22)

1шт.

15

1998TA

VALVE

oil gage, w/handle and stem, gasoline C-169, Serial Range: 501-9340

2шт.

Distillate or kerosene C-169, 501, Serial Range: -9450

2шт.

Distillate or kerosene C-169, 9451 up

1шт.

16

45267DA

GASKET

crankcase pan

1шт.

17

363510R91

PAN, crankcase oil, assembly (will work for 45723DCX) (composed of (1) gasket 3405H, (1) pan (NSS), (1) plug 359875R1, (2) plug 103867)

1шт.

425-115

NUT,5/16"-24, G5

hex, light, 5/16-24NF

1шт.

103867

PLUG

pipe, sq-hd, C.I., 3/8" (used to plug oil gage valve hole), gasoline, C-169, 9341 up distillate or kerosene C-169, 9451 up

1шт.

187824

SCREW, machine, hex-hd., 5/16-18NC x 7/8" w/external tooth lock washer (optional with 443609)

16шт.

423348

SCREW, machine, hex-hd., 5/16-18NC x 1-1/18" w/external tooth lock washer (optional with 443519)

2шт.

443519

PLUG

SCREW, machine, hex-hd., 5/16-18NC x 1-1/8" w/spring tooth lock washer (optional with 423348)

2шт.

443609

SCREW, machine, hex-hd., 5/16-18NC x 7/8" w/spring tooth lock washer (optional with 187824)

16шт.

50809DA

STUD, crankcase oil pan (illustrated with "crankcase and related parts")

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18

45703DA

BODY, oil pump, assembly (composed of (1) body 6291DX, (1) pin 1858T, (1) key 106750, (1) pinion 45052D, (1) shaft 164941R91)

1шт.

19

45716DA

PUMP, lubricating oil, assembly (composed of (1) body 45703DA, (1) cover 6290DA, (1) gasket 45704D, (1) gear 45053D, (1) pin 103386, (1) screen 56108D, (4) screw 179839, (1) spring 62672D, (1) valve 45285DA, (4) washer 103321)

1шт.

20

3405H

GASKET

crankcase oil pan drain plug

1шт.

21

359875R1

PLUG

drain, crankcase oil pan

1шт.

22

364941R91

SHAFT

GEAR AND SHAFT, oil pump

1шт.
