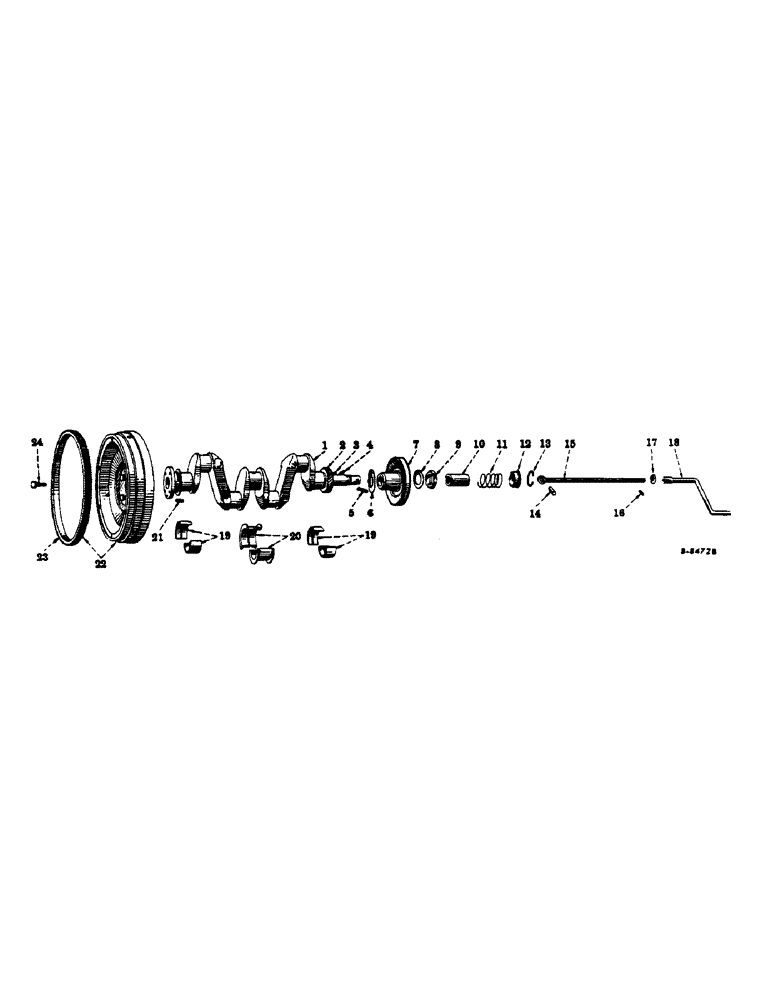

Запчасти Case IH 300 (020) - CARBURETED ENGINE, CRANKSHAFT AND RELATED PARTS (01) - ENGINE

1

353745R95

CRANKSHAFT

w/bearing, assembly (standard) (composed of (4) bearing 357990R11, (1) crankshaft 43734DG (NSS), (2) bearing 357994R11, (1) nut 24402D, (1) bearing 357998R11, (1) pin 46923D)

1шт.

1

352748R95

CRANKSHAFT, w/bearing, assembly (.030" undersize) (composed of (4) bearing 357991R11, (1) crankshaft 43735DH (NSS), (2) bearing 357995R11, (1) nut 24402D, (1) bearing 357999R11, (1) pin 46923D)

1шт.

2

43706D

GEAR

PINION, crankshaft (24 teeth)

1шт.

3

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, Woodruff, aly-stl., type "A" (crankshaft pinion)

1шт.

4

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, Woodruff, aly-stl., type "A" (fan drive pulley)

1шт.

5

577140R1

LOCK PIN,3/8" x 1 7/8", Slotted

Pin, , starting crank ratchet 3/8" x 1 7/8", Slotted

1шт.

6

43705DA

FLINGER, oil, crankshaft, front

1шт.

7

362748R1

PULLEY, fan drive

1шт.

8

24403D

WASHER

LOCK, crankshaft pinion nut

1шт.

9

24402D

NUT

crankshaft pinion

1шт.

10

360650R1

RATCHET, starting crank

1шт.

11

43859DA

SPRING, starting crank

1шт.

12

43860D

RETAINER, starting crank spring

1шт.

13

43857D

RING, snap, starting crank ratchet

1шт.

14

43855D

PIN, starting crank ratchet

1шт.

15

438585DB

SHAFT, starting crank

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

16

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, , starting crank 5/16" x 1 1/2", Slotted

1шт.

17

353775R1

WASHER

plain, 25/32" I.D. x 1-5/8" O.D. x no. 10 ga.

1шт.

18

51544DBX

CRANK

starting (optional with 354705R31 and 360449R91) (note B)

1шт.

18

354705R31

CRANK, starting (optional with 51544DBX and 360449R91) (note B)

1шт.

18

360449R91

CRANK, starting (optional with 51544DBX and 354705R31) (note B)

1шт.

19

357994R11

BEARING LINER

BEARING, crankshaft, front and rear (2 halves) (standard)

2шт.

19

357996R11

BEARING ASSY

BEARING, crankshaft, front and rear (2 halves) (.002" undersize)

2шт.

19

360201R11

BEARING, crankshaft, front and rear (2 halves) (.003" undersize)

2шт.

19

357995R11

BEARING, crankshaft, front and rear (2 halves) (.030" undersize)

2шт.

19

357997R11

BEARING, crankshaft, front and rear (2 halves) (.032" undersize)

2шт.

20

357998R11

BEARING ASSY

BEARING, crankshaft, center (2 halves) (standard)

1шт.

20

358000R11

BEARING ASSY

BEARING, crankshaft, center (2 halves) (.002" undersize)

1шт.

20

360202R11

BEARING, crankshaft, center (2 halves) (.003" undersize)

1шт.

20

357999R11

BEARING, crankshaft, center (2 halves) (.030" undersize)

1шт.

20

358001R11

BEARING, crankshaft, center (2 halves) (.032" undersize)

1шт.

21

46923D

PIN

dowel, flywheel

1шт.

22

360867R11

FLYWHEEL, w/gear, 45638DB (for distillate, gasoline and kerosene burning engine)

1шт.

22

364749R91

FLYWHEEL, w/gear, 364773R1 (for liquefied petroleum gas burning engine)

1шт.

23

45638DB

GEAR

ring, flywheel (104 teeth) (for distillate, gasoline and kerosene burning engine)

1шт.

23

364773R1

GEAR, ring, flywheel (104 teeth) (for liquefied petroleum burning engine)

1шт.

24

360868R1

BOLT, flywheel to crankshaft (place type)

1шт.

367881R91

KIT

BEARING SET, crankshaft (standard) (consists of two bearings, 357994R11 and one bearing 357998R11 (not illustrated)

1шт.
