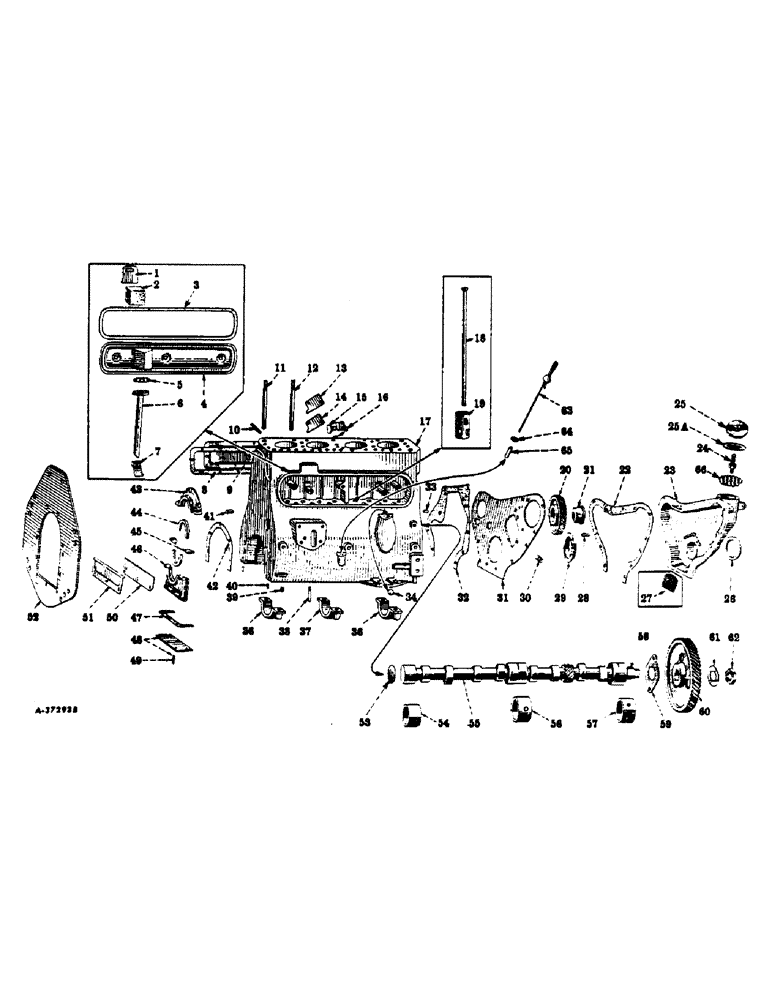

Запчасти Case IH 300 (016) - CARBURETED ENGINE, CRANKSHAFT OIL SEALS, CAMSHAFT, CRANKCASE AND RELATED PARTS (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
48708DX
BAFFLE, breather, w/plate
1шт.
100750
FITTING
SCREW, machine, slotted-rd-hd., no. 8-32 NC x 3/8" Slotted Rd Hd, #8-32 x 3/8"
2шт.
492-11008
LOCK WASHER,#8
Washer, Lock, #8
2шт.
2
52111D
ELEMENT
breather
1шт.
3
45018DB
GASKET
push rod chamber side plate
1шт.
4
48625DX
PLATE, side, push rod chamber
1шт.
179838
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
cap, hex-hd., 3/8-16NC x 7/8"
3шт.
62866D
WASHER,5/64" Thk x 13/32" ID
push rod chamber side plate bolt (optional with 357374R1)
3шт.
357374R1
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
WASHER, push rod chamber side plate bolt (optional with 62866D)
3шт.
5
46700D
GASKET
breather pipe flange
1шт.
6
48710DAX
PIPE, breather, w/flange
1шт.
181338
BOLT,Hex, 5/16" - 24 x 7/8", Gr 5
2шт.
7
49792D
CLIP, breather pipe (on oil pan attaching screw)
1шт.
8
45266DA
CYLINDER HEAD GASKET
water header
1шт.
9
48461DA
CHANNEL
HEADER, water, w/cover
1шт.
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
(4 used on tractor with liquefied petroleum burning engine gas) Hex, 5/16"-18 x 5/8", G5
10шт.
28950D
WASHER
water header stud and cap screw (4 used on tractors with liquefied petroleum burning engine gas)
14шт.
10
29070D
STUD
water header
4шт.
11
45009D
STUD, cylinder head, short (5-15/16")
15шт.
12
48939DA
STUD
cylinder head, long (6-1/8")
1шт.
13
29710D
COVER
fuel pump opening
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
SCREW, cap, hex-hd., 5/16-18 NC x 1/2"
2шт.
14
85069R1
GASKET, fuel pump opening cover
1шт.
15
45314DC
PLUG
crankcase water drain
1шт.
16
363793R1
ELBOW
crankcase water drain (will work for 120702) (optional with 364531R1)
1шт.
16
364531R1
ELBOW
crankcase water drain (will work for 120702) (optional with 363793R1)
1шт.
17
364266R92
1шт.
CRANKCASE, assembly (will work for 362743R1 (NSS), 362744R93 and 364265R1 (NSS) (see note) (composed of (1) bearing 53419DB, (1) bearing 53420DA, (1) bearing 53421DA, (6) bolt 366096R1, (2) cap 6177D (NSS), (1) cap 6171D (NSS), (2) cork 104942, (1) cover 29710D, (1) crankcase 364265R1 (NSS), (1) elbow 363793R1, (1) gasket 85069R1, (4) nut 103025, (2) pin 41052D, (2) pin 45391D, (1) plug 45314DC, (3) plug 50410DA, (2) plug 143997, (1) plug 172548, (1) plug 172576, (2) screw 179812, (1) sleeve 363744R1, (4) s
1шт.
17
364267R92
CRANKCASE
1шт.
CRANKCASE, W/CYLINDER SLEEVES AND PISTONS, assembly (gasoline below 5000 ft. altitude, and liquefied petroleum gas burning engine) (will work for 362745R93)(see note), C-169, 501 to 48048 (composed of (1) crankcase 364266R92, (4) pin 43793D, (4) piston 362731R1 (NSS), (8) ring 16014DA, (4) ring 362734R1, (8) ring 16014DA (4) ring 362736R1, (4) sleeve 362737R1 (NSS)
1шт.
17
CRANKCASE, W/CYLINDER SLEEVES AND PISTONS (order crankcase assembly, C-169, 48049 up
1шт.
and sleeve set desired), C-175, 501 up
1шт.
143997
PLUG
pipe, sq-socket, stl., 1/4"
2шт.
50410DA
PLUG
oil header (1/8")
3шт.
18
48366D
ROD
valve push (optional with 355073R91)
8шт.
18
355073R91
ROD, valve push (optional with 48366D)
8шт.
19
35645H
TAPPET, valve (optional with 353233R1)
8шт.
19
353233R1
TAPPET, valve (optional with 35645H)
8шт.
20
6238DX
GEAR
idler, w/bushing (35 teeth)
1шт.
21
6239DX
SHAFT, idler hear, w/pin
1шт.
179885
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
22
352169R2
GASKET
crankcase front cover
1шт.
23
352168R21
COVER, crankcase, front, assembly (composed of (1) cover 352168R2 (NSS), (1) deflector 45010D, (1) oil seal 53888D, (1) pointer 48587D, (1) screen 363232R1, (1) stud 363231R1)
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
179841
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
cap, hex-hd., 3/8-16NC x 1-1/4"
7шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
24
363231R1
STUD, oil filler cap (will work for 45400D)
1шт.
25
4819DX
CAP
oil filler, w/gasket, 364420R1
1шт.
25a
364420R1
GASKET, oil filler cap
1шт.
26
53888D
OIL SEAL
OIL SEAL, crankshaft, front (optional with 258787R91 and 360692R91)
1шт.
27
SCREEN, oil filler (used with cover, 354950R1 (NSS) (order screen, 363232R1 and stud, 363231R1), C-169, Serial Range: 501-17135
1шт.
20000D
BOLT, oil filler screen
2шт.
354029R1
WIRE, lkg., oil filler screen bolt
1шт.
28
48587D
POINTER, timing
1шт.
29
45010D
DEFLECTOR, oil crankshaft, front
1шт.
30
354489R1
LOCK
crankcase front plate screw
2шт.
31
352167R21
PLATE, crankcase, front
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
32
45394DB
GASKET
crankcase front plate
1шт.
33
45391D
PIN, dowel, crankcase front plate
2шт.
34
172548
PLUG,Exp, 1 1/8"
expansion, 1-1/8" (distributor hole)
1шт.
36
CAP, crankshaft bearing, front and rear (not serviced separately, order crankcase assembly)
2шт.
366096R1
BOLT, crankshaft bearing cap (will work for 43948D)
4шт.
58516H
WASHER,17/32" x 1 1/16" x .095", HDN
crankshaft bearing cap bolt (will work for 43947D)
4шт.
1740Y
LOCKING DEVICE
WIRE, lkg., crankshaft bearing cap bolt (used to retain bolt, w/dld. head)
2шт.
37
CAP, crankshaft bearing, center (not serviced separately - order crankcase assembly)
1шт.
366096R1
BOLT, crankshaft bearing cap (will work for 43948D)
2шт.
58516H
WASHER,17/32" x 1 1/16" x .095", HDN
crankshaft bearing cap bolt (will work for 43947D)
2шт.
1740Y
LOCKING DEVICE
WIRE, lkg., crankshaft bearing cap bolt (used to retain bolt, w/dld. head)
1шт.
38
45397D
TUBE
oil filter drain (inside of crankcase)
1шт.
39
NLS
NO LONGER SERVICED
CORK, no. 6 standard, 9/16 x 3/4 x 15/16" long (crankcase locating hole plug)
2шт.
40
25093DA
PLUG
felt, crankshaft rear oil seal retainer plate
2шт.
41
41052D
PIN, dowel, rear engine support
2шт.
42
45012DA
GASKET
crankshaft rear oil seal retainer
1шт.
43
6190DA
PLATE
RETAINER, crankshaft rear oil seal, upper
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
179818
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
44
45014D
OIL SEAL
FELT, crankshaft rear oil seal
2шт.
45
45013D
GASKET
crankshaft rear oil seal retainer, center
2шт.
46
6508DA
RING, SNAP
RETAINER, crankshaft rear oil seal, lower
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
179818
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
47
46959D
GASKET
crankshaft rear oil seal retainer plate
1шт.
48
46958DX
PLATE
crankshaft rear oil seal retainer, w/stud, 50809DA
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
3шт.
49
50809DA
STUD, crankshaft rear oil seal retainer plate
1шт.
50
45398D
DUST SEAL, crankcase rear
1шт.
181333
BOLT,Hex, 5/16" - 24 x 5/8", Gr 5
3шт.
51
45399D
GASKET
GASKET, crankcase rear dust seal
1шт.
52
48623D
SUPPORT, rear engine
1шт.
179881
BOLT,1/2" - 13 x 1", Gr 5
6шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
6шт.
53
172576
PLUG,Exp, 1 5/8"
expansion, 1-5/8" (camshaft rear bearing)
1шт.
54
53421DA
CAMSHAFT BEARING,1.504" OD
camshaft, rear (will work for 45022DA (NSS)
1шт.
55
49900DDX
CAMSHAFT, w/key, 127559, and nut, 368598R1
1шт.
56
53420DA
CAMSHAFT BEARING,1.9415" OD x 1.9375"
camshaft, front (will work for 450201DA)
1шт.
57
53419DB
CAMSHAFT BEARING,1.3125" OD x 2.0625"
BEARING, camshaft, front (will work for 45020DB)
1шт.
58
127559
TAPE
woodruff, no. 91
1шт.
59
43249D
PLATE
thrust, camshaft
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
60
6664DB
GEAR
camshaft (48 teeth)
1шт.
61
16025D
SHIM
LOCK, camshaft gear nut, C-169, C-175, Serial Range: 501-9606
1шт.
62
V84199
NUT,1"-14, Thin
camshaft gear (RH thread), C-169, C-175, 501 to 9606
1шт.
62
368598R1
NUT
camshaft gear (LH thread), C-175, 9607 up
1шт.
63
364278R11
GAUGE
GAGE, engine oil level (will work for 361562R11) (see note)
1шт.
64
34259H
WASHER, felt, oil level gage (see note)
1шт.
65
363744R1
SLEEVE, oil level gage (see note)
1шт.
66
363232R1
SCREEN, oil filler (with stud, 363231R1, will work for 45396D)
1шт.
Выбрано товаров: 117
