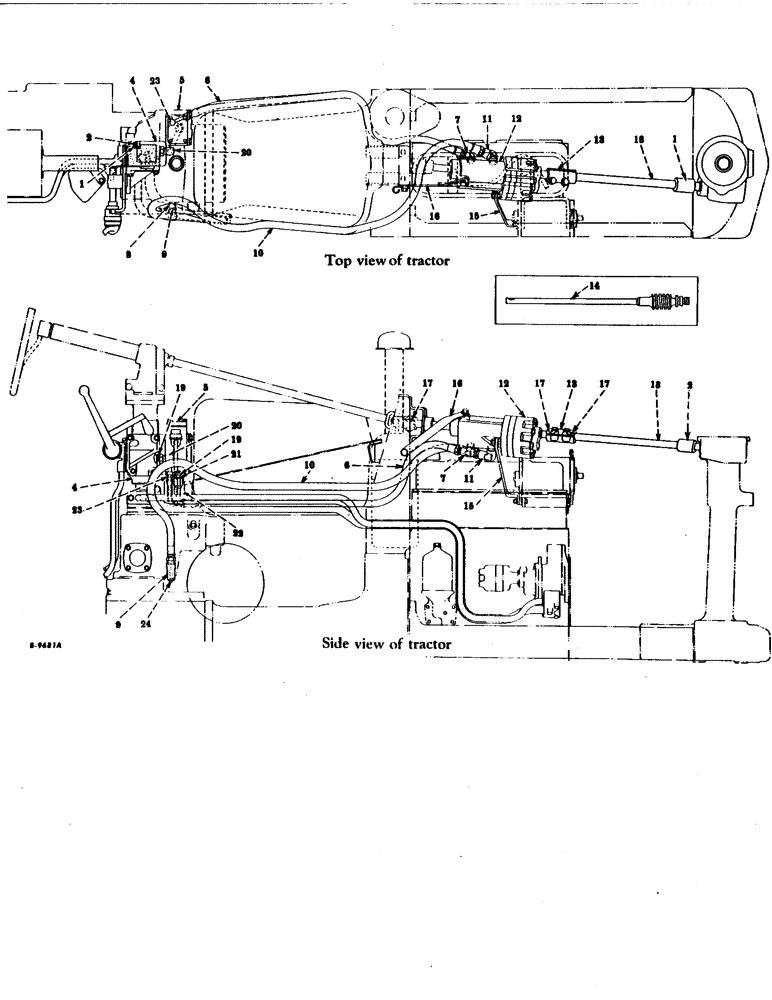

Запчасти Case IH 300 (359) - ATTACHMENTS, POWER STEERING, SPECIAL Attachments

1

355967R1

O-RING,0.364" ID x 0.003" Width

RING, seal, lift circuit block plug (A,B & C only)

1шт.

2

364880R1

PLUG

lift circuit block (A,B & C only)

1шт.

4

365983R91

VALVE, hydra-touch control, assembly (for components see list of parts under details of "hydra-touch control valve")

1шт.

5

364841R93

VALVE, regulator, safety and flow control, assembly (for components see list of parts under details of "regulator, safety andflow control valve")

1шт.

6

365421R91

HOSE,.375" ID, 21.672" OD, 3.12, 2.75" Length

AND TUBE, pressure

1шт.

367230R1

CLIP, pressure hose and tube (not illustrated) (A & D only)

1шт.

7

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

street, automotive pipe, brs., 3/8" x 90 deg.

1шт.

8

192069

NIPPLE, pipe, cd-pltd., 3/8 x 1-1/2"

1шт.

9

179616

ROD

TEE, pipe, reducing, 1/2 x 3/8 x 3/8" (A,B & C only)

1шт.

10

365422R91

HOSE

return, 1/2 ID x 61" long

1шт.

11

364148R1

ELBOW

street, brs., 1/2 x 90 deg.

1шт.

12

365423R93

UNIT, power steering, assembly (for components see list of parts under details of "power steering unit")

1шт.

13

365424R1

CLAMP

COUPLING, steering shaft

1шт.

181371

BOLT

SCREW, cap, hex-hd., 3/8-24 NF x 1-3/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

365425R11

SHAFT, steering worm

1шт.

(Farmall 300 series) (A & B only)

1шт.

(Farmall 350 series 501 to 10785) (A & B only)

1шт.

15

365435R1

BRACE, stering unit (A & C only)

1шт.

15

367184R2

BRACKET, steering unit (not illustrated) (B & D only)

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam, 1/2-20

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

(A & C only) Hex, 5/16"-18 x 1 1/2", G5

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(B & D only) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

16

365427R1

STABILIZER, steering unit

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external-tooth, 3/8"

1шт.

17

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

KEY, Woodruff, No. 11

2шт.

18

368943R11

SHAFT, steering worm (Farmall 350 series 10786 up) (C & D only)

1шт.

19

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

RING, seal, regulator to valve tube connector

2шт.

20

364881R1

ELBOW

regulator to valve tube (without integral nut) (order 368863R91) (A & B only)

1шт.

364882R1

NUT, regulator to valve tube elbow (used with 364881R1 elbow) (A & B only)

1шт.

20

368863R91

ELBOW

hydra-touch control valve, w/integral nut and washer (will work for 364881R1)

1шт.

21

364884R1

CONNECTOR, ELEC

CONNECTOR, regulator to valve tube

1шт.

22

365419R91

TUBE, regulator to valve, w/two nuts and two sleeves .625" OD, 3.125, 1.937" Length

1шт.

23

364871R1

CONNECTOR, ELEC

CONNECTOR, regulator, safety, and flow control valve tube

1шт.

24

PLUG, pipe, sq-hd., stl., 3/8" (use the hydra-touch reservoir drain plug) (see note A)

1шт.

365622R1

TUBE

FLUID, tractor touch-control (gallon can) (see note A)

1шт.

365843R1

FLUID, tractor touch-control (quart can) (see note A)

1шт.

366566R1

CAP

monagramed, steering wheel (for Farmall 350 series)

1шт.

366286R1

NUT, steering wheel (for Farmall 300 series) (A only)

1шт.

366215R1

PLATE, name, power steering (for Farmall 300 series) (A only)

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal, regulator, safety and flow control valve tube connector

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, (A only) Ext Tooth, 1/2"

2шт.
