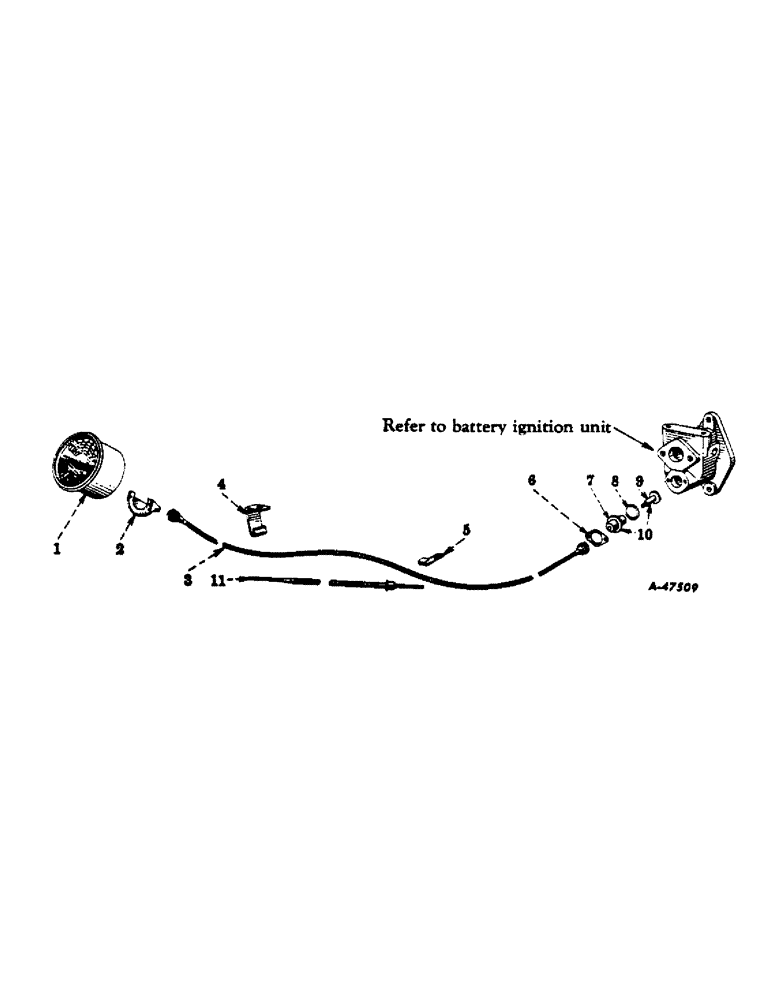

Запчасти Case IH 300 (357) - ATTACHMENTS, TACHOMETER, SPECIAL Attachments

1

364374R91

TACHOMETER

w/two nuts, 120614, and two washers, 120211 (A only)

1шт.

1

364507R91

TACHOMETER, w/two nuts, and two washers, 120217 (B only)

1шт.

2

364376R1

BRACKET, tachometer mounting (A & B)

1шт.

364905R91

SCREW, machine, rd-hd., cross recess, w/internal-tooth, lock washer, 10-24 NF x 7/8" (A & B)

2шт.

3

364375R91

CABLE

CONDUIT, tachometer, flexible drive shaft, w/core, 368107R91, and two mounting nuts (A & B)

1шт.

4

364377R1

CLIP, angle, tachometer drive conduit (A & B)

1шт.

5

363812R1

CLIP, tachometer drive conduit (on fuel tank front support RH mounting screw) (A & B)

1шт.

6

363817R1

RETAINER

PLATE, tachometer connection housing (A & B)

1шт.

435429

SCREW, machine, slotted-rd-hd., cd-pltd., No. 10-32 N x 9/16" (A & B) Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, (A & B) #10

2шт.

7

HOUSING, tachometer connection (not serviced separately, order package, ref. 10) ( A & B)

1шт.

8

363814R1

GASKET

tachometer connection housing (A & B)

1шт.

9

GEAR, tachometer drive (32 teeth) (not serviced separately, order package, ref. 10) (A & B)

1шт.

10

364829R91

TACHOMETER

PACKAGE, service, tachometer drive (consists of gear and housing) (A & B)

1шт.

11

368107R91

CORE

tachometer drive shaft, assembly (A & B)

1шт.
