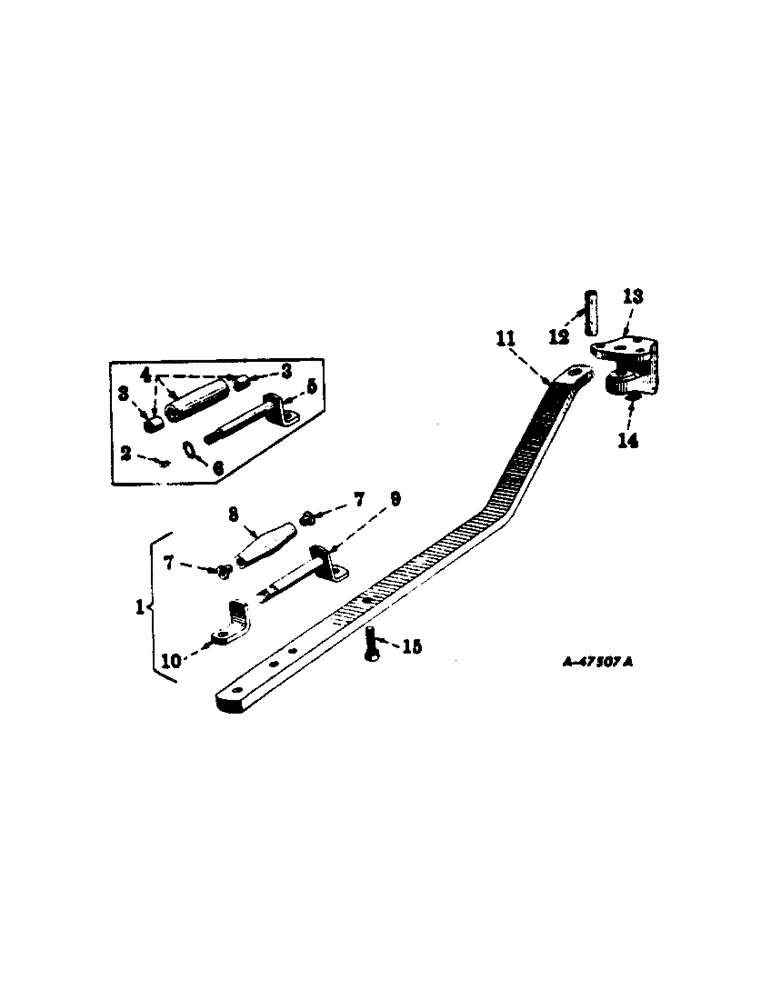

Запчасти Case IH 300 (349) - ATTACHMENTS, SWINGING DRAWBAR, SPECIAL, FOR ALL TRACTORS EXCEPT HI-CLEAR MODELS Attachments

360631R92

ATTACHMENT, swinging drawbar (for tractors equipped with fixed drawbar)

1шт.

1

356563R92

ROLLER

swinging drawbar, assembly, composed of: (2) bearing 368513R1, (1) nut 220081, (1) roller 356562R2, (1) shaft 368512R11, (1) support 356565R2, (1) washer 103326

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 119512) (note A) 1/8"-27 x .66 lg

1шт.

2

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (optional with 109461) (note A)

1шт.

3

356564R1

BUSHING

swinging drawbar roller (note A)

2шт.

4

356562R11

ROLLER

swinging drawbar, w/two bushing, 356564R1 (order 368517R91)

1шт.

5

356561R11

SHAFT

swinging drawbar, w/support (note A)

1шт.

13361R1

BOLT, machine, sq-hd., 5/8-11 NC x 2-1/4"

1шт.

102639

NUT,5/8"-11, G5

1шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10 NC

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

6

358002R1

WASHER

swinging drawbar roller shaft (note A)

2шт.

7

368513R1

BUSHING,1.3125" OD x 0.875"

BEARING, swinging drawbar roller (nylon) (note B)

2шт.

8

356562R2

ROLLER

swinging drawbar (note B)

1шт.

9

368512R11

SHAFT

swinging drawbar, w/support (note B)

1шт.

13361R1

BOLT, mach., 5/8-11 NC x 2-1/4"

1шт.

102639

NUT,5/8"-11, G5

1шт.

220081

NUT

hex., 3/4-11 NC

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

10

356565R2

SUPPORT

swinging drawbar roller shaft, front

1шт.

13361R1

BOLT, machine, sq-hd., 5/8-11 NC x 2-1/4"

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

360632R1

DRAWBAR, swinging

1шт.

12

57654D

PIVOT PIN

PIN, swinging drawbar pivot

1шт.

13

8785D

SUPPORT, swinging drawbar pivot

1шт.

363807R1

SCREW, swinging drawbar pivot support

3шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

14

57655D

PLATE

lock, swinging drawbar pivot pin

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10 NC x 2" (used to lock the swinging drawbar in rigid position when desired)

2шт.

105611

NUT

sq., 3/4-10 NC

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

368517R91

PACKAGE, swinging drawbar roller (consists of two 368513R1 bearing and 356562R2 roller) (will work for 356562R11)

1шт.
