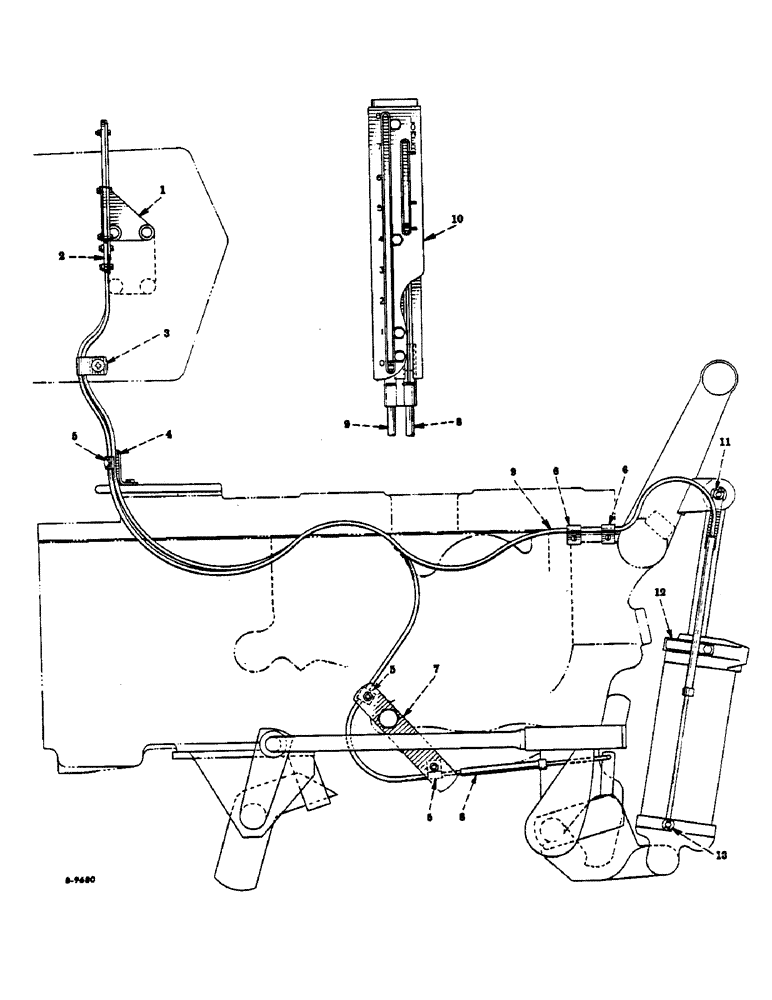

Запчасти Case IH 300 (345) - ATTACHMENTS, PILOT GUIDE, FOR TRACTORS WITH FAST-HITCH WITH TRACTION CONTROL Attachments

1

367205R1

BRACKET, mounting, pilot guide

1шт.

2

367210R1

RETAINER, pilot guide cable

1шт.

367264R91

NUT, hex., No. 10-32 NF, w/external-tooth washer

2шт.

367260R1

SCREW, mach., hex-hd., No. 10-32 NF x 3/4"

2шт.

3

367527R1

CLIP, cable retainer

1шт.

4

367529R1

SUPPORT, cable clamp, upper

1шт.

5

367214R1

CLAMP, cable

3шт.

368080R91

NUT, hex., 1/4-20 NC, w/external-tooth washer

3шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

6

368530R1

CLIP, depth indicator cable, rear

2шт.

7

368528R1

SUPPORT, cable clamp, lower

1шт.

271600

SPARE PART

SCREW, cap, hex-hd., 3/4-10 NC x 3/4"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

8

368526R91

CABLE, traction control, assembly

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, cotter, 1/16" x 1/2"

1шт.

9

368524R91

CABLE, depth indicator, assembly

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, cotter, 1/16" x 1/2"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

367201R11

GUIDE, pilot, w/367264R91 nut, 367260R1 screw and 446152 washer

1шт.

367264R91

NUT, hex., No. 10-32 NF, w/external-tooth washer

3шт.

367260R1

SCREW, mach., hex-hd., No. 10-32 NF x 3/4"

3шт.

395-31022

WASHER,#10

plain, 13/64" ID x 15/32" OD x .49" thick

1шт.

11

22777V

SPACER, piston rod

1шт.

12

368529R1

CLIP, cable storage

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

368527R1

STUD, depth indicator cable, shoulder

1шт.

95-11034

WASHER,1/4"

plain, 11/32" ID x 11/16" OD x .065" thick

1шт.
