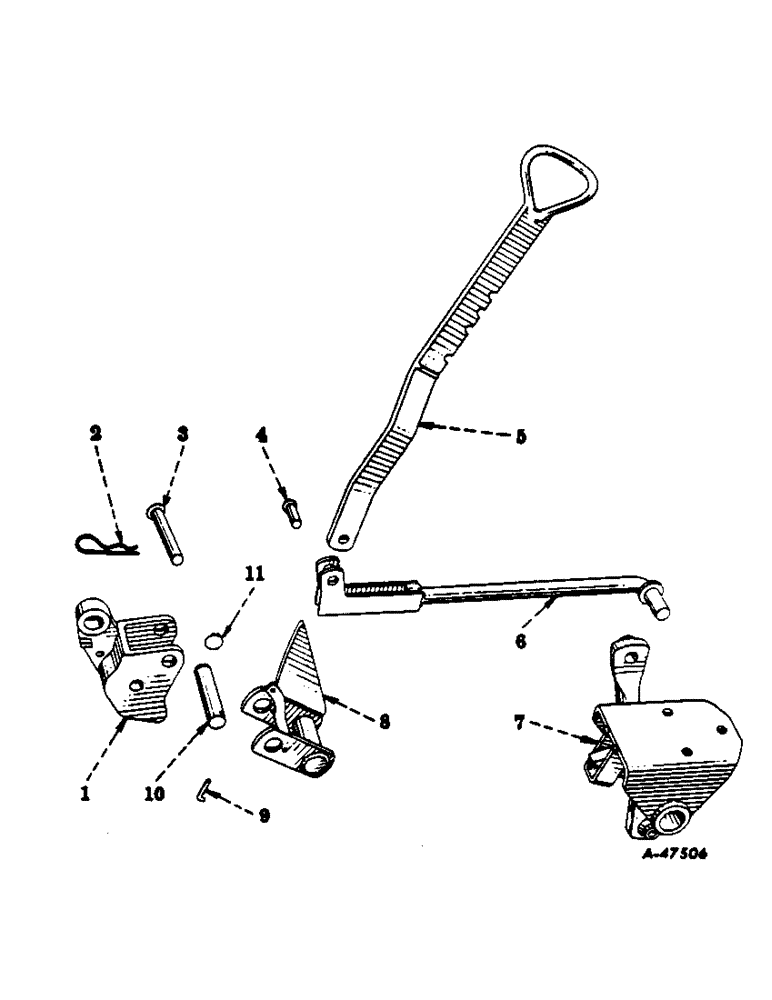

Запчасти Case IH 300 (344) - ATTACHMENTS, FAST-HITCH WITH TRACTION CONTROL, SPECIAL, TRACTION CONTROL Attachments

1

523163R1

BELLCRANK, cylinder, traction control

1шт.

2

520175R1

CLIP

PIN, cotter, quick-attachable (in drawbar lockout pin)

1шт.

3

523114R1

PIN,19.05mm OD x 93.66mm L

traction control lockout

1шт.

4

522747R1

PIN

traction control lever

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), 3/16" x 1"

1шт.

5

522749R11

HANDLE, adjusting, traction control

1шт.

6

522737R91

LINK, traction control

1шт.

Q3481

WASHER

plain, 1/32" ID x 1-1/2" OD x No. 16 ga.

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2" 1/4" x 1 1/2"

1шт.

7

522755R92

BRACKET

ball pivot

1шт.

523433R1

BOLT

SCREW, cap, hex-hd. (bellcrank and pivot bracket)

3шт.

523438R1

WIRE, lock

1шт.

8

522746R91

CAM, bracket, assembly

1шт.

9

523111R1

ROD

PIN, lock, traction control cylinder bellcrank

1шт.

10

523165R1

SHAFT, pivot, traction control

1шт.

11

522861R1

RING

snap, traction control pivot shaft

1шт.
