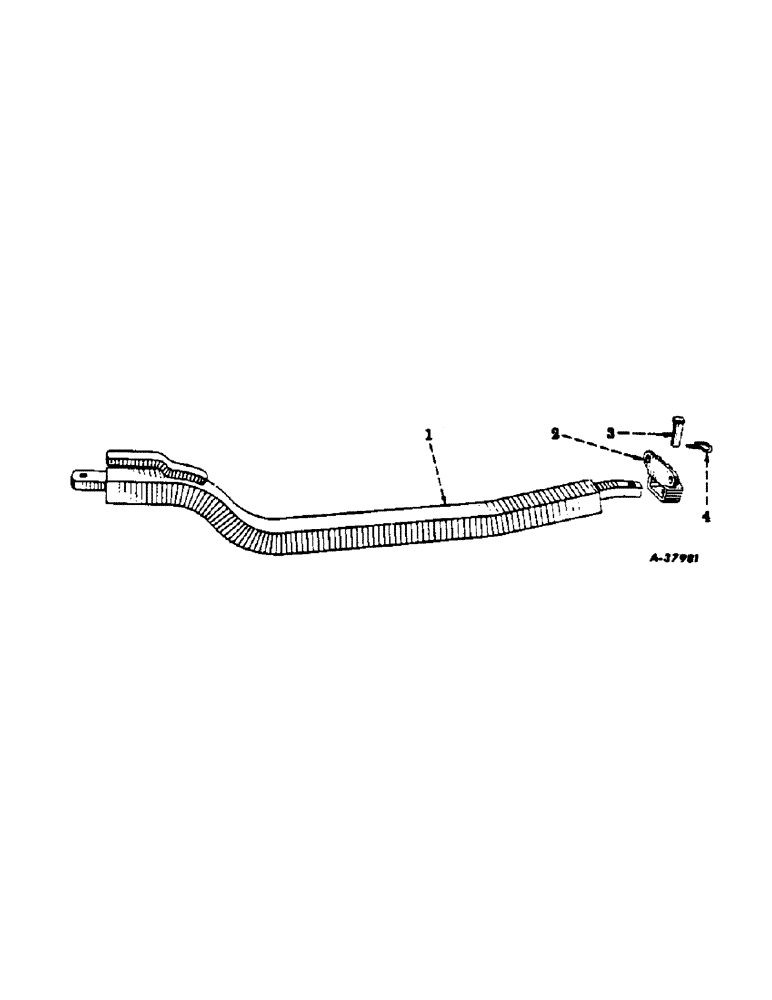

Запчасти Case IH 300 (328[A]) - ATTACHMENTS, SWINGING DRAWBAR, SPECIAL Attachments

363416R91

ATTACHMENT, swinging drawbar

1шт.

1

363417R91

DRAWBAR, swinging

1шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10 NC (see note)

2шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd, 3/4-10 NC x 2" (see note)

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, (See note) 3/4"

2шт.

2

363414R91

BRACKET, swinging drawbar

1шт.

3

363415R1

PIN

pivot, swinging drawbar

1шт.

4

PO18499

COTTER PIN

cotter, quick attachable

1шт.
