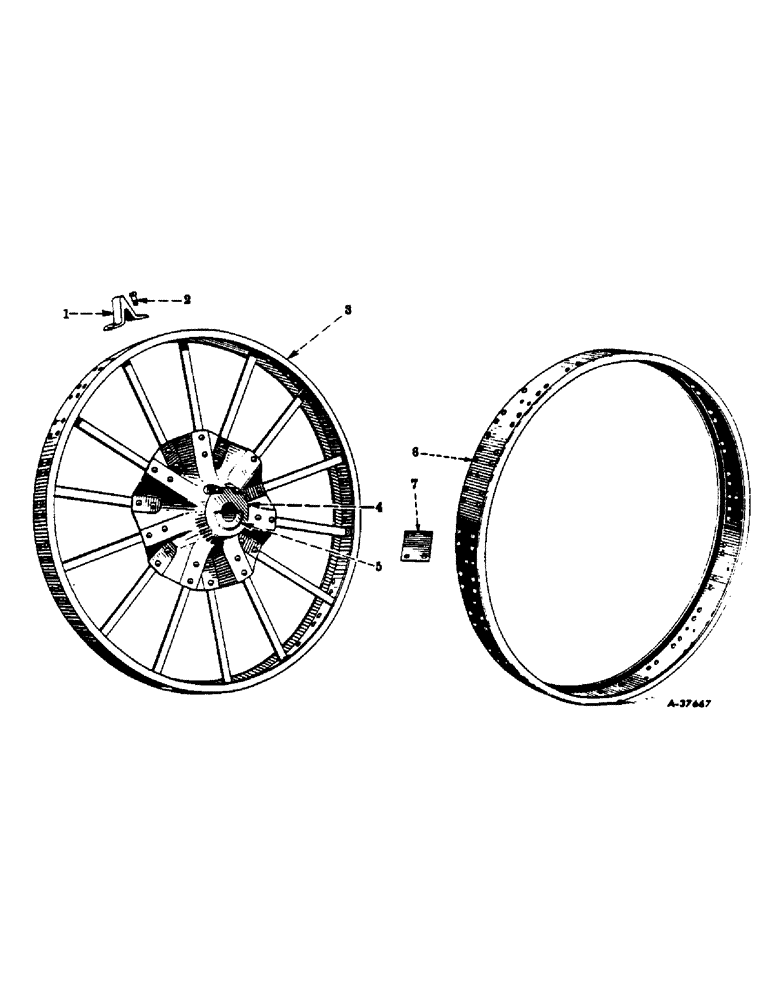

Запчасти Case IH 300 (244) - CHASSIS, REAR WHEELS, STEEL, EXTENSION TIRES, AND LUGS, SPECIAL, REAR WHEEL LUGS (12) - CHASSIS

1

57459DA

LUG, spade (5" high x 3" wide) (A only)

56шт.

(B only)

28шт.

1

66075D

LUG, spade (4" high x 3" wide) (A only)

56шт.

(B only)

28шт.

2

63137D

BOLT, spade lug (A only)

112шт.

(B only)

56шт.

102639

NUT,5/8"-11, G5

(A only) 5/8"-11, G5

112шт.

(B only)

56шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (A only) 5/8"

112шт.

(B only)

56шт.

354168R91

ATTACHMENT, steel rear wheel (note A)

1шт.

3

66073DB

WHEEL, rear, w/hub, 9555DBX, rivets, and spokes (51" dia. x 8" face), steel

2шт.

4

9555DBX

HUB, rear wheel, assembly (composed of (1) clamp 9554DB, (1) hub 9555DB (NSS), (4) screw 363656R1, (4) washer 103327, (4) washer PO 12898), steel

2шт.

5

9554DB

CLAMP, rear wheel hub, steel

2шт.

363656R1

SCREW, rear wheel hub clamp, steel

8шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, , Rear wheels, steel 7/8"

8шт.

PO12898

WASHER

plain, 29/32" ID x 1-1/2" OD x no 11 ga, rear wheels, steel

8шт.

49637D

SCREW, fifth speed lockout (illustrated with "transmission), rear wheels, steel

1шт.

66335D

WRENCH, double end socket (illustrated with "tools and tool box"), rear wheels, steel

1шт.

49236DB

PARTS ACCESSORY, rear wheel extension tire (for tractors equipped with steel rear wheels)

1шт.

6

49212DB

TIRE, rear wheel extension

2шт.

7

57172D

PLATE, fastening, rear wheel extension tire

14шт.

13319R1

BOLT, machine, sq-hd., 5/8-11NC x 1-3/4", extension tire

28шт.

102639

NUT,5/8"-11, G5

Extension tire 5/8"-11, G5

28шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, , Extension tire 5/8"

28шт.
