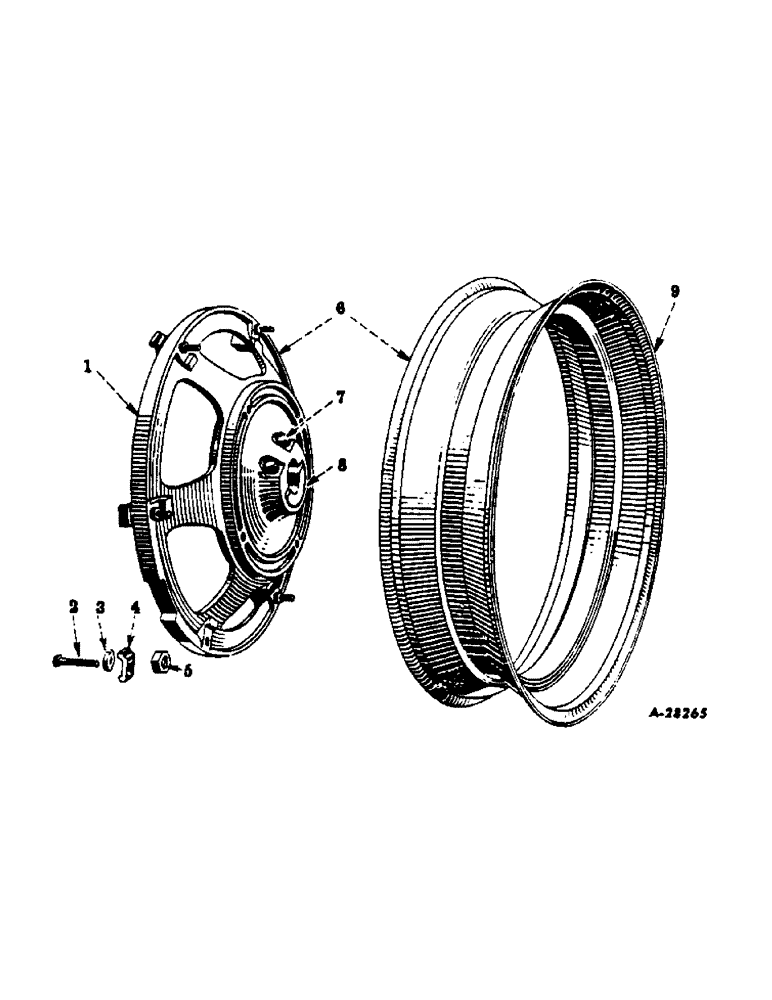

Запчасти Case IH 300 (239) - CHASSIS, REAR WHEELS, PNEUMATIC TIRES, FARMALL 300, 501 TO 3726 (12) - CHASSIS

1

6194DD

WHEEL, rear

2шт.

362729R1

BOLT,3/4" - 10 x 4 1/4"

SCREW, cap, rear wheel hub clamp

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

Q3478

WASHER

plain, 25/32" ID x 1-1/4" OD x no 14 ga

8шт.

2

48985DA

BOLT,Wheel, 5/8" - 11 x 4 1/4"

rear wheel rim clamp

12шт.

3

351833R1

NUT

jam, rear wheel rim mounting

12шт.

4

48984D

CLAMP

rear wheel rim

24шт.

5

351832R1

NUT

rear wheel rim mounting

12шт.

6

355025R91

WHEEL, rear, w/DW10-38 rim, assembly (composed of (6) bolt 48985DA, (1) clamp 6192DC, (12) clamp 48984D, (6) nut 351832R1, (6) nut 351833R1, (1) rim 55563D, (4) screw 362729R1, (4) washer 103326, (4) washer Q3478, (1) wheel 6194DD)

2шт.

6

355027R91

WHEEL, rear, w/DW11-38 rim, assembly (composed of (6) bolt 48985DA, (1) clamp 6192DC, (12) clamp 48984D, (6) nut 351832R1, (6) nut 351833R1, (1) rim 55564D, (4) screw 362729R1, (4) washer 103326, (4) washer Q3478, (1) wheel 6194DD)

2шт.

7

362729R1

BOLT,3/4" - 10 x 4 1/4"

Follows reference no. 1

1шт.

8

6192DC

CLAMP

rear wheel hub

2шт.

9

55563D

RIM

rear wheel (DW10-38 rim for 10-38, 11-38 or 12-38 or 13-38" tire)

2шт.

9

55564D

RIM, rear wheel (DW11-38 rim for 12-38 or 13-38" tire)

2шт.
