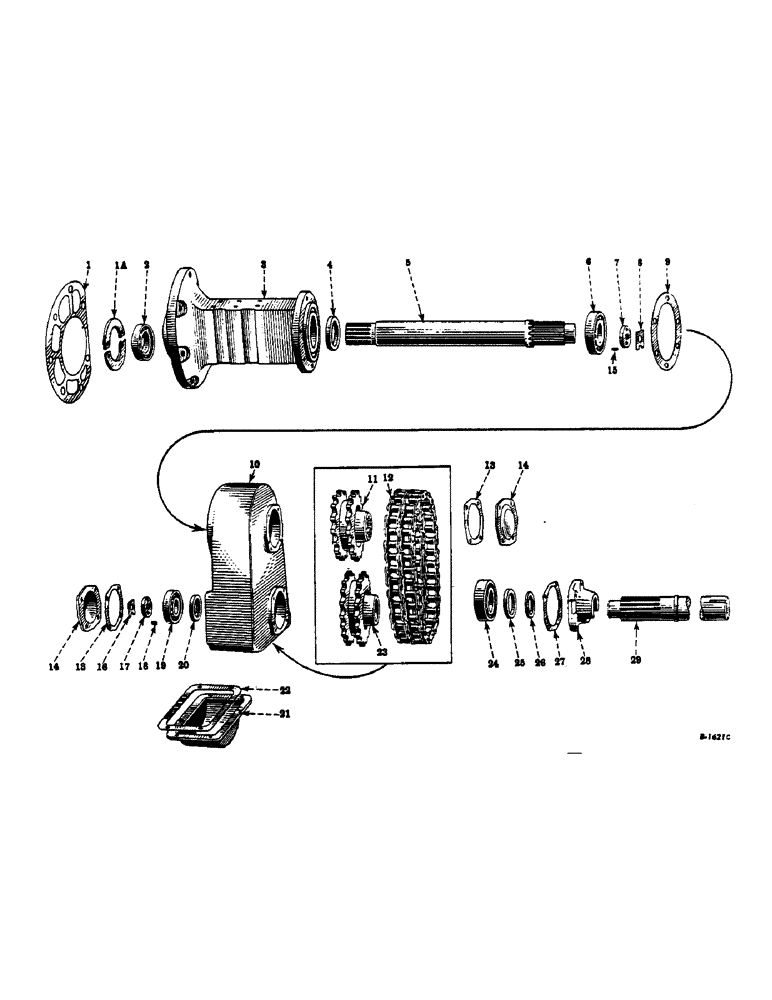

Запчасти Case IH 300 (237) - CHASSIS, REAR AXLE, FOR HI-CLEAR TRACTORS (12) - CHASSIS

1

360543R1

GASKET

rear axle housing carrier

2шт.

1a

360545R1

SUPPORT

RETAINER, rear axle drive sprocket shaft inner ball bearing

4шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1"

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

2

ST218

BEARING

ball (drive sprocket shaft, inner)

2шт.

3

360546R1

CARRIER, rear axle housing, L H

1шт.

3

360547R1

CARRIER, rear axle housing, R H

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2" (used on L H housing)

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2-1/4"

6шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2-1/2" (5 used on L H housing)

7шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

13шт.

4

658137R91

OIL SEAL, rear axle drive sprocket shaft

2шт.

5

360548R1

SHAFT, rear axle drive sprocket

2шт.

6

ST229

BALL BEARING,130 mm OD x 31 mm

BEARING, ball (drive sprocket shaft, outer)

2шт.

7

64228DX

WASHER, retainer, rear axle drive sprocket shaft bearing, outer, w/pin, 33659D

2шт.

181505

SCREW, cap, hex-hd., 3/4-16NF x 1-1/2"

2шт.

8

63206D

LOCK WASHER

LOCK, rear axle drive sprocket shaft bearing (outer) retainer washer

2шт.

9

64938D

GASKET, rear axle housing

2шт.

10

350345R11

HOUSING, rear axle, w/plug, 103870 and plug, 103876

2шт.

103870

PLUG, pipe, sq-hd., C.I., 1"

2шт.

103876

PLUG, pipe, sq-socket, C.I., 1"

2шт.

11

64936D

SPROCKET, drive, rear axle (17 teeth)

2шт.

12

354005R91

CHAIN (AG)

CHAIN, drive, rear axle (consists of 32 roller links with one connecting link)

2шт.

13

64939D

GASKET

rear axle housing cover

4шт.

14

9488D

COVER, rear axle housing

4шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

16шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

15

33659D

PIN, rear axle drive sprocket shaft bearing (outer) retainer washer

2шт.

16

63206D

LOCK WASHER

LOCK, rear axle bearing (inner) retainer washer

2шт.

17

67399DX

WASHER, rear axle ball bearing (inner) retainer, w/pin, 33659D

2шт.

181505

SCREW, cap, hex-hd., 3/4-16NF x 1-1/2"

2шт.

18

33659D

PIN, rear axle bearing (inner) retainer washer

2шт.

19

ST220

BALL BEARING,39.83mm ID x 110mm OD x 27mm W

BEARING, ball (rear axle, inner)

2шт.

20

65073D

SPACER, rear axle bearing

2шт.

21

350346R11

PAN, rear axle housing, w/plug, 103879

2шт.

103879

PLUG, pipe, sq-hd., stl., 3/8"

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

8шт.

NLS

NO LONGER SERVICED

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

22

350347R1

GASKET

rear axle housing pan

2шт.

23

65074DA

SPROCKET, rear axle (18 teeth)

2шт.

24

73653R91

BEARING ASSY,75 mm ID x 130 mm OD x 1.628"

ball (rear axle, outer)

2шт.

25

360457R91

SEAL

OIL SEAL, rear axle (will work for 361025R91)

2шт.

26

45085D

SEALING WASHER

WASHER, felt, rear axle

2шт.

27

65076D

GASKET

rear axle housing cap

2шт.

28

9490DXA

HOUSING

CAP, rear axle housing, w/oil seal, 360457R91, and washer, 45085D

2шт.

179887

CABLE

SCREW, cap, hex-hd., 1/2-13NC x 1-3/4"

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

29

64954DC

AXLE, rear

2шт.

354003R91

LINK, connecting, rear axle drive chain

1шт.

354004R91

LINK, roller, rear, axle drive chain

1шт.
