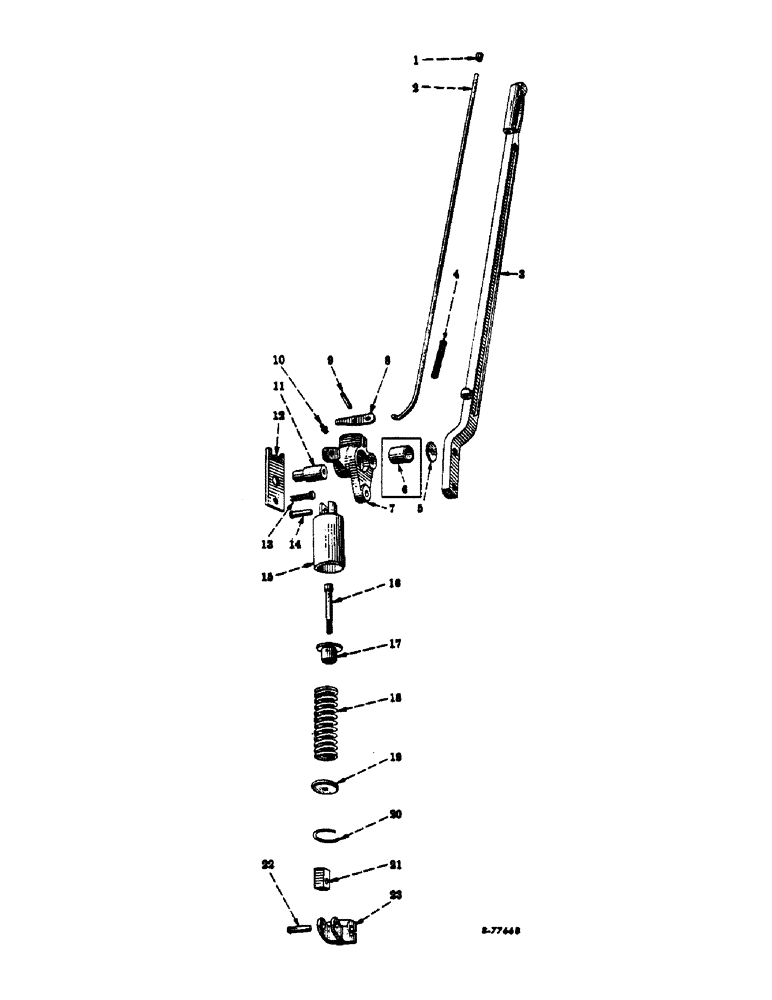

Запчасти Case IH 300 (314) - ATTACHMENTS, INDEPENDENT POWER TAKE-OFF, SPECIAL, LEVER AND CONNECTIONS Attachments

1

359108R2

KNOB

pawl operating rod

1шт.

17072R1

LOCK PIN,1/16" x 1/2", Slotted

PIN, roll, 1/16 x 1/2" (used to attach knob with hole)

1шт.

2

362186R3

ROD, pawl operating (to replace a rod which has a knob that is retained with a roll pin, order package, 365380R91)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

131402H

WASHER

plain, 11/32" ID x 9/16" OD x no 16 ga

2шт.

3

362188R21

HANDLE, operating

1шт.

413-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

SCREW, cap, hex-hd., 9/16-12NC x 1-3/4"

2шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

2шт.

4

359109R2

VALVE SPRING

SPRING, pawl operating rod

1шт.

5

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

wear, operating handle shaft

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, cap, hex-hd.,3/8-16NC x 3-1/2"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

360177R1

BUSHING

operating handle (used only with hub, 360176R1)

1шт.

7

360176R2

HUB, operating handle

1шт.

8

359112R1

PAWL

operating handle

1шт.

9

359111R1

PIN, operating handle pawl

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Operating handle shaft) (optional with 119512) 1/8"-27 x .66 lg

1шт.

10

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (operating handle shaft) (optional with 109461)

1шт.

11

360152R1

SHAFT, operating handle

1шт.

12

360178R2

SECTOR

QUADRANT, operating handle

1шт.

13

359114R1

BOLT, operating handle quadrant

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

14

359100R1

PIN, spring sleeve

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

15

359091R11

SLEEVE, spring, w/bolt

1шт.

16

359092R1

BOLT

spring anchor

1шт.

17

359093R11

PLUG, spring retainer, w/pin, 17071R1

1шт.

17071R1

PIN, roll, 1/8 x 5/16"

1шт.

18

359094R2

SPRING, brake band actuator

1шт.

19

359095R1

PLATE, spring retainer

1шт.

20

359096R1

RING, snap, spring sleeve

1шт.

21

359097R1

BLOCK, bottom spring anchor

1шт.

22

359100R1

PIN, primary brake band operating lever

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

23

359099R1

LEVER, primary brake band operating

1шт.

271505

BODY

hex., 7/16-20NF

1шт.

181406

BOLT,Hex, 7/16" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 2"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

365380R91

ROD

PACKAGE, service pawl operating rod (consists of knob, 359108R2 and rod, 363295R2) (will work for rod which has a knob that is retained with a roll pin)

1шт.
