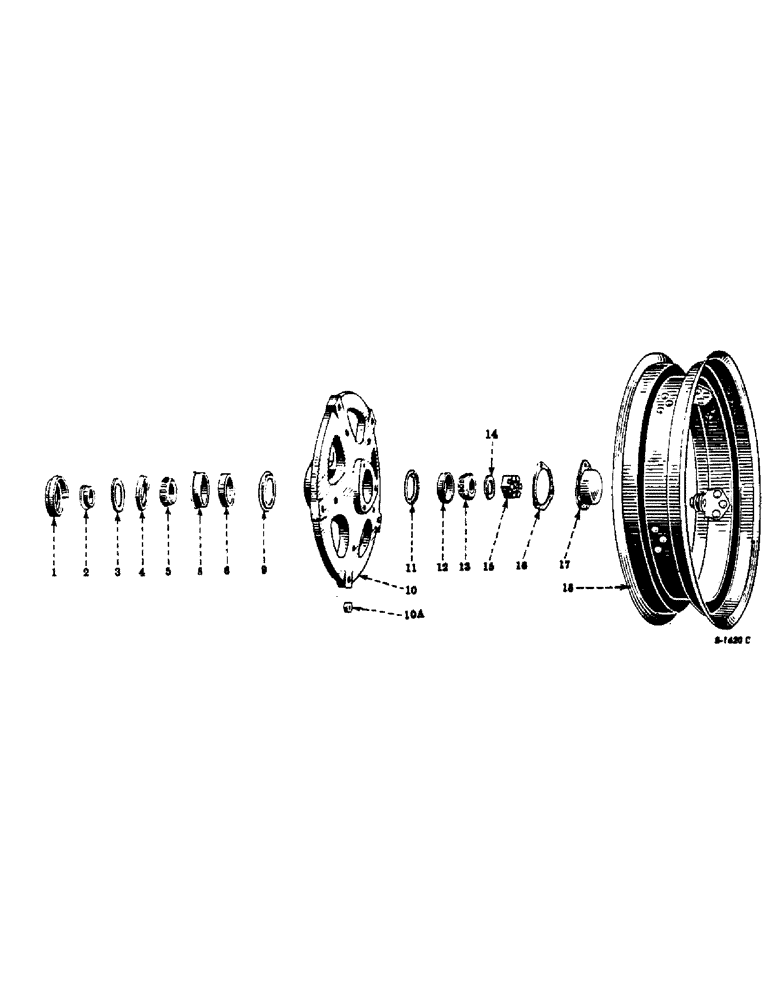

Запчасти Case IH 300 (226) - CHASSIS, FRONT WHEELS, PNEUMATIC TIRES, FOR HI-CLEAR TRACTORS (12) - CHASSIS

354987R92

WHEEL, front, w/rim, assembly (see note B) (composed of (1) gasket 58547D, (5) nut 352777R1, (1) rim 65167D, (5) screw 271750, (5) washer 121574, (5) washer 103345, (1) wheel 9504DXB)

2шт.

1

48701D

SHIELD

dust, front wheel

2шт.

2

51901D

SPACER

front wheel bearing

2шт.

3

48702D

WASHER,57.15mm ID x 82.55mm OD x 4.76mm Thk

felt, front wheel (not used with triple lip design oil seals, 48704DA and 367161R91)

2шт.

4

48704DA

OIL SEAL

OIL SEAL, front wheel (optional with 367161R91)

2шт.

4

367161R91

OIL SEAL

front wheel (optional with 48704DA)

2шт.

5

ST781A

TAPERED BEARING,42.88mm ID x 22.48mm W

CONE, tapered roller bearing (front wheel inner)

2шт.

6

ST882

CUP

tapered roller bearing (front wheel inner)

2шт.

8

48703D

RETAINER

front wheell felt washer

2шт.

9

60290DA

RETAINER

grease, front wheel bearing, inner

2шт.

10

9504DXB

WHEEL, front, assembly (see note B) (composed of (1) cup 451495R1, (1) cup ST882, (1) retainer 48703D, (1) retainer 48703D, (1) retainer 60290DA, (1) retainer 60291D, (1) wheel 9504D (NSS)

2шт.

414-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

SCREW, cap, hex-hd., cd-pltd., 5/8-18NF x 2-1/2"

10шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

plain, 21/32" ID x 1-5/16" OD x no 13 ga

10шт.

10a

352777R1

NUT

front wheel rim mounting, cd-pltd

10шт.

11

60291D

RETAINER

grease, front wheel bearing, outer

2шт.

12

ST889

CUP, front wheel outer roller bearing, Farmall 300 hi-clear series, Farmall 350 hi-clear series, Serial Range: 501-1117

2шт.

12

451495R1

BEARING ASSY,1.125" ID x 73 mm OD x 17.5 mm

CUP, front wheel outer roller bearing (optional with 456200R1) Farmall 350 hi-clear seies, 1118 up

2шт.

12

456200R1

CUP

front wheel outer roller bearing (optional with 451495R1), Farmall 350 hi-clear series 1118 up

2шт.

13

ST771A

ROLLER BEARING,34.92mm ID x 23.9mm W

CONE, front wheel outer roller bearing, Farmall 350 hi-clear series, Farmall 350 hi-clear series

2шт.

13

365433R91

BEARING

CONE, front wheel outer roller bearing (optional with 367836R91) Farmall 350 hi-clear series, 1118 up

2шт.

13

367836R91

CONE

front wheel outer roller bearing (optional with 365433R91), Farmall 350 hi-clear series, 1118 up

2шт.

14

353838R1

WASHER

WASHER, front wheel outer bearing retainer

2шт.

15

361138R1

NUT

front wheel bearing retainer

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

16

48547S

GASKET, front wheel hub cap

2шт.

17

48546DB

CAP

front wheel hub (sheet steel)(will work for 365127R1)

2шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

17

CAP, front wheel hub (gray iron) (order 48564DB)

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

18

65167D

RIM, front wheel (4.50E, 20 DC for 6.00-20 tire)

2шт.

361295R91

PACKAGE

overhaul, front wheel bearing (consists of (1) cone 365433R91, (1) cone ST781A, (1) cup 451495R1, (1) cup ST882, (1) gasket 48547D, (1) oil seal 48704DA, (1) retainer 48703)

1шт.
