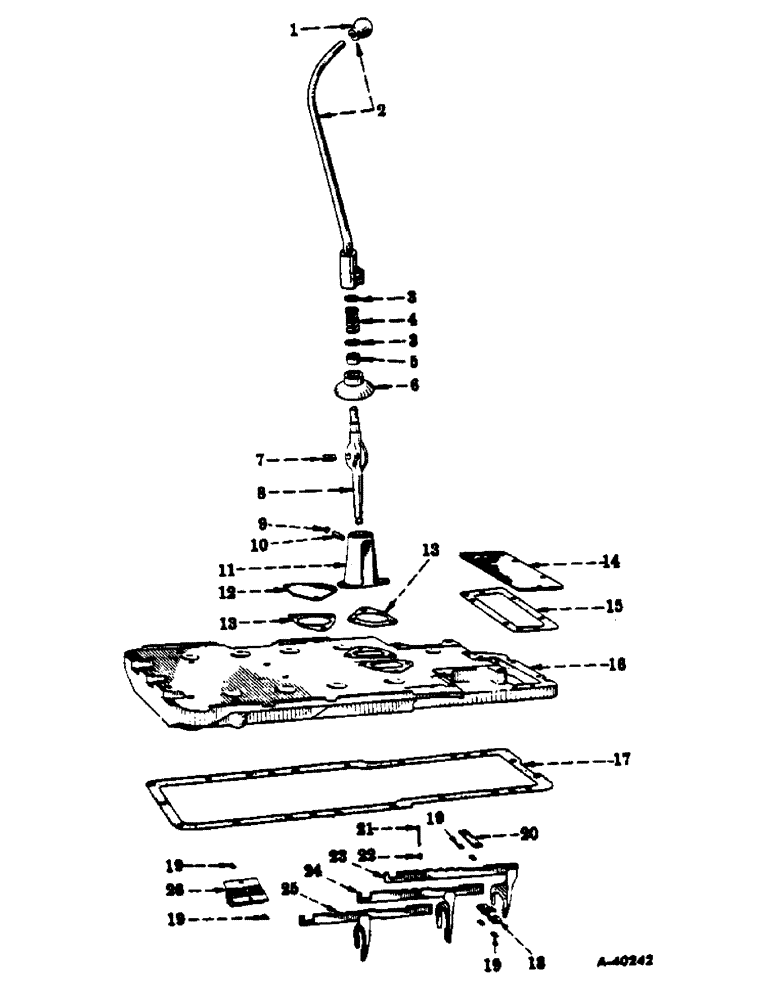

Запчасти Case IH 300 (211) - CHASSIS, GEAR SHIFT MECHANISM, REVERSE OPERATION, AND REAR FRAME COVER (12) - CHASSIS

1

53717DA

BUTTON

KNOB, gear shift lever

1шт.

2

364387R91

HANDLE, gear shift lever (reverse operation) w/clamp and knob, 53717DA

1шт.

271505

BODY

hex., 7/16-20NF

1шт.

181403

SCREW,Hex, 7/16" - 20 x 1 3/4"

cap, hex-hd., 7/16-20NF x 1-3/4"

1шт.

3

1657E

STOP

WASHER, plai, 57/64" ID x 1-1/4" OD x no 13 ga (gear shift lever end spring stop)

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

4

29547D

SPRING

gear shift lever

1шт.

5

20887DA

BUSHING, gear shift lever swivel housing shield

1шт.

6

355889R2

SHIELD

gear shift lever swivel housing (aluminum) (will work for 42496DXA)

1шт.

7

256918R11

DOWEL

SHAFT, gear shift swivel, large, w/two plug, 172529 (will work for 40465DA)

1шт.

8

364162R1

LEVER

END, gear shift lever

1шт.

9

172529

PLUG

expansion, 5/8"

2шт.

10

256919R11

HITCH PIN

SHAFT, gear shift swivel, small, w/two plug, 172529 (will work for 357003R1)

1шт.

11

361569R21

HOUSING, gear shift swivel, w/two plug, 172529

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

12

361802R1

COVER, gear shift opening

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

13

361687R1

GASKET

gear shift swivel housing or opening cover

2шт.

14

49618DA

BAR

COVER, belt pulley drive opening (sheet steel) (will work for 365129R1) (note B)

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1" (note B)

2шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4" (note B)

4шт.

14

COVER, belt pulley drive opening (gray iron) (order 49618DA) (note B)

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4" (note B)

2шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/2" (note B)

4шт.

15

49619DB

GASKET

pulley drive opening cover

1шт.

16

361921R31

COVER, rear frame, w/two screw, 179837 and two washer, 103321

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Note D) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

179870

BOLT,Hex, 7/16" - 14 x 3", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3" (8 used, note C)

6шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 3" (2 used, note C)

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (Note D) 3/8"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (8 used, note C) 7/16"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (2 used, Note C) 1/2"

4шт.

17

360556R2

GASKET

rear frame cover

1шт.

18

358888R91

GUIDE

gear shift rail, front

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

19

59473D

LOCK

shift rail guide bolt and stop plate bolt

6шт.

20

48391D

PLATE, stop, gear shift rail

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

21

41058DA

SPRING

gear shift poppet

4шт.

22

D2616

BALL

chrome stl., 1/2" (gear shift poppet) (optional with 13722D)

4шт.

22

13722D

BALL

chrome stl., 1/2" (gear shift poppet) (optional with D2616)

4шт.

23

364320R11

FORK AND RAIL, fourth and fifty speed shift

1шт.

24

364318R91

FORK AND RAIL, second and third speed shift

1шт.

25

364317R91

FORK AND RAIL, first and reverse speed shift

1шт.

26

355739R92

GUIDE

gear shift rail, rear

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.
