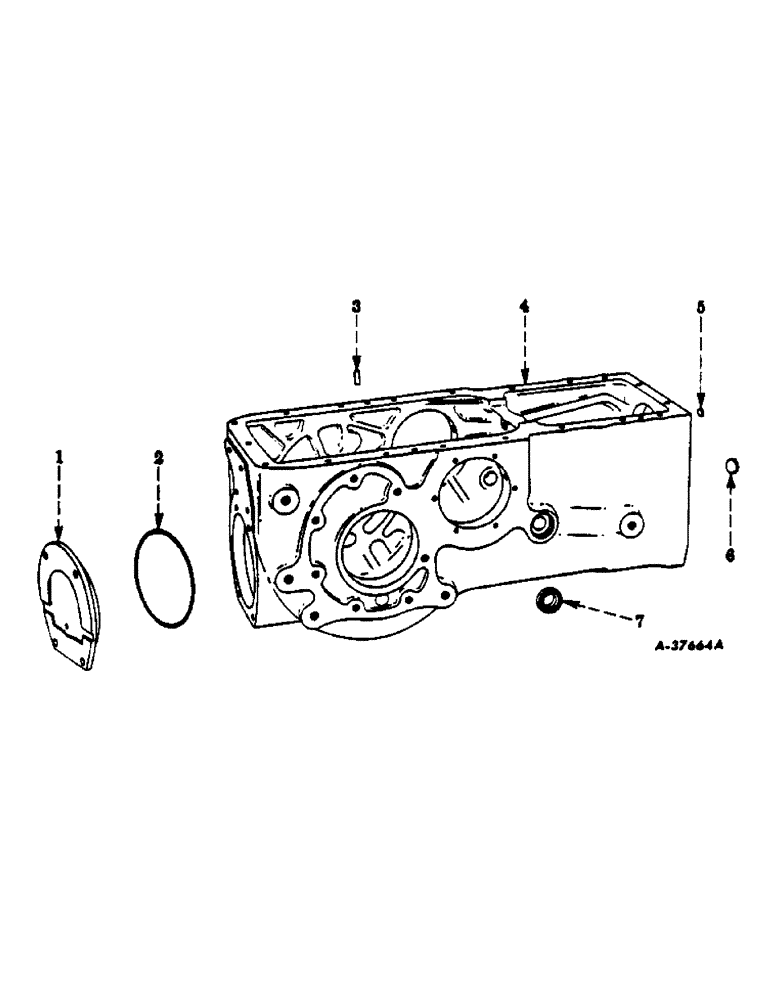

Запчасти Case IH 300 (201) - CHASSIS, REAR FRAME (12) - CHASSIS

1

358841R11

COVER, power take-off opening, w/ring, 358842R1 (not used on tractors equipped with power take-off)

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

hex-hd., 1/2-13 NC x 1-1/4"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

2

358842R1

RING

seal, power take-off opening cover

1шт.

3

48651D

DOWEL, rear frame cover

3шт.

4

360552R95

FRAME, rear, assembly (will work for 361798R91) (composed of (3) dowel 48651D, (1) frame 360553R3 (NSS), (2) oil seal 581646R91, (1) plug 103879, (1) plug 103868, (1) plug 103870, (1) plug 361314R1, (1) plug 45361D)

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, C.I. Sq Hd, 1/2"-14 NPTF

1шт.

103870

PLUG, pipe, sq-hd., CI, 1"

1шт.

103879

PLUG, pipe, sq-hd., stl., 3/8"

1шт.

5

45361D

PLUG

cup, vent hole (not used on tractors equipped with independent power take-off drive or torque amplifier)

1шт.

6

361314R1

PLUG, cup, reverse idler shaft (not used on tractors equipped with independent power take-off drive or torque amplifier)

1шт.

7

581646R91

SEAL

OIL SEAL, brake operating shaft (will work for 360076R92)

2шт.
