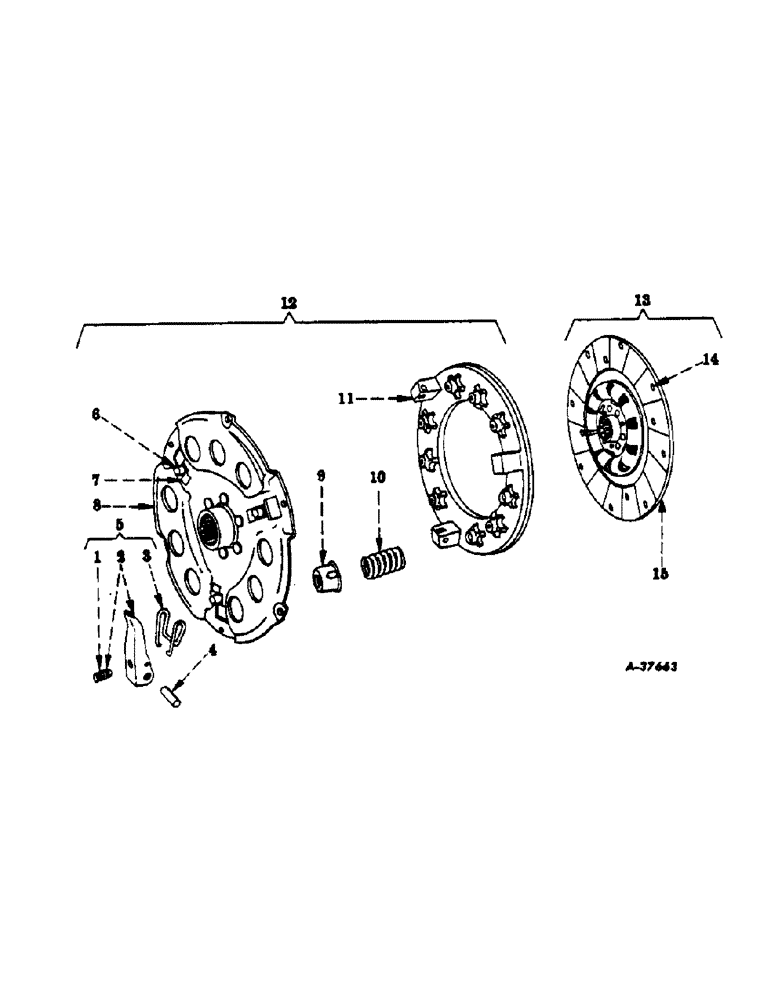

Запчасти Case IH 300 (189) - CHASSIS, CLUTCH, 10-1/2 INCH, ROCKFORD (12) - CHASSIS

1

353319R1

SCREW, adjusting, lever

3шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

3шт.

2

360822R91

LEVER

release, clutch, w/nut, 272121 and screw, 353319R1

3шт.

3

366465R1

SPRING

lever (will work for 353318R1)

3шт.

4

52846D

PIN

lever

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

5

360821R91

PACKAGE

lever, assembly (consists of (3) lever 360822R91, (3) pin 52846D, (3) pin 107762, (3) spring 366465R1)

1шт.

6

358561R1

SEAT, lever adjusting screw

3шт.

7

353313R1

CLIP

lever spring

3шт.

8

360820R92

PLATE

back, w/hub, and three clips, 353313R1, and three seats, 358561R1

1шт.

9

353316R1

SPRING CUP

CUP, clutch pressure spring

9шт.

10

52907D

SPRING

clutch pressure (white color, 9-1/2 coils, order 358593R92) (regular duty)

9шт.

10

364327R1

SPRING

clutch pressure (natural color, 7-1/8 coils, used with 360745R92) (this part number is stamped in yellow ink on the back of the pressure plate) (regular duty)

9шт.

10

358593R92

SPRING

PACKAGE, clutch pressure spring (consists of nine spring, 364327R1) (will work for nine 52907D) (regular duty)

1шт.

10

367255R91

PACKAGE, clutch pressure spring (consists of nine springs, (heavy duty)

1шт.

11

358558R1

PLATE, pressure

1шт.

12

360745R93

PLATE

pressure, clutch, assembly (optional with 360746R91) (composed of (1) package 358593R92, (1) package 360821R91, (9) cup, 353316R1, (1) plate 360820R92, (1) plate 358558R1)

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

360488R92

DISC

driven, clutch, w/facing set, 358592R11 (regular duty)

1шт.

13

367902R91

CLUTCH

DISC, driven, clutch, w/facings (heavy-duty) (not illustrated)

1шт.

14

61176V

RIVET

clutch facing

14шт.

15

358592R11

FACING

SET, clutch (consists of two facings, w/fourteen rivets, 61176V) (regular duty)

1шт.
